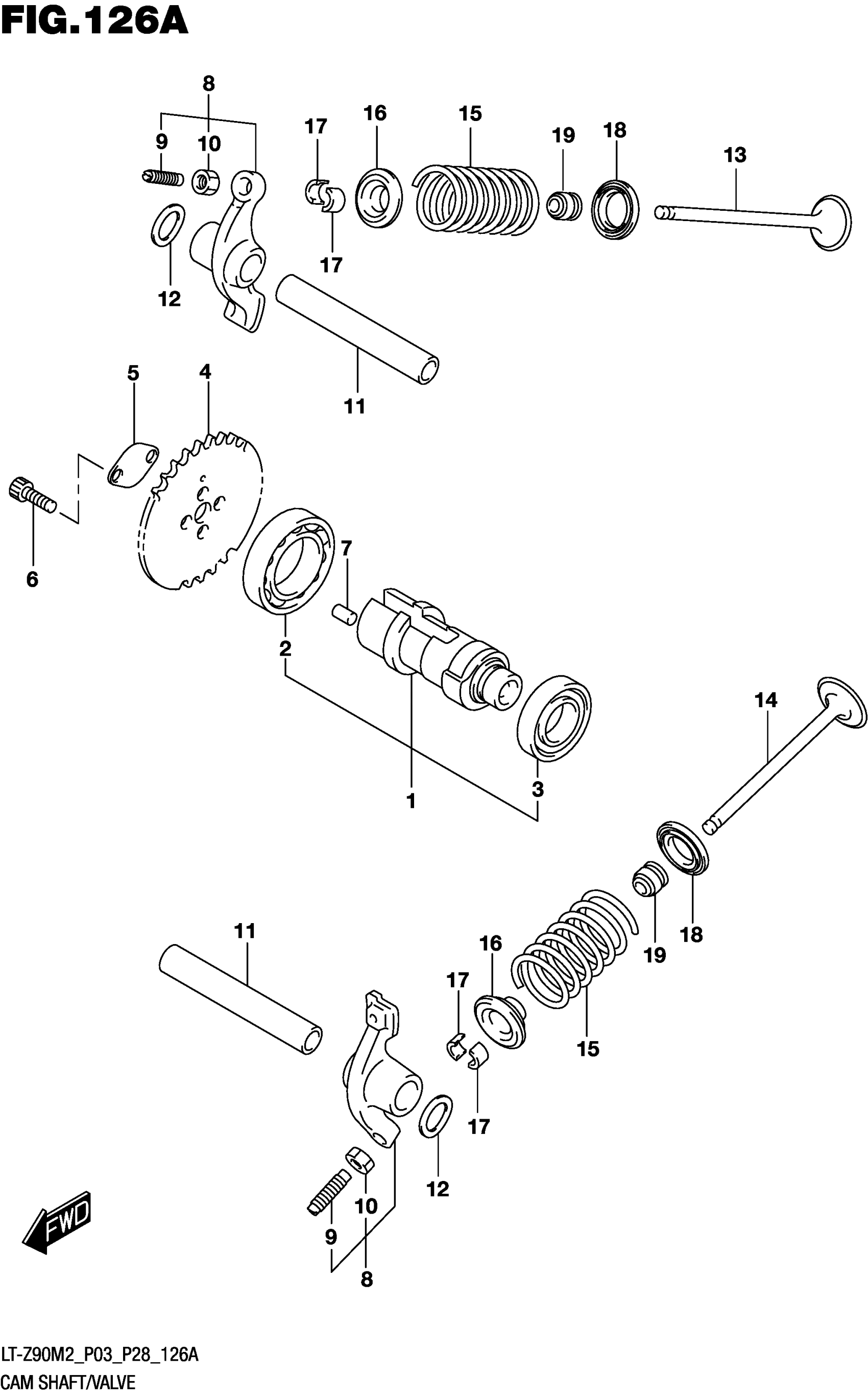

Suzuki LT-Z90M2 (2022) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-08H00

Unavailable

2

.BEARING (15X32X9)

09262-15041

Unavailable

3

BEARING

08113-69050

$35.66

4

SPROCKET,CAMSHAFT (NT:34)

12741-33G00

Unavailable

5

WASHER,SPROCKET

12714-08H00

Unavailable

6

BOLT (5X15)

09106-05028

$1.49

7

PIN (5X8)

09261-05005

$1.49

8

ARM,VALVE ROCKER

12840-33G40

Unavailable

9

.SCREW,TAPPET ADJUSTING

12842-33G40

Unavailable

10

.NUT,TAPPET ADJUSTING

12843-33G40

Unavailable

11

SHAFT,VALVE ROCKER ARM

12861-33G00

Unavailable

12

WASHER

09164-10012

Unavailable

13

VALVE,INTAKE

12911-08H10

$25.72

14

VALVE,EXHAUST

12912-08H10

$37.03

15

SPRING,VALVE

12921-28G20

Unavailable

16

RETAINER,VALVE SPRING

12931-09G10

$6.33

17

COTTER,VALVE

12932-39J10

$1.97

18

SEAT,VALVE SPRING

12933-09G10

Unavailable

19

SEAL,OIL (5X10.5X8.4)

09289-05008

$6.30
