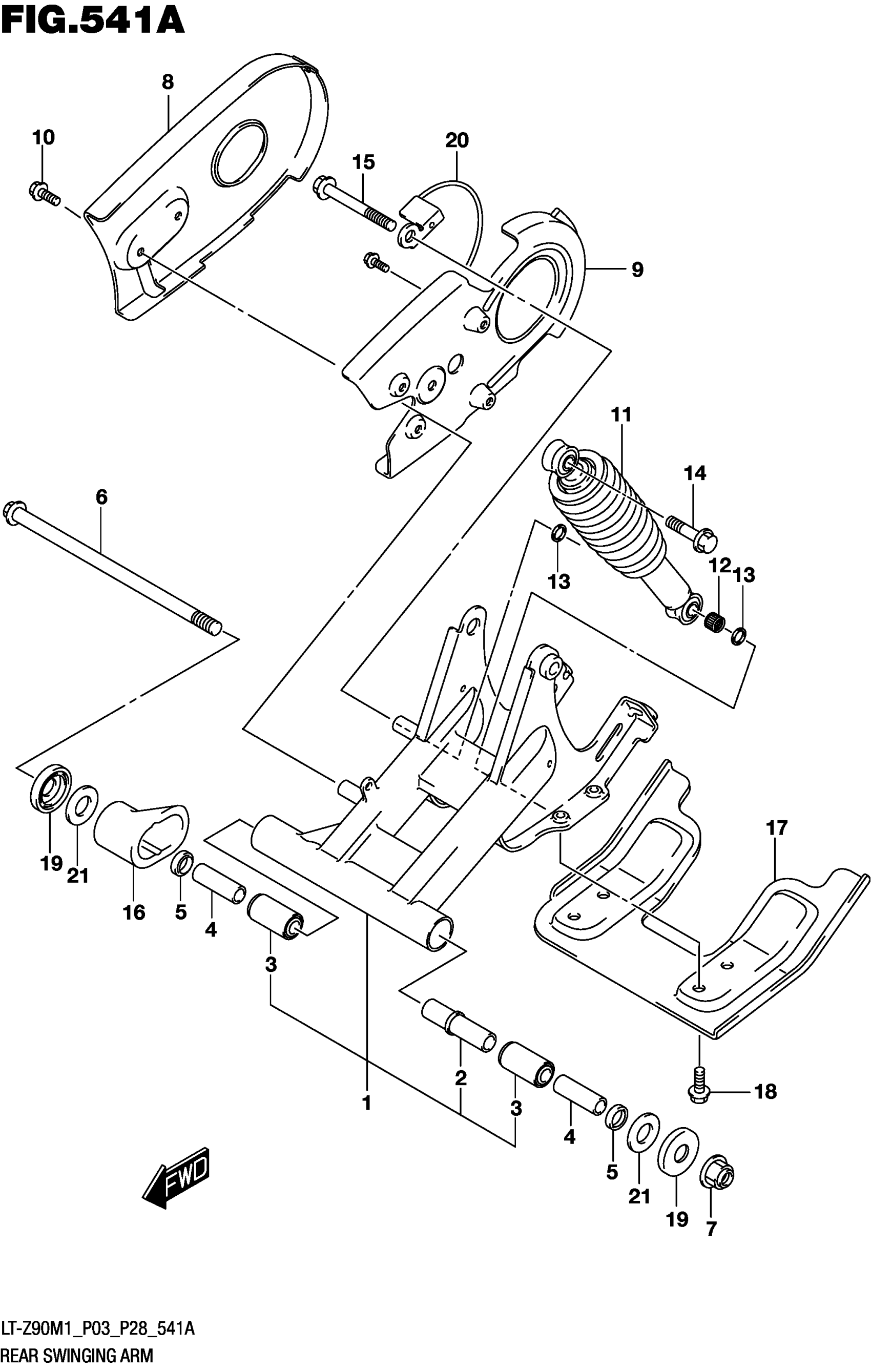

Suzuki LT-Z90M1 (2021) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-08H00-019

$1,062.68

2

.SPACER,RR SWGARM PIVOT

61280-43G00

$15.75

3

.BUSH,RR SWGARM PIVOT

61261-08H00

$16.04

4

SPACER,RR SWGARM PIVOT OUTER

61251-08H00

$28.27

5

SEAL,RR SWGARM PIVOT

61262-08H00

$5.11

6

SHAFT,RR SWGARM PIVOT

61211-08H00

$28.27

7

NUT

08319-3112A

$3.76

8

CASE,CHAIN

61311-08H00

Unavailable

9

CASE,CHAIN INNER

61313-08H00

Unavailable

10

BOLT (6X16)

09111-06066

$2.62

11

ABSORBER ASSY,RR SHOCK (RED)

62100-08H01-YKS

Unavailable

12

.BEARING (16X22X12)

09263-16033

$20.26

13

OIL SEAL (16X22X2.5)

09284-16005

$6.95

14

BOLT (10X44) | UPPER

09103-10049

$7.63

15

BOLT (12X105) | LOWER

09103-12097

Unavailable

16

BUFFER,CHAIN TOUCH DEFENSE

61273-08H00

$19.08

17

GUARD,SWGARM UNDER

61391-08H00

Unavailable

18

BOLT,8X19 (8X19)

09106-08179

$7.05

19

SEAL,DUST

61262-21D01

$13.05

20

GUIDE,CHAIN

61340-08H00

Unavailable

21

SHIM (12.5X27.8X0.8)

09181-12010

Unavailable
