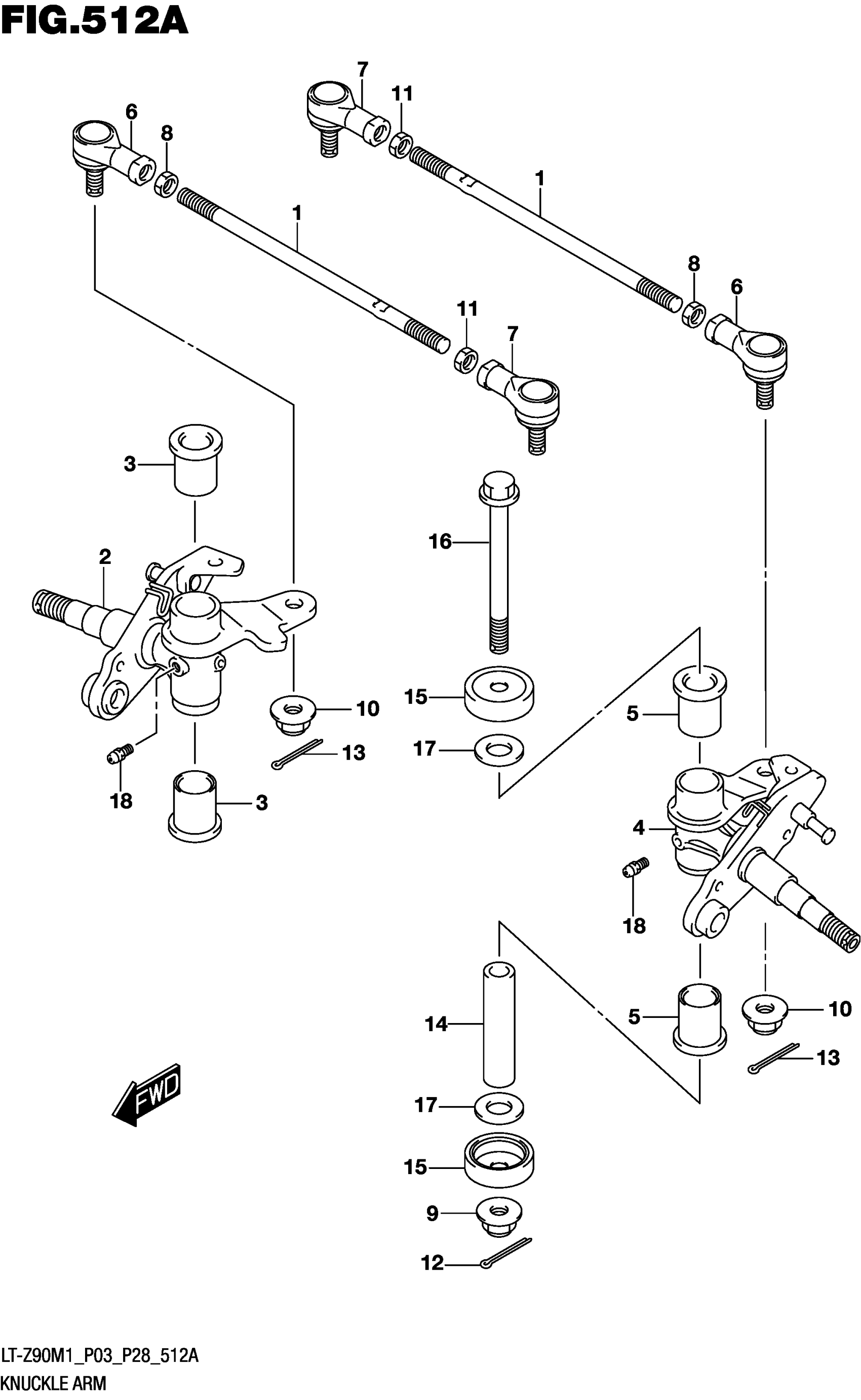

Suzuki LT-Z90M1 (2021) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-08H10

$33.25

2

ARM,KNUCKLE,R

51230-08H00

$445.83

3

.BUSH,KINGPIN

51236-40B00

$19.07

4

ARM,KNUCKLE,L

51240-08H00

$445.83

5

.BUSH,KINGPIN

51236-40B00

$19.07

6

END,ROD,R

51260-43G00

$94.35

7

END,ROD,L

51270-43G00

$96.13

8

NUT, TIE-ROD RH

51283-21G00

$4.17

9

NUT

08319-3110A

$2.73

10

NUT

08319-3110A

$2.73

11

NUT (LH THREAD)

09140-10027

$1.49

12

PIN

04111-2020A

$1.49

13

PIN

04111-2020A

$1.49

14

SPACER,KINGPIN

51251-08H00

$22.22

15

SEAL,KNUCKLE ARM DUST

51255-08H00

$10.52

16

BOLT,KNUCKLE ARM

51256-43G00

$12.53

17

WASHER

08211-10281

$2.03

18

NIPPLE,GREASE

08351-2100A

$4.68
