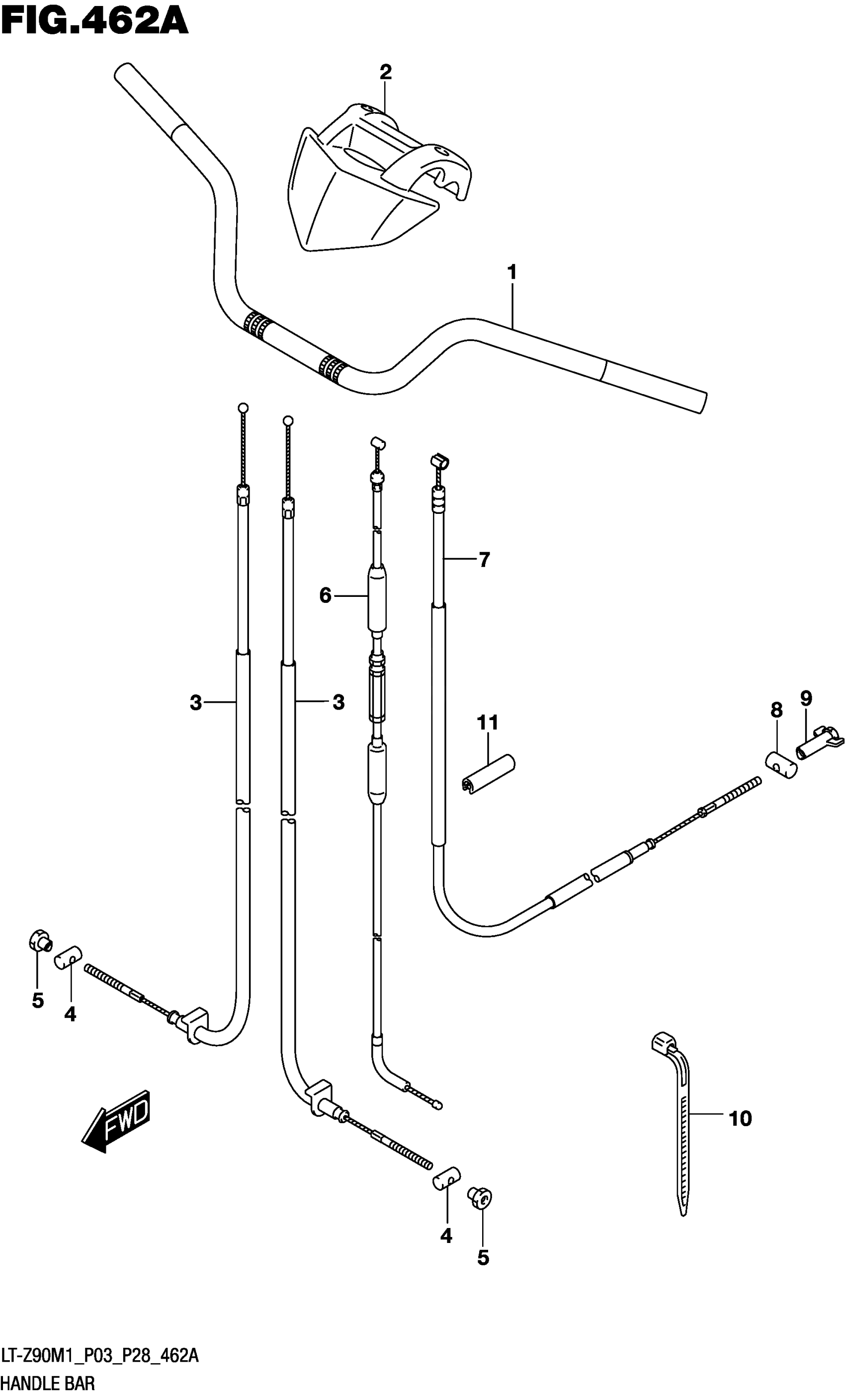

Suzuki LT-Z90M1 (2021) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-08H00-13L

$150.28

2

COVER,STEERING HEAD (BLACK)

56171-08H00-291

$48.67

3

CABLE,FRONT BRAKE

58110-08H00

$65.50

4

PIN (10X19)

09209-10001

$1.49

5

NUT

09150-05101

$3.04

6

CABLE ASSY,THROTTLE

58300-08H03

$21.72

7

CABLE,RR BRAKE This part replaces 58510-08H00.

58510-08H01

$31.01

8

PIN

09209-13006

$5.24

9

NUT

09150-06015

$3.56

10

CLAMP (L:125)

09407-14403

$2.26

11

PROTECTOR,CABLE

58627-08H00

Unavailable
