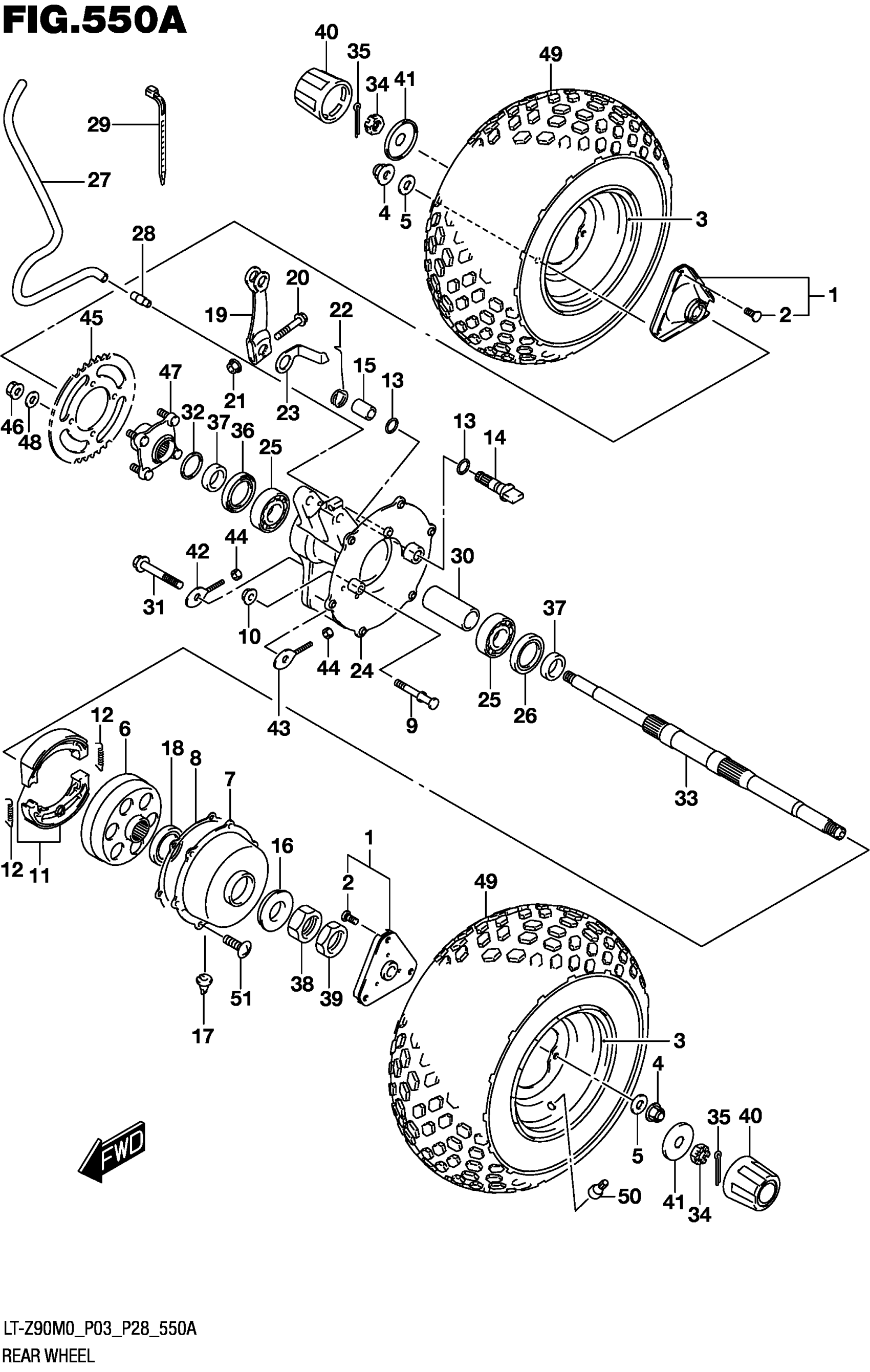

Suzuki LT-Z90M0 (2020) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

64110-40B50

$132.73

2

.BOLT (10X23)

09119-10048

$3.72

3

RIM,FRONT WHEEL (8X5.5AT,SILV | (SILVER)

55310-40B00-13L

$312.13

4

NUT

08316-1010B

$2.66

5

WASHER (10X20X2.3)

09160-10142

$2.34

6

DRUM,REAR BRAKE

64120-40B10

$442.32

7

COVER,RR BRAKE DRUM

64130-40B10

$72.82

8

PACKING,REAR BRAKE DRUM COVER

64125-40B00

$14.32

9

PIN,REAR BRAKE ANCHOR

64231-40B00

$8.87

10

NUT

08316-1008B

$2.66

11

SHOE SET,REAR BRAKE

64400-08810

$84.30

12

SPRING

64430-14600

$4.53

13

O-RING (D:1.9,ID:13.8)

09280-14004

$1.65

14

CAM,REAR BRAKE

64441-40B00

$21.77

15

SPACER,REAR BRAKE CAM LEVER

64454-40B00

$4.90

16

SEAL,DUST

64729-08H01

$44.95

17

CAP,OD:20 (OD:20)

09250-11002

$2.12

18

SEAL,OIL,42X55X9 (42X55X9)

09282-42001

$18.14

19

LEVER,REAR BRAKE CAM

64451-08H00

Unavailable

20

BOLT (L:30)

01550-0630B

$2.85

21

NUT

08316-1006B

$2.50

22

SPRING,BRAKE CAM LEVER RETURN

64444-40B00

$4.82

23

PLATE,BK LINING INDICATOR

64492-08H00

Unavailable

24

HOUSING,RR AXLE BEARING

64721-08H00

$323.03

25

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

26

SEAL,OIL,42X65X7 (42X65X7)

09283-42015

$14.81

27

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

28

UNION

09364-06004

Unavailable

29

CLAMP (L:125)

09407-14403

$2.26

30

SPACER,REAR AXLE BEARING

64731-08H00

$17.83

31

BOLT,14X105 (14X105)

09103-14033

Unavailable

32

SEAL,OIL,42X54X9.2 (42X54X9.2

09286-42001

$14.18

33

AXLE,REAR

64711-08H00

$711.80

34

NUT

09141-16004

$7.05

35

PIN

04111-4035A

$1.49

36

SEAL,OIL,42X65X8.5 (42X65X8.5

09283-42016

$23.05

37

SPACER,REAR AXLE OUTER

64741-08H00

$20.52

38

NUT,REAR AXLE

64871-08H00

Unavailable

39

NUT

64872-08H00

Unavailable

40

CAP,WHEEL CENTER

54725-18A00

$10.28

41

HOLDER,CENTER CAP

64726-08H00

Unavailable

42

ADJUSTER,CHAIN,R

61411-08H00

Unavailable

43

ADJUSTER,CHAIN,L

61421-08H00

Unavailable

44

NUT

08319-3108A

$2.32

45

SPROCKET,REAR (NT:24)

64511-08H00

$92.70

46

NUT

08319-3108A

$2.32

47

FLANGE,SPROCKET MOUNTING

64610-08H00

Unavailable

48

WASHER

08322-0108B

$2.34

49

TIRE,REAR (AT19X7-8,DI-K549)

65100-40B60

$269.70

50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

51

SCREW

02142-0608B

$1.77
