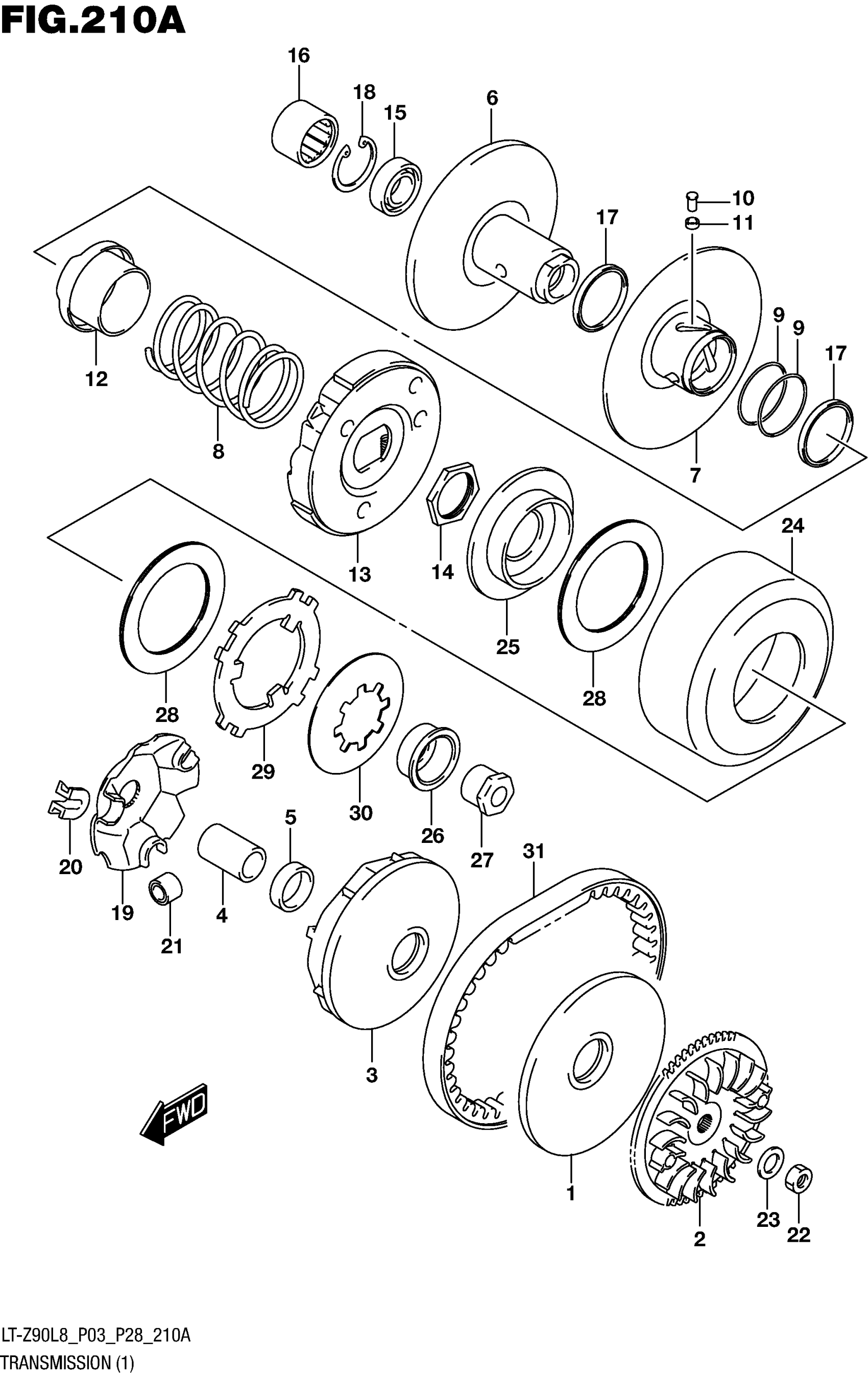

Suzuki LT-Z90L8 (2018) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE,FIXED DRIVE

21111-08H00

$36.65

2

FAN,FIXED DRIVE FACE (NT:36)

21113-08H00

$77.50

3

FACE,MOVABLE DRIVE

21120-33G00

$97.05

4

SPACER,MOVABLE DRIVE

21125-33G00

Unavailable

5

SPACER,MOVABLE DRIVE STOPPER

21128-08H00

$6.47

6

FACE,FIXED DRIVEN

21210-33G00

Unavailable

7

FACE,MOVABLE DRIVEN

21240-33G01

Unavailable

8

SPRING,MOVABLE DRIVEN

21243-33G00

$48.38

9

O-RING,MOVABLE DRIVEN

21245-33G00

$8.53

10

PIN,MOVABLE DRIVEN

21248-33G00

Unavailable

11

SPACER,MOVABLE DRIVEN PIN

21249-33G00

Unavailable

12

SHEET,MOVABLE DRIVEN

21471-33G00

Unavailable

13

CLUTCH ASSY,SHOE

21501-08H00

$265.62

14

NUT

09140-28004

$9.50

15

BEARING (15X24X5)

09262-15035

Unavailable

16

BEARING (20X26X14)

09263-20093

Unavailable

17

SEAL,OIL,33.2X39X3 (34X39X3) This part replaces 09284-34003.

09284-34004

$13.57

18

CIRCLIP

09381-24005

$3.85

19

PLATE,MOVABLE DRIVE

21431-33G00

Unavailable

20

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$7.22

21

ROLLER,MOVABLE DRIVE

21650-21F70

$16.48

22

NUT

09140-12039

$3.05

23

WASHER

09164-12020

$2.35

24

HOUSING,CLUTCH

21220-29A01

$93.98

25

HUB,LIMITER CLUTCH

21411-08H00

Unavailable

26

STOPPER,LIMITER

21412-08H00

Unavailable

27

NUT,CLUTCH HOUSING

21413-08H00

Unavailable

28

PLATE, LIMITER CLUTCH FRICTIO

21441-29A01

$17.86

29

PLATE, LIMITER CLUTCH PRESSUR

21461-29A01

$7.32

30

SPRING

09164-30003

$11.65

31

V-BELT,DRIVE

27601-33G00

$144.77
