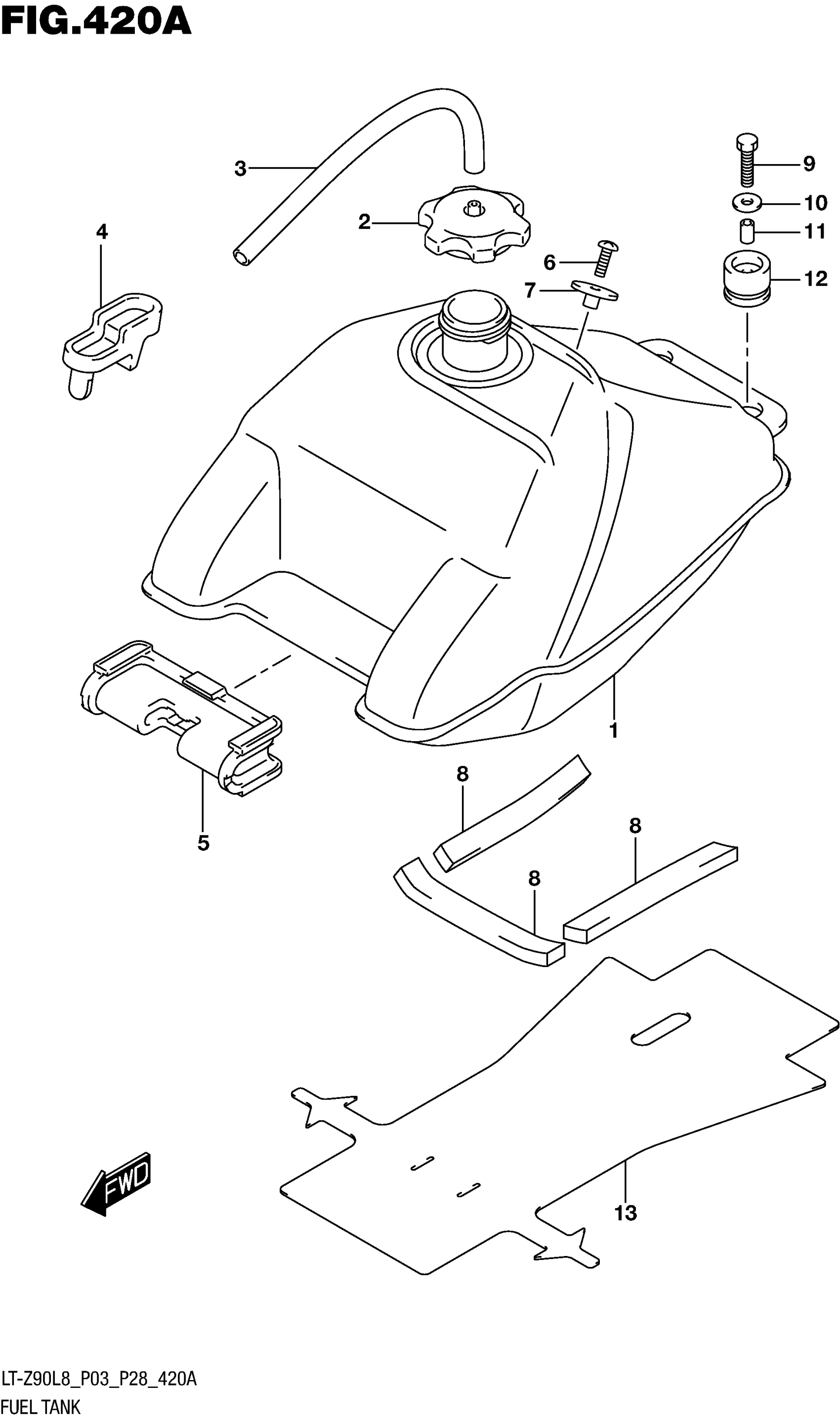

Suzuki LT-Z90L8 (2018) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-08HA0

Unavailable

2

CAP ASSY, FUEL TANK

44200-09AA0

$65.53

3

HOSE, BREATHER

44411-08H00

$10.90

4

TRAY,FUEL TANK BREATHER

44333-08H00

Unavailable

5

CUSHION,FUEL TANK FRONT

44541-08H00

Unavailable

6

SCREW

02142-0620A

$1.49

7

HOOK, SEAT FR

44132-27C01

$17.17

8

CUSHION,FUEL TANK LOWER

44543-08H00

Unavailable

9

BOLT, REAR

01500-0625A

$1.78

10

WASHER This part replaces 09160-06132.

09160-06084

$1.78

11

SPACER (6.5X9X12.5)

09180-06267

$4.10

12

CUSHION,FUEL TANK REAR

44541-43F00

$7.63

13

RUBBER, FUEL TANK LOWER

44542-08H00

Unavailable
