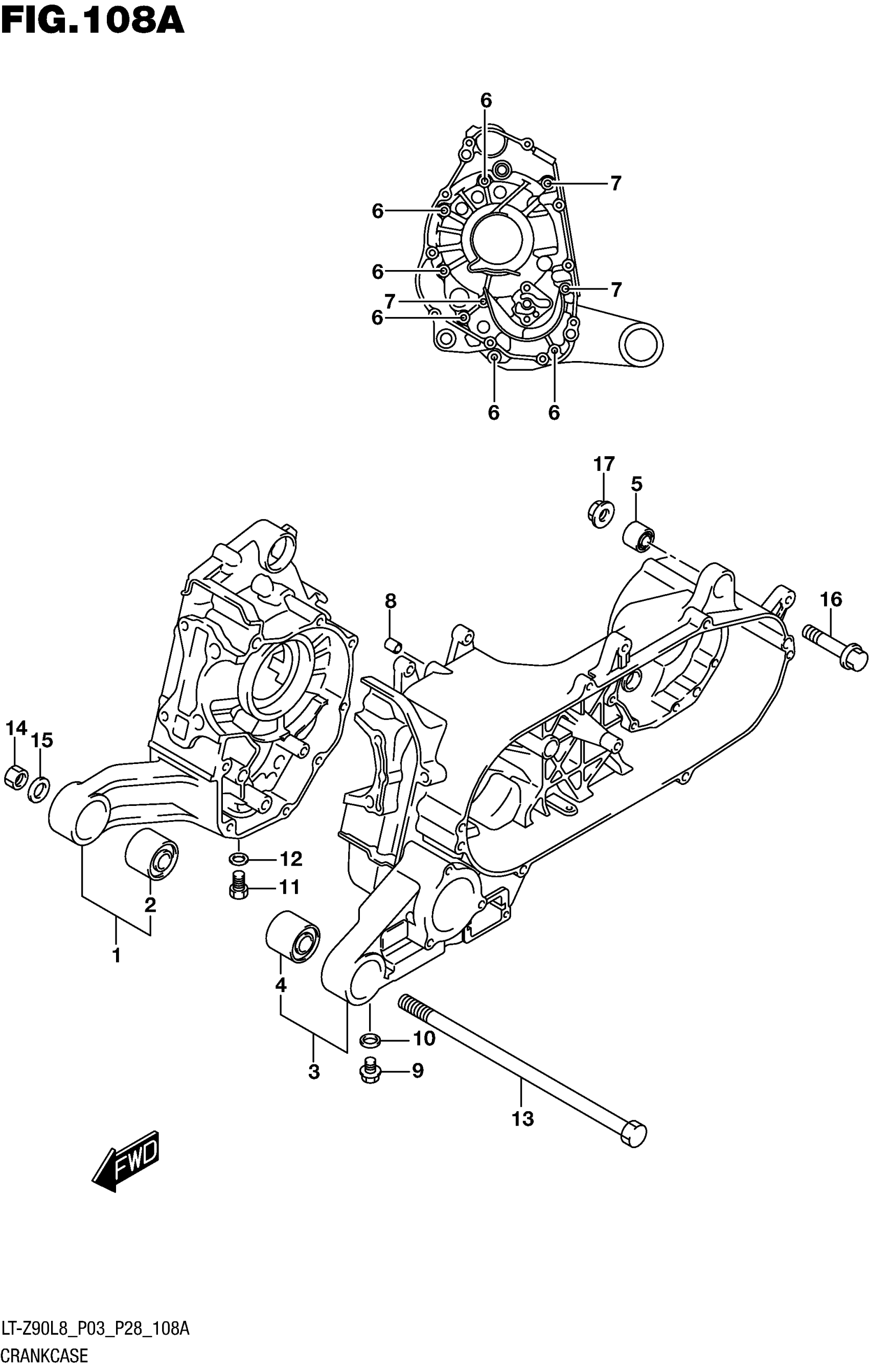

Suzuki LT-Z90L8 (2018) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET RH

11310-33821

$409.13

2

.BUSH, ENGINE MOUNTING

11315-33G40

Unavailable

3

CRANKCASE SET LH

11320-08810

$560.68

4

.BUSH, ENGINE MOUNTING

11315-33G40

Unavailable

5

.BUSH (10.2X22.3X20)

09319-10032

$9.27

6

BOLT

01547-0655B

$2.75

7

BOLT

01547-0675B

$3.93

8

PIN (6.2X8X11)

09206-08001

$1.78

9

BOLT

01550-0812B

$2.73

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

BOLT,OIL DRAIN

11316-33G00

Unavailable

12

GASKET (10X14X3.6)

09168-10002

$2.13

13

BOLT,12X235 (12X235)

09100-12089

Unavailable

14

NUT

08319-3112B

$5.00

15

WASHER (12.5X24X3.2)

09160-12082

$3.29

16

BOLT (10X45)

09103-10218

$5.65

17

NUT

09159-10115

$3.55
