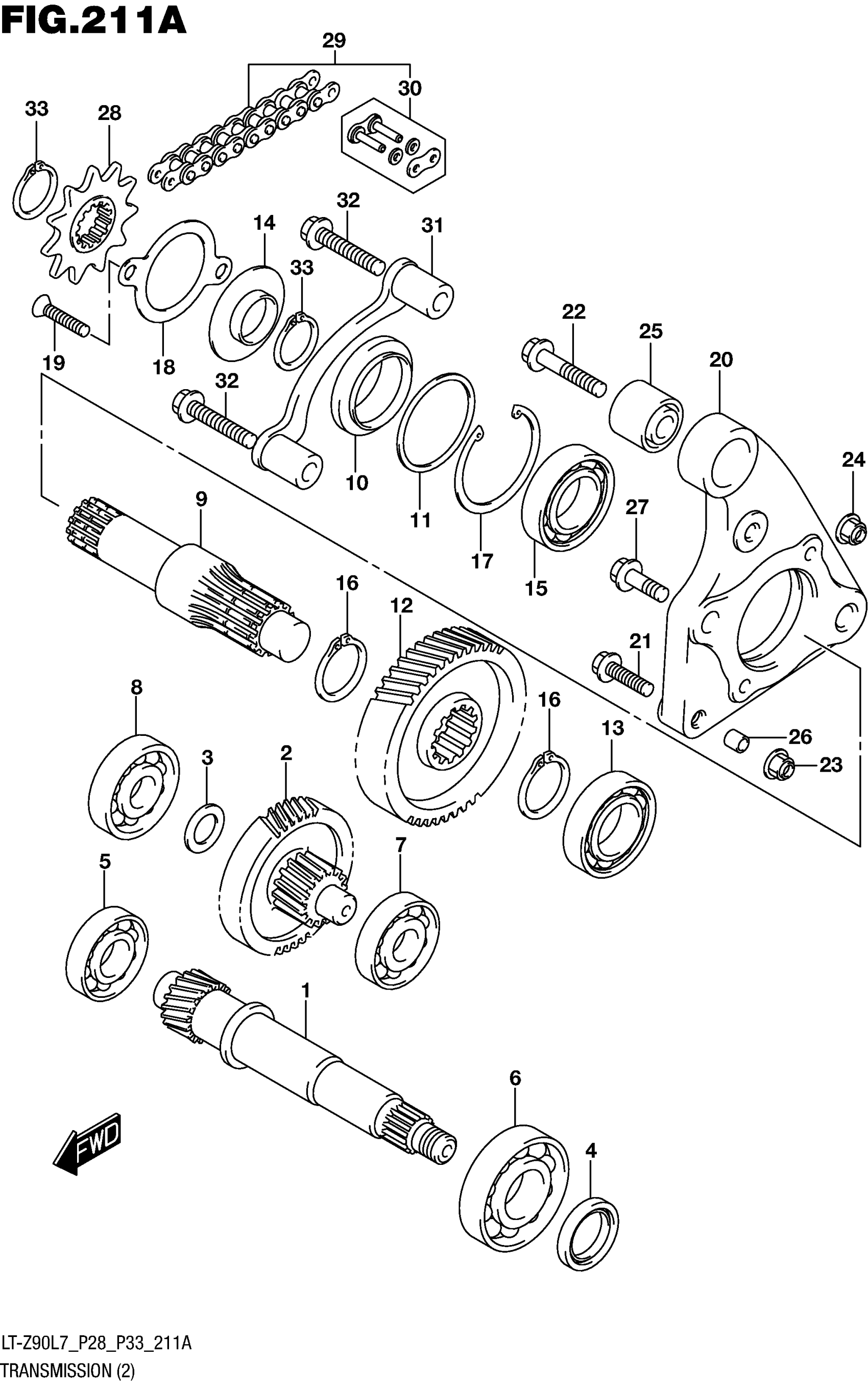

Suzuki LT-Z90L7 (2017) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT,DRIVE (NT:17)

24131-08H00

Unavailable

2

SHAFT,IDLE,NT:15/45 (NT:15/45

24150-33G00

Unavailable

3

SHIM (12X20X1.0)

09181-12167

$2.26

4

SEAL,OIL This part replaces 09283-20052.

09283-20073

$8.87

5

BEARING (15X35X11)

09262-15031

Unavailable

6

BEARING (20X47X14)

09262-20069

$23.28

7

BEARING (12X28X8)

09262-12001

$18.47

8

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

9

SHAFT,REAR AXLE

24141-08H00

Unavailable

10

SEAL, DRIVE SHAFT OIL NO.2

24142-40B00

$10.30

11

WASHER, AXLE SHAFT BEARING

24143-08H00

Unavailable

12

GEAR,FINAL DRIVEN,NT:47 (NT:4

24371-33G00

Unavailable

13

BEARING (20X47X14)

09262-20121

$33.92

14

SEA OIL (20X47X12)

09283-20047

$13.11

15

BEARING, AXLE SHAFT, L

08110-62030

$19.18

16

CIRCLIP

08331-31229

$2.48

17

CIRCLIP

08331-4147A

Unavailable

18

RETAINER,AXLE SHAFT

24751-08H00

Unavailable

19

SCREW

02122-0630A

$1.74

20

HOUSING,RR AXLE SHAFT

24145-08H00

Unavailable

21

BOLT (10X44)

09103-10086

Unavailable

22

BOLT (10X45)

09103-10218

$5.65

23

NUT (M10X1.25)

09159-10115

$3.55

24

NUT (M10X1.25)

09159-10115

$3.55

25

BUSH (10.2X22.3X20)

09319-10032

$9.27

26

PIN, RR AXLE SHAFT BEARING

04211-13149

$2.29

27

BOLT (10X30)

09103-10395

$3.78

28

SPROCKET,ENGINE,NT:11 (NT:11)

27511-08H00

$48.67

29

CHAIN, DRIVE (RK50GSVZ3M)

27600-24F20-060

Unavailable

30

.JOINT SET, CHAIN

27620-24F20

$21.92

31

PLATE,FRONT CHAIN

27640-08H00

Unavailable

32

BOLT

01550-0840B

$4.10

33

CIRCLIP

09380-20009

$2.20
