2017 Suzuki LT-Z90L7 Suspension Arm Diagram

← All diagrams

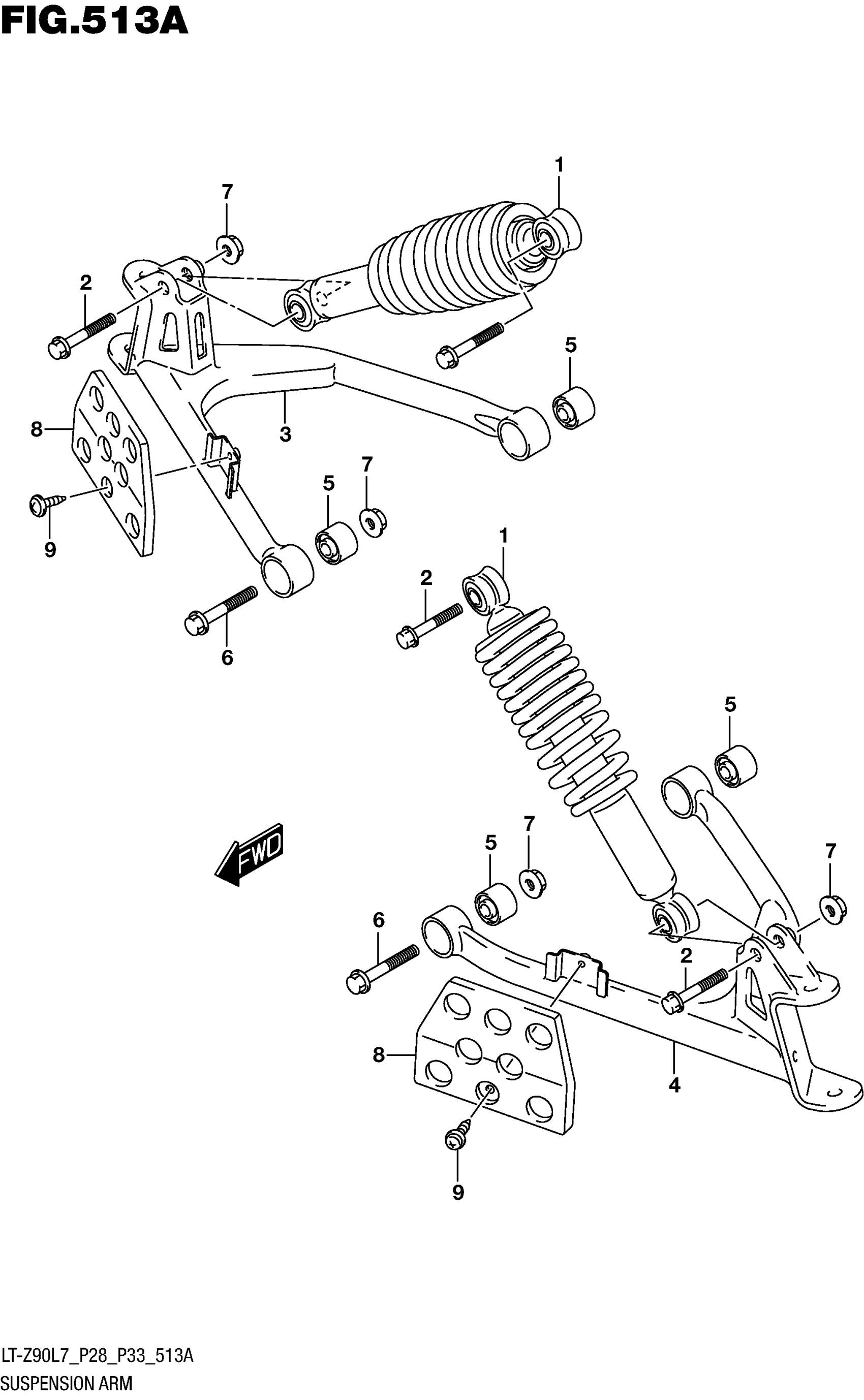

Find the part on the Suspension Arm diagram for your 2017 Suzuki LT-Z90L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki LT-Z90L7 Suspension Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT (RED)

52100-08H00-YKS

2
Out of stock

2

BOLT, (10X38)

09103-10351

4
Out of stock

3

ARM, SUSPENSION RH (BLACK)

52410-08H00-019

1
Out of stock

4

ARM, SUSPENSION LH (BLACK)

52420-08H00-019

1
Out of stock

5

BUSH, ARM (10X28.1X28)

09319-10049

4
Out of stock

6

BOLT, SUSPENSION ARM (10X45)

09103-10218

4
Out of stock

7

NUT, SUSPENSION ARM

08319-3110A

4
Out of stock

8

PROTECTOR,SUSPENSION ARM

54903-08H00

2
Out of stock

9

BOLT, PROTECTOR (6X16)

09111-06065

2
Out of stock
