2017 Suzuki LT-Z90L7 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2017 Suzuki LT-Z90L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

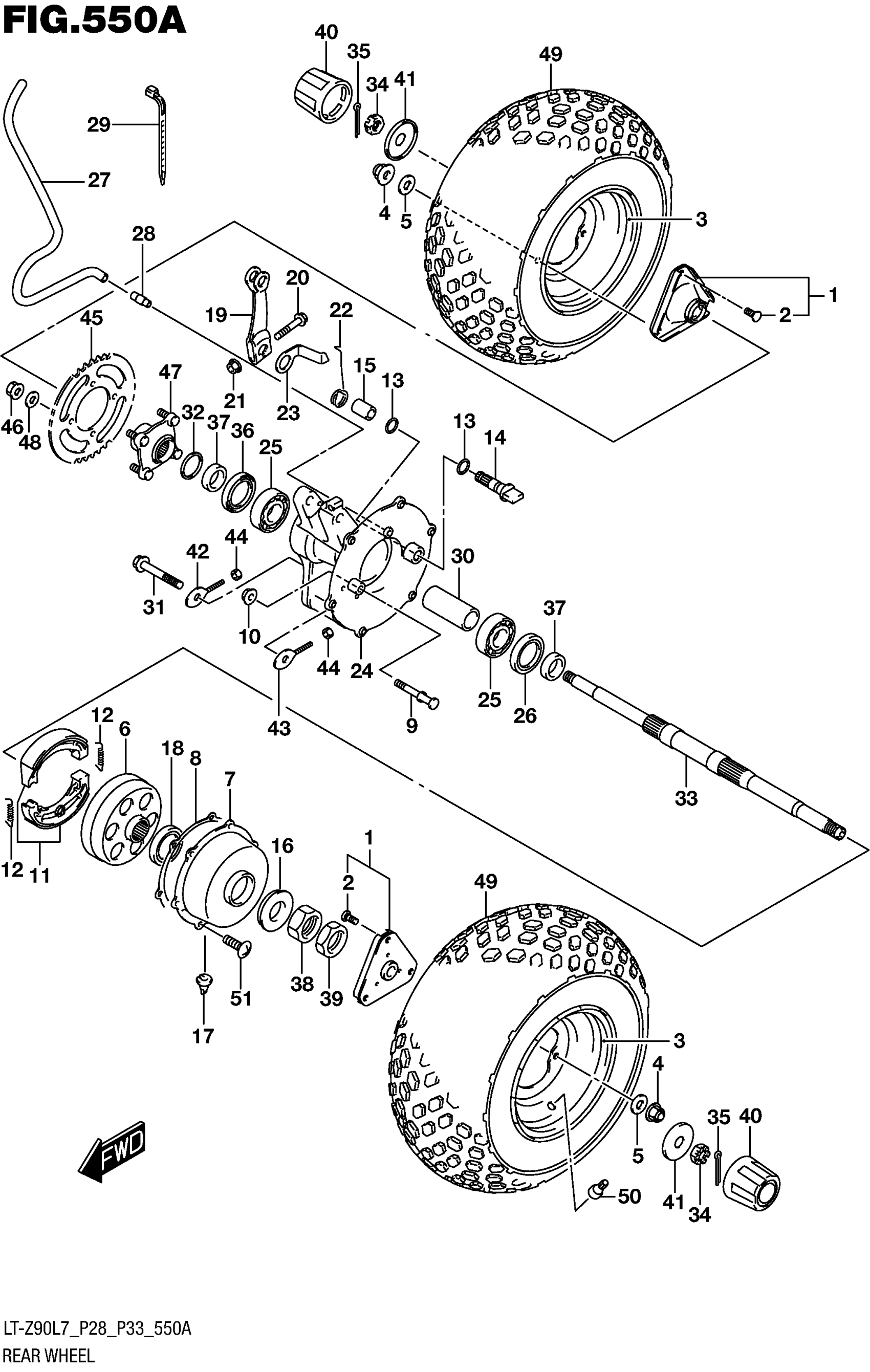

2017 Suzuki LT-Z90L7 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-40B50

2
Out of stock

2

.BOLT

09119-10048

6
Out of stock

3

RIM, REAR WHEEL (8X5.5AT)

55310-40B00-13L

2
Out of stock

3

(SILVER)

55310-40B00-13L

1
Out of stock

4

NUT

08316-1010B

6
Out of stock

5

WASHER (10X20X2.3)

09160-10142

6
Out of stock

6

DRUM,REAR BRAKE

64120-40B10

1
Out of stock

7

COVER,RR BRAKE DRUM

64130-40B10

1
Out of stock

8

PACKING, REAR BRAKE DRUM COVE

64125-40B00

1
Out of stock

9

PIN, REAR BRAKE ANCHOR

64231-40B00

1
Out of stock

10

NUT, REAR BRAKE ANCHOR PIN

08316-1008B

1
Out of stock

11

SHOE SET,REAR BRAKE

64400-08810

1
Out of stock

12

SPRING

64430-14600

2
Out of stock

13

O RING (D:1.9,ID:13.8)

09280-14004

2
Out of stock

14

CAM, BRAKE

64441-40B00

1
Out of stock

15

SPACER, BRAKE CAM LEVER

64454-40B00

1
Out of stock

16

SEAL,DUST This part replaces 64729-08H00.

64729-08H01

1
Out of stock

17

CAP (OD:20)

09250-11002

1
Out of stock

18

OIL SEAL (42X55X9)

09282-42001

1
Out of stock

19

LEVER,REAR BRAKE CAM

64451-08H00

1
Out of stock

20

BOLT

01550-0630B

1
Out of stock

21

NUT

08316-1006B

1
Out of stock

22

SPRING, BRAKE CAM LEVER

64444-40B00

1
Out of stock

23

PLATE,BK LINING INDICATOR

64492-08H00

1
Out of stock

24

HOUSING,RR AXLE BEARING

64721-08H00

1
Out of stock

25

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

2
Out of stock

26

OIL SEAL (42X65X7)

09283-42015

1
Out of stock

27

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

1
Out of stock

28

JOINT, BREATHER HOSE

09364-06004

1
Out of stock

29

CLAMP (L:125)

09407-14403

1
Out of stock

30

SPACER,REAR AXLE BEARING

64731-08H00

1
Out of stock

31

BOLT (14X105)

09103-14033

1
Out of stock

32

OIL SEAL (42X54X9.2)

09286-42001

1
Out of stock

33

AXLE,REAR

64711-08H00

1
Out of stock

34

NUT

09141-16004

2
Out of stock

35

COTTER PIN

04111-4035A

2
Out of stock

36

OIL SEAL (42X65X8.5)

09283-42016

1
Out of stock

37

SPACER,REAR AXLE OUTER

64741-08H00

2
Out of stock

38

NUT,REAR AXLE

64871-08H00

1
Out of stock

39

NUT

64872-08H00

1
Out of stock

40

CAP, WHEEL CENTER

54725-18A00

2
Out of stock

41

HOLDER,CENTER CAP

64726-08H00

2
Out of stock

42

ADJUSTER,CHAIN,R

61411-08H00

1
Out of stock

43

ADJUSTER,CHAIN,L

61421-08H00

1
Out of stock

44

NUT

08319-3108A

2
Out of stock

45

SPROCKET,REAR (NT:24)

64511-08H00

1
Out of stock

46

NUT, REAR SPROCKET

08319-3108A

4
Out of stock

47

FLANGE, REAR SPROCKET MOUNTIN

64610-08H00

1
Out of stock

48

WASHER

08322-0108B

4
Out of stock

49

TIRE,REAR (AT19X7-8,DI-K549)

65100-40B60

2
Out of stock

50

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

2
Out of stock

51

SCREW

02142-0608B

6
Out of stock
