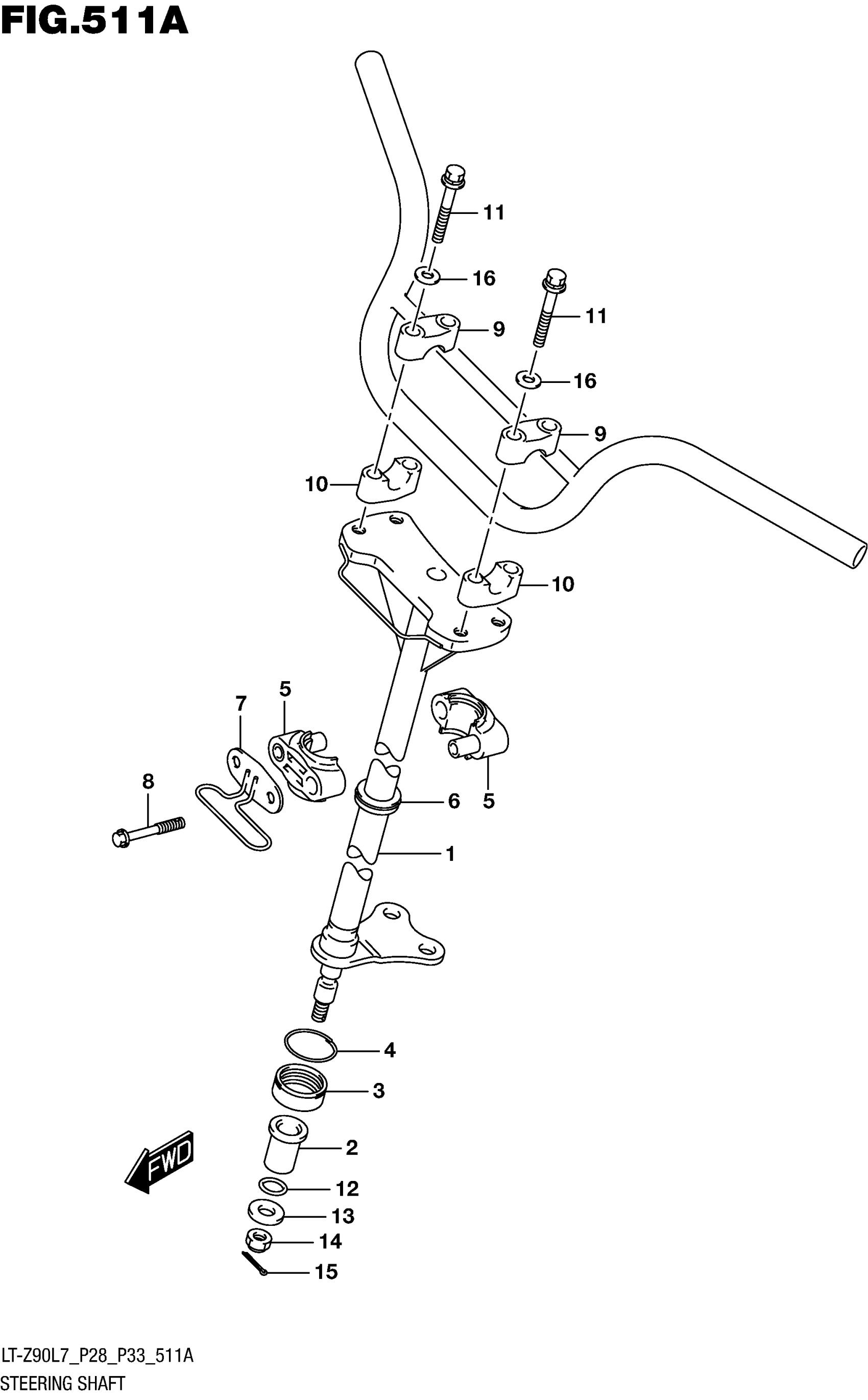

Suzuki LT-Z90L7 (2017) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT,STEERING

51650-08H00

$269.83

2

BUSH,STEERING SHAFT LOWER

51661-40BA0

$35.78

3

SEAL,STEERING SHAFT DUST

51662-43FK0

$8.97

4

CLIP, DUST SEAL

09380-31002

$2.43

5

HOLDER,STEERING SHAFT

51670-18902

$18.02

6

DUST SEAL, STEERING

51678-18900

$8.12

7

REINFORCEMENT, HOLDER

51680-40B00

$7.75

8

.BOLT

01550-0855A

$3.05

9

HOLDER, HANDLEBAR (BLACK)

56211-27200-291

$17.90

10

HOLDER, HANDLEBAR (BLACK)

56211-21G00-291

$30.47

11

BOLT

01550-0850A

$3.67

12

O RING (ID:13.8,D:2.50)

09280-14011

$4.77

13

WASHER (10.6X24X3.20)

09160-10079

$3.93

14

NUT

08319-3110A

$2.73

15

COTTER PIN

04111-2020A

$1.49

16

WASHER

09164-08015

$3.21
