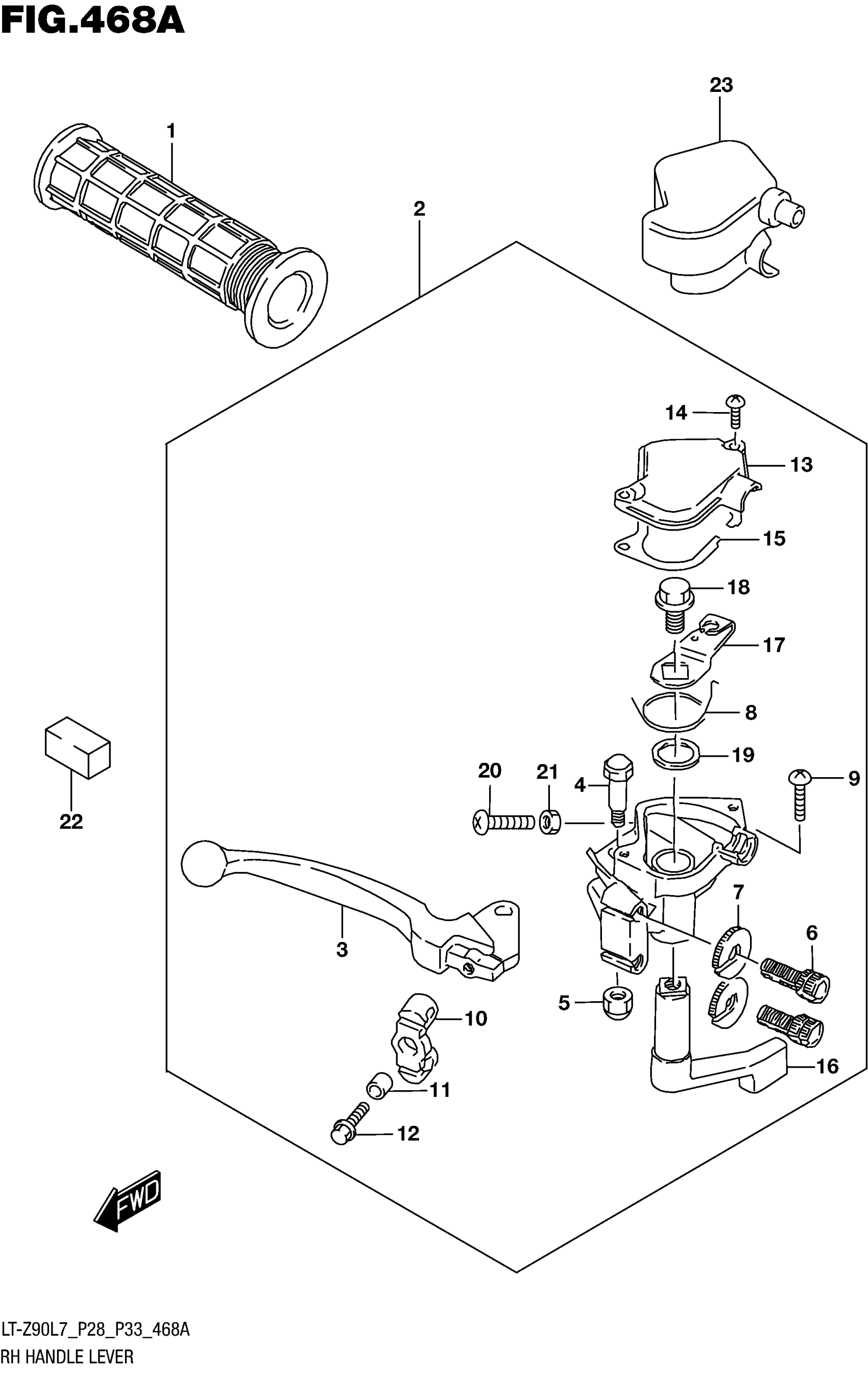

Suzuki LT-Z90L7 (2017) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP, HANDLE

57211-21G10

$10.15

2

LEVER ASSY,FRONT BRAKE

57300-40B21

$68.28

3

.LEVER, FRONT BRAKE

57421-40B00

$13.31

4

.BOLT, BRAKE LEVER PIVOT

57431-49110

$6.31

5

.NUT

08319-2106B

$2.32

6

.ADJUSTER, BRAKE CABLE

57441-26010

$4.48

7

NUT This part replaces 57442-44400.

57442-11010

$2.79

8

.SPRING, THROTTLE LEVER

57159-40B00

$2.55

9

.SCREW

02112-0620B

Unavailable

10

.EQUALIZER, BRAKE CABLE

57396-40B00

$12.15

11

.SPACER (6.2X8.3X6.9)

09180-06194

$2.92

12

BOLT

01550-0616B

$2.48

13

.CAP, THROTTLE CASE

57121-40B00

$17.37

14

.SCREW

02112-0410B

$1.98

15

.GASKET, THROTTLE CASE

57157-40B01

$4.12

16

.LEVER, THROTTLE

57151-08H00

$18.80

17

.LEVER, THROTTLE CABLE

57158-40B00

$4.17

18

.BOLT

01550-0812B

$2.73

19

.GASKET (14X20X1.5)

09168-14015

$2.03

20

.SCREW (5X25)

09125-05066

$1.65

21

.NUT

09140-05006

$2.19

22

SEAL,CUSHION

57338-40B00

Unavailable

23

COVER,THROTTLE CASE

57339-40B10

Unavailable
