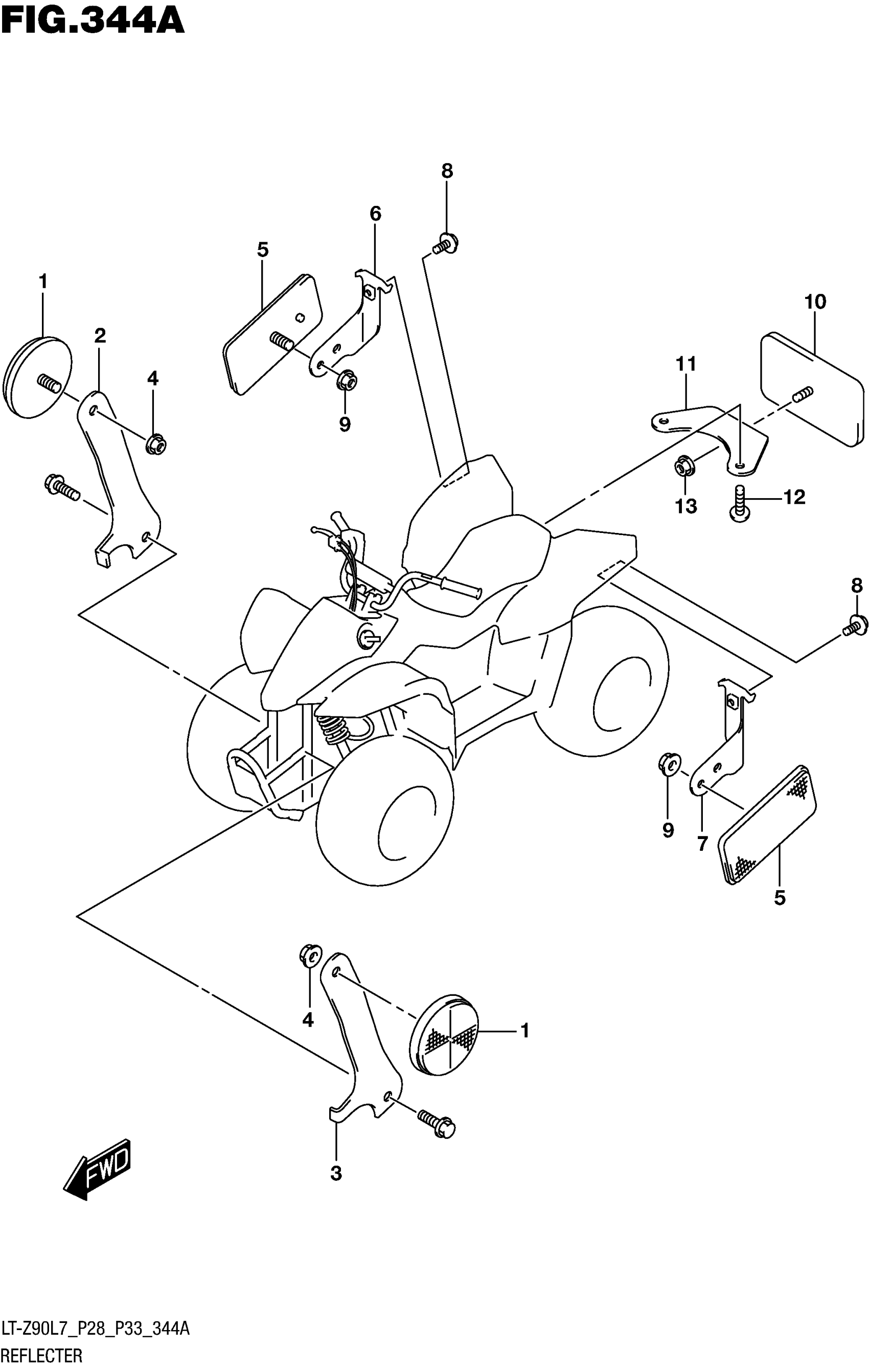

Suzuki LT-Z90L7 (2017) REFLECTOR (LT-Z90L7 P28) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

2

BRACKET, FRONT SIDE RR RH

35956-08H00

Unavailable

3

BRACKET, FRONT SIDE RR LH

35957-08H00

Unavailable

4

NUT, FRONT SIDE RR

08316-1005A

$2.19

5

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

6

BRACKET, REAR SIDE RH

35975-08H00

Unavailable

7

BRACKET, REAR SIDE LH

35976-08H00

Unavailable

8

BOLT (6X13.5)

09111-06088

$2.03

9

NUT

08316-1005B

$2.50

10

REFLECTOR, REAR

35970-07F01

$20.88

11

BRACKET,REAR RR

35974-08H00

$8.90

12

SCREW, REAR BRACKET

03541-0516A

$1.49

13

NUT, REAR RR

08316-1005B

$2.50
