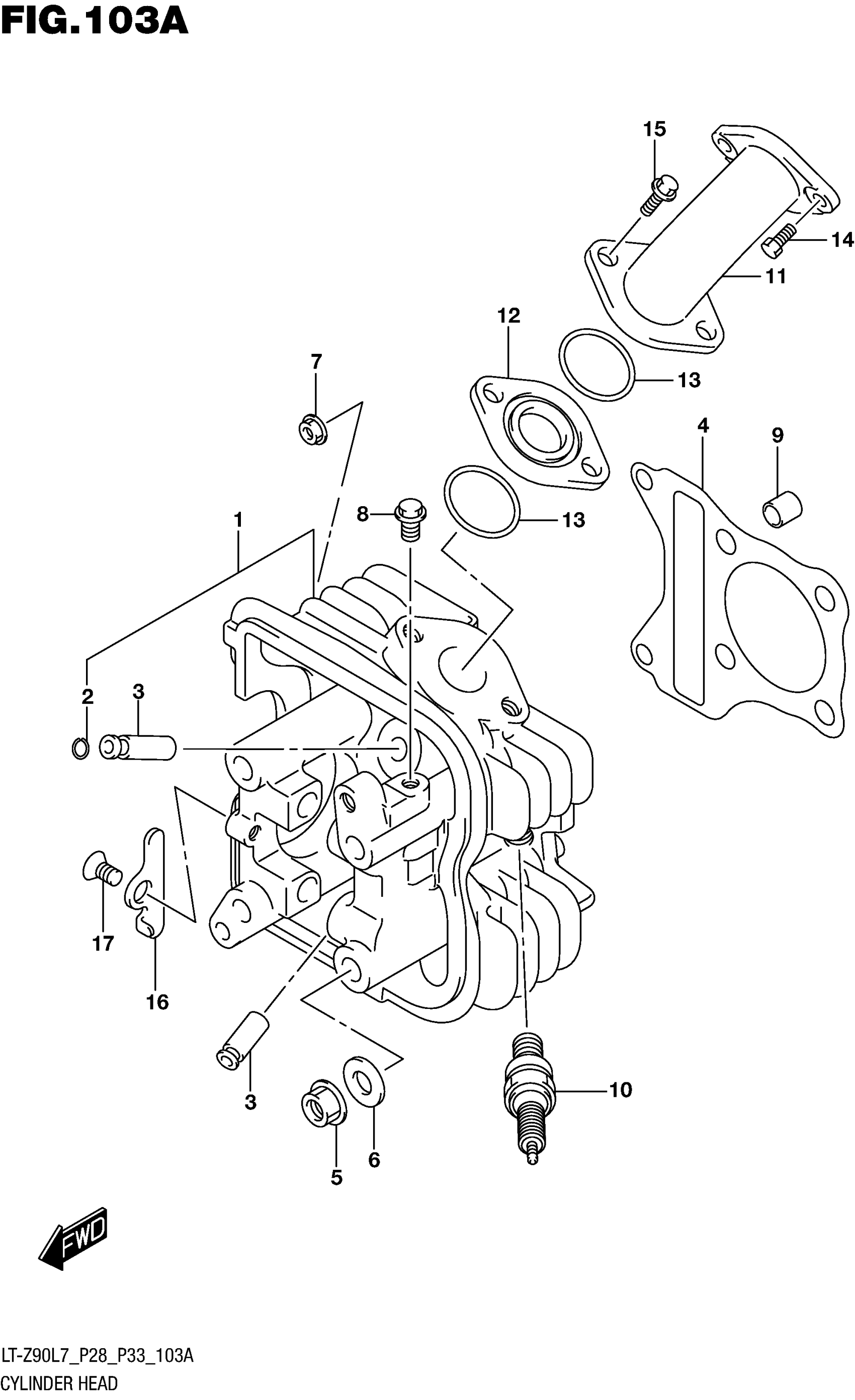

Suzuki LT-Z90L7 (2017) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD,CYLINDER

11110-08H00

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

GUIDE,VALVE (OS:0.3) | OPT

11115-30D70

$31.88

4

GASKET, CYLINDER HEAD

11141-08H00

$32.88

5

NUT

08316-1008B

$2.66

6

WASHER (8.5X19X2.3)

09160-08039

$2.03

7

NUT

08316-1006B

$2.50

8

BOLT

01547-0610B

$2.45

9

PIN

04211-11129

$1.76

10-1

SPARK PLUG,CR6HSA (CR6HSA)

09482-00406

$3.29

10-2

SPARK PLUG,U20FSR-U (U20FSR-U

09482-00407

Unavailable

11

PIPE,INTAKE

13111-08H00

$49.55

12

INSULATOR, INTAKE PIPE

13117-08H00

$8.65

13

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.03

14

BOLT

07120-0616B

$2.45

15

BOLT

07120-0620B

$3.04

16

RETAINER,CAMSHAFT

12862-33G00

Unavailable

17

SCREW

02122-0612B

$1.84
