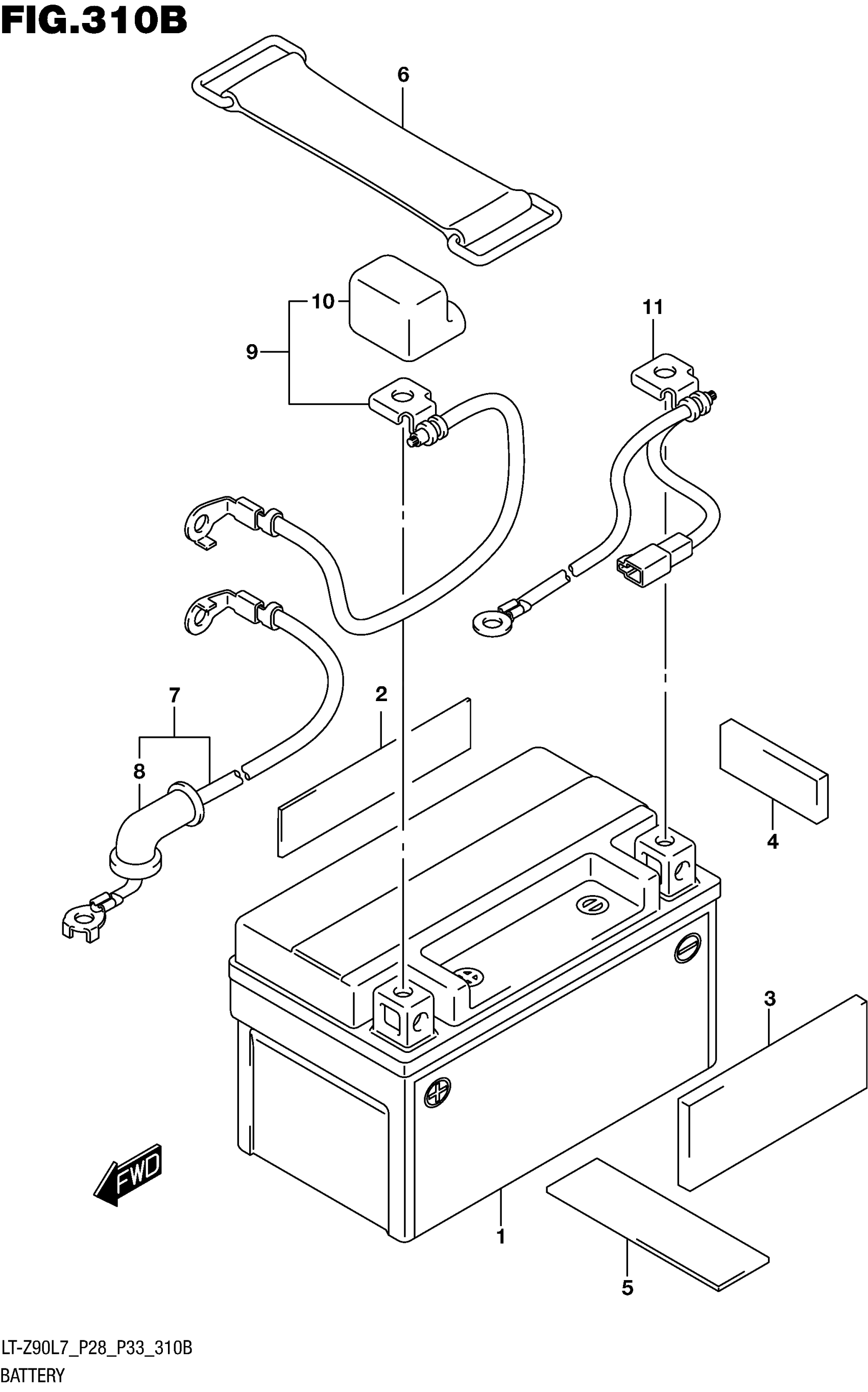

Suzuki LT-Z90L7 (2017) BATTERY (LT-Z90L7 P33) Diagram

#

Description

Price

1

BATTERY ASSY (12V,6AH) This part replaces 33610-46F00.

33610-33C80

$100.77

2

PROTECTOR (20X90X2)

33652-08H00

$2.02

3

PROTECTOR (40X85X6)

33652-08H10

$5.98

4

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.09

4

CUSHION, REAR FENDER REAR | PROFILE (20X45) This part replaces 33652-08420.

33651-37000

$4.09

5

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

$5.67

6

BAND, BATTERY

09462-00034

$3.89

7

WIRE,STARTER MOTOR LEAD

33810-08H00

$36.55

8

.CAP, STARTER MOTOR

31861-48B10

$7.40

9

WIRE, BATTERY PLUS

33820-08H00

Unavailable

10

.CAP, BATTERY PLUS

33624-10D00

$7.12

11

WIRE,BATTERY MINUS

33860-08H00

Unavailable
