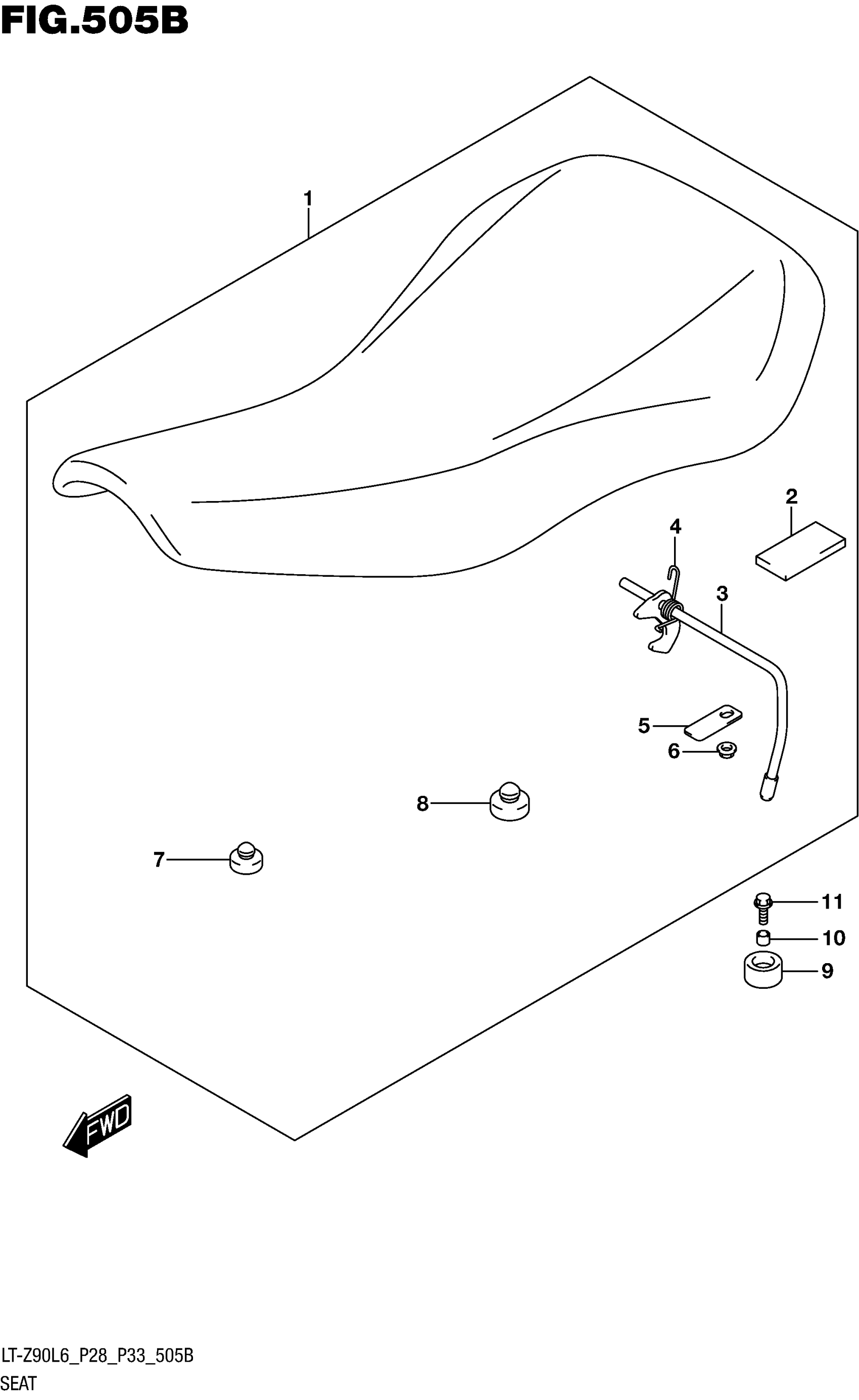

Suzuki LT-Z90L6 (2016) SEAT (LT-Z90L6 P33) Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-08H00-U4W.

45100-08H01-U4W

$317.52

2

.CUSHION, SEAT MOUNT BOSS

45149-08H00

Unavailable

3

.CLAMP, SEAT LOCK

45210-08H00

Unavailable

4

.SPRING, SEAT LOCK

45135-43F00

$6.05

5

.PLATE, SEAT LOCK RH

45222-43G00

Unavailable

6

.NUT

08316-1006B

$2.50

7

CUSHION

09321-10012

$2.92

8

.CUSHION, SEAT MOUNT

45148-08H00

Unavailable

9

CUSHION,SEAT MOUNT REAR

45141-08H00

$6.30

10

SPACER (6.5X9X8)

09180-06261

$1.91

11

BOLT

01550-0616B

$2.48
