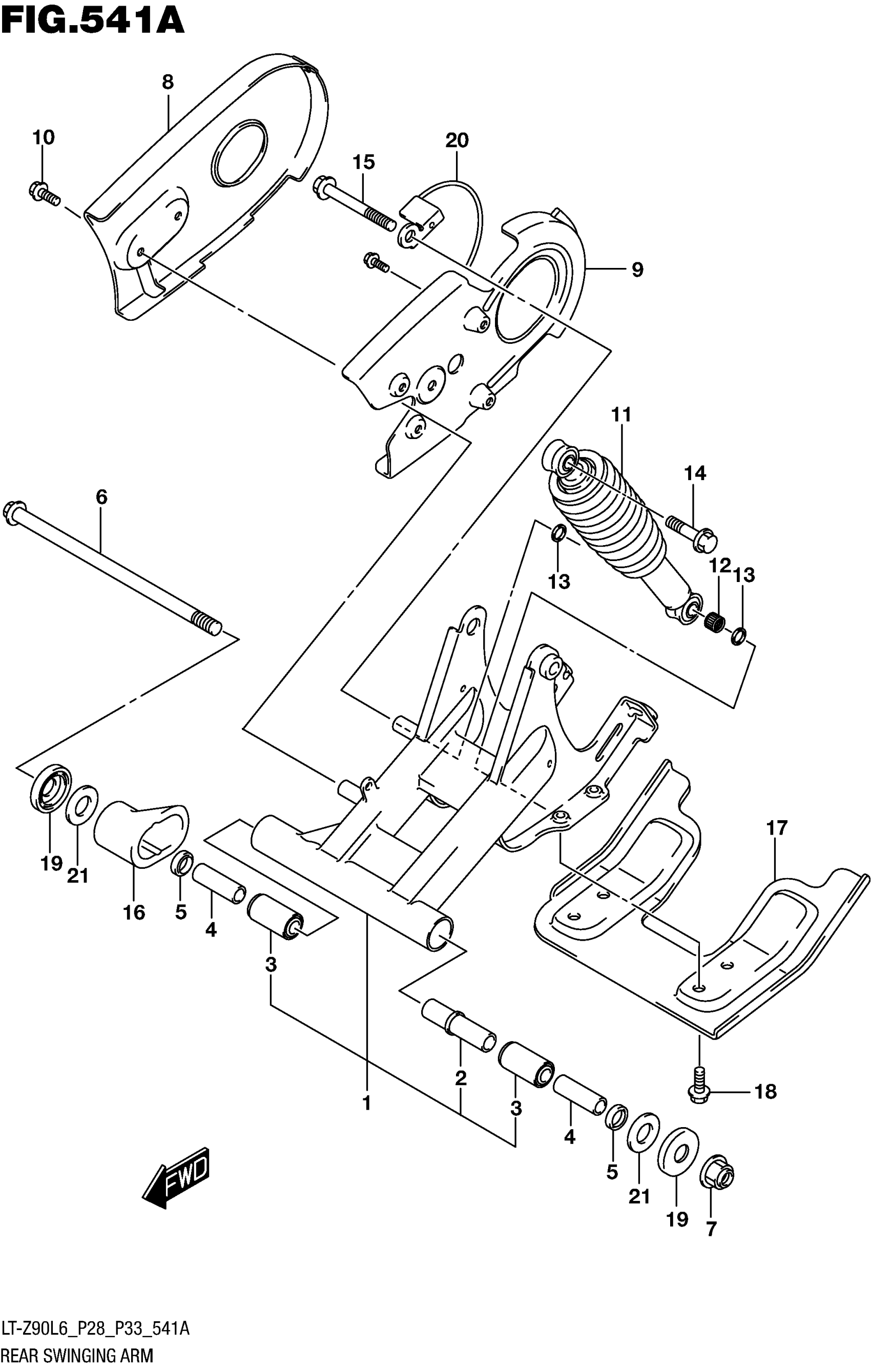

Suzuki LT-Z90L6 (2016) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK

61000-08H00-019

$1,160.23

2

.SPACER

61280-43G00

$17.78

3

.BUSH

61261-08H00

$15.11

4

SPACER,RR SWGARM PIVOT OUTER

61251-08H00

$31.90

5

SEAL,RR SWGARM PIVOT

61262-08H00

$4.81

6

SHAFT,RR SWGARM PIVOT

61211-08H00

$31.90

7

NUT

08319-3112A

$3.38

8

CASE,CHAIN

61311-08H00

Unavailable

9

CASE,CHAIN INNER

61313-08H00

Unavailable

10

BOLT (6X16)

09111-06066

$2.64

11

ABSORBER ASSY, RR SHOCK (RED)

62100-08H00-YKS

Unavailable

12

.BEARING (16X22X12)

09263-16033

$18.28

13

OIL SEAL (16X22X2.5)

09284-16005

$6.27

14

BOLT (10X44) | UPPER

09103-10049

$8.30

15

BOLT (12X105) | LOWER

09103-12097

Unavailable

16

BUFFER,CHAIN TOUCH DEFENSE

61273-08H00

$21.55

17

GUARD,SWGARM UNDER

61391-08H00

$55.47

18

BOLT (8X19)

09106-08179

$7.67

19

SEAL,DUST This part replaces 61262-21D00.

61262-21D01

$14.73

20

GUIDE,CHAIN

61340-08H00

Unavailable

21

SHIM (12.5X27.8X0.8)

09181-12010

Unavailable
