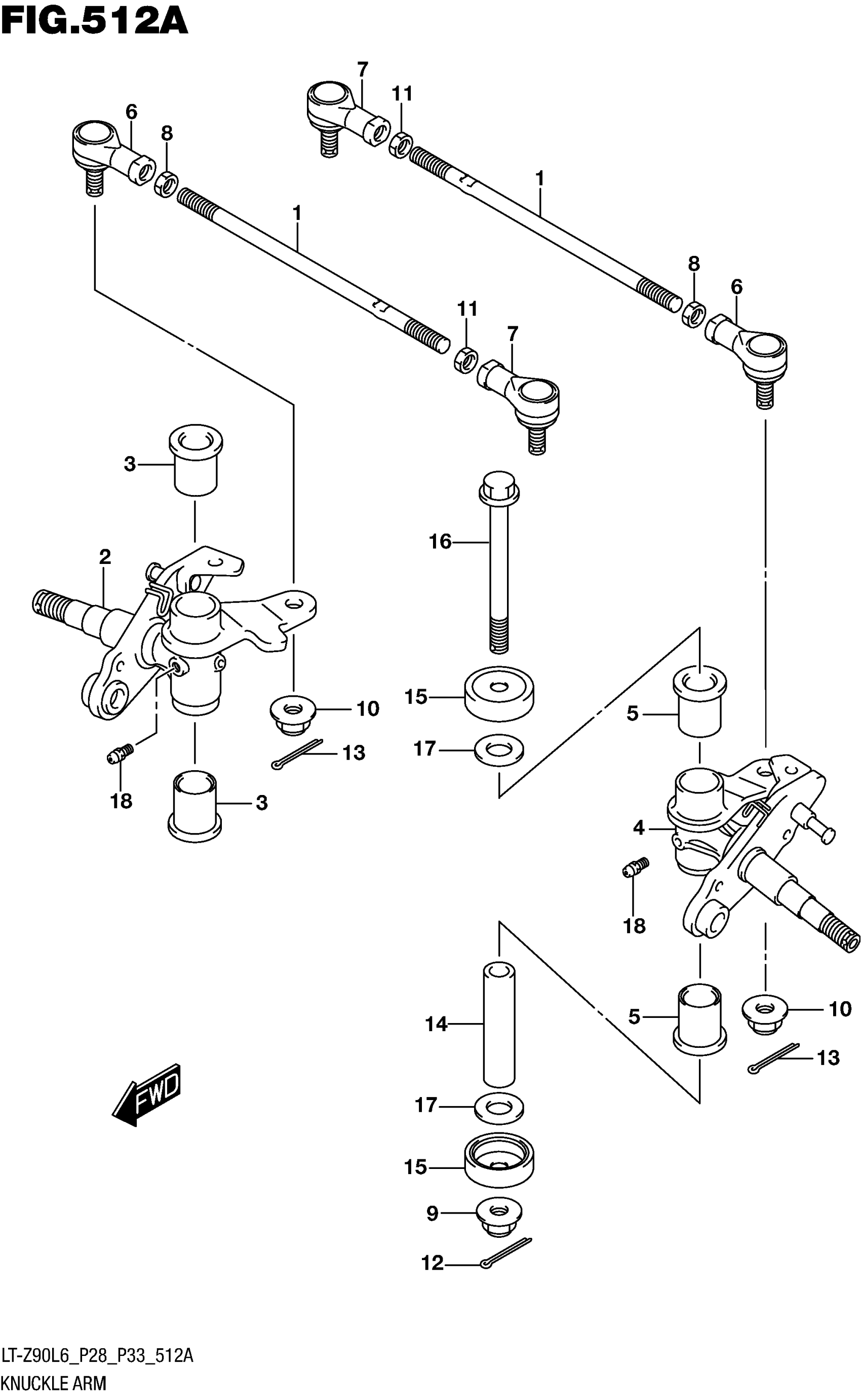

Suzuki LT-Z90L6 (2016) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-08H10

$37.52

2

ARM,KNUCKLE,R

51230-08H00

$496.12

3

.BUSH

51236-40B00

$17.46

4

ARM,KNUCKLE,L

51240-08H00

$496.12

5

.BUSH

51236-40B00

$17.46

6

END,ROD,R

51260-43G00

$106.48

7

END,ROD,L

51270-43G00

$108.50

8

NUT, TIE-ROD RH

51283-21G00

$4.70

9

NUT

08319-3110A

$2.73

10

NUT

08319-3110A

$2.73

11

NUT, TIE ROD (LH THREAD)

09140-10027

$1.54

12

COTTER PIN

04111-2020A

$1.22

13

COTTER PIN

04111-2020A

$1.22

14

SPACER,KINGPIN

51251-08H00

$25.08

15

SEAL,KNUCKLE ARM DUST

51255-08H00

$11.88

16

BOLT,KNUCKLE ARM

51256-43G00

$14.15

17

WASHER, KNUCKLE ARM

08211-10281

$2.06

18

NIPPLE,GREASE

08351-2100A

$4.28
