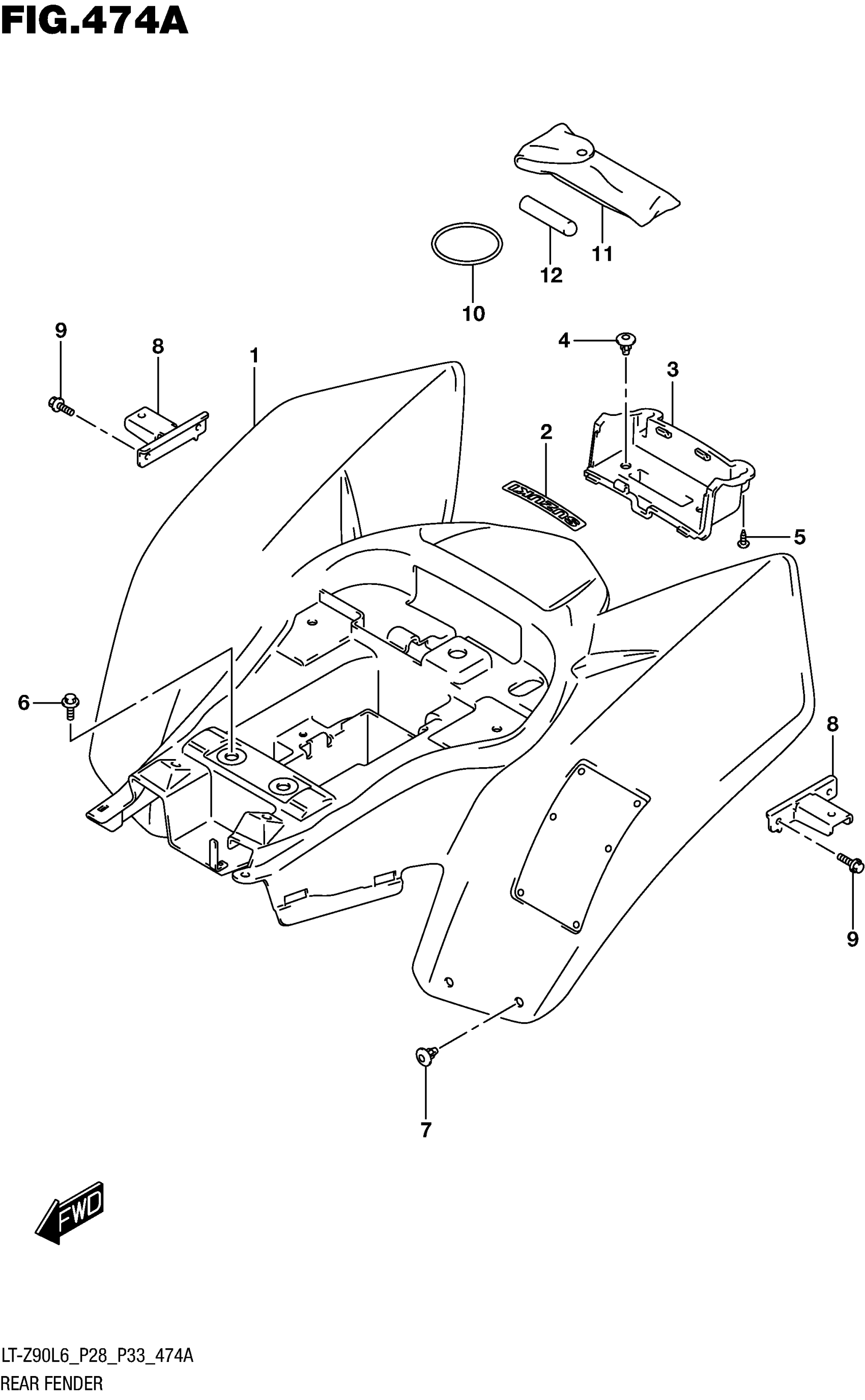

Suzuki LT-Z90L6 (2016) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (WHITE)

63111-08H00-30H

Unavailable

2

EMBLEM

68721-09A00-8YM

$14.47

3

FENDER,REAR LOWER

63121-08H00

$24.37

4

CLIP

09409-07333

$2.29

5

SCREW

03541-0516A

$1.37

6

BOLT (6X18)

09111-06081

$3.85

7

CLIP

09409-08335

$2.44

8

REINF,REAR FENDER

63130-08H00

Unavailable

9

BOLT

01550-0620A

$1.97

10

O RING (D:3.53,ID:69.44)

09280-70004

$3.52

11

TOOL ASSY

96510-08H00

Unavailable

12

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48
