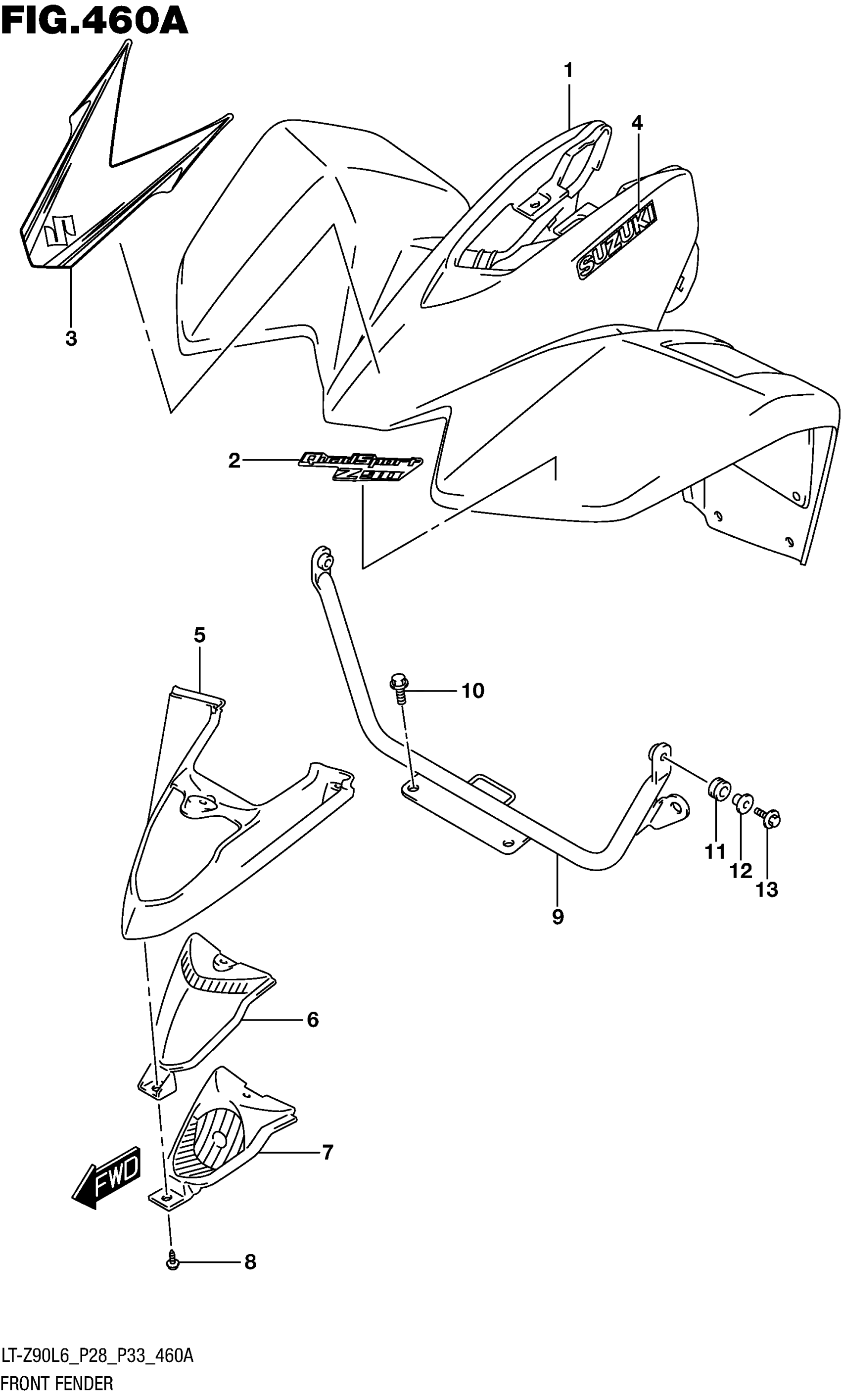

Find the part on the Front Fender diagram for your 2016 Suzuki LT-Z90L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-Z90L6 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (WHITE)

53111-08H00-30H

1
Out of stock

2

EMBLEM

68151-08H00-HEU

1
Out of stock

3

TAPE, FRONT

68155-08H30-HBT

1
Out of stock

4

EMBLEM, "SUZUKI"

68131-43G10-8YM

2

$14.47

In stock

5

COVER, CENTER (BLUE)

53118-08H00-YPW

1
Out of stock

6

COVER,LENS

53119-08H00

1
Out of stock

7

HOLDER,LENS

53117-08H00

1
Out of stock

8

SCREW

03241-0516B

3
Out of stock

9

BRACE,FRONT FENDER

53210-08H00

1
Out of stock

10

BOLT

01550-0812B

2
Out of stock

11

CUSHION

09320-09016

2
Out of stock

12

WASHER

09169-06062

2
Out of stock

13

BOLT

01550-0620A

2
Out of stock
