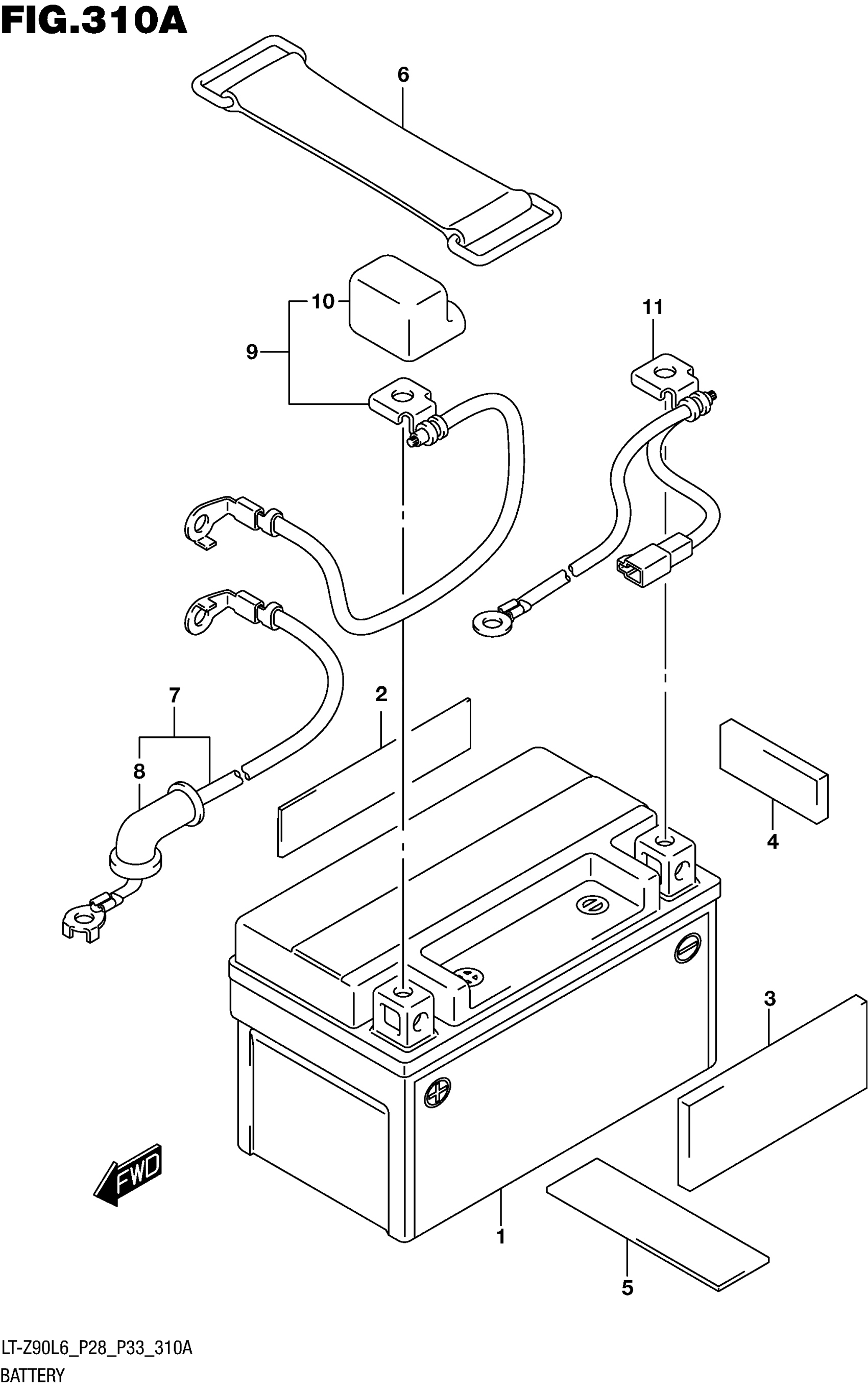

Suzuki LT-Z90L6 (2016) BATTERY (LT-Z90L6 P28) Diagram

#

Description

Price

1

BATTERY ASSY (12V,6AH) This part replaces 33610-46F00.

33610-33C80

$79.21

2

PROTECTOR (20X90X2)

33652-08H00

Unavailable

3

PROTECTOR (40X85X6)

33652-08H10

Unavailable

4

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.48

4

CUSHION, REAR FENDER REAR | PROFILE (20X45) This part replaces 33652-08420.

33651-37000

$4.48

5

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

$6.03

6

BAND, BATTERY

09462-00034

$4.24

7

WIRE,STARTER MOTOR LEAD

33810-08H00

$32.38

8

.CAP, STARTER MOTOR

31861-48B10

$6.55

9

WIRE, BATTERY PLUS

33820-08H00

Unavailable

10

.CAP, BATTERY PLUS

33624-10D00

$6.30

11

WIRE,BATTERY MINUS

33860-08H00

Unavailable
