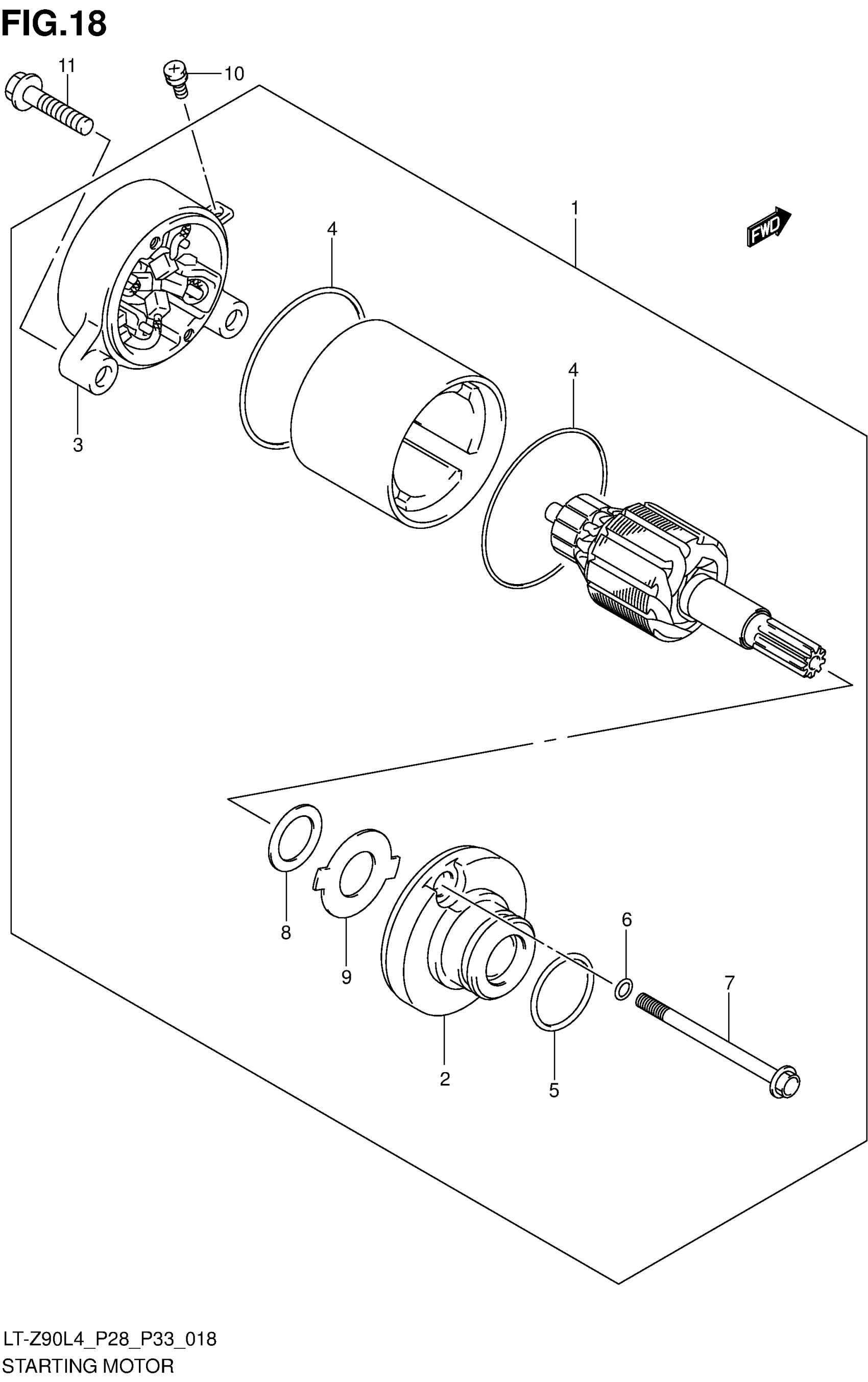

Suzuki LT-Z90L4 (2014) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-33G01

Unavailable

2

BRACKET

31150-33G00

Unavailable

3

FRAME ASSY, COMMUTATOR END

31175-33G01

Unavailable

4

.O RING

31264-05530

Unavailable

5

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

6

O RING

31156-05530

Unavailable

7

BOLT

31281-33G00

Unavailable

8

SHIM

31361-055A0

Unavailable

9

PLATE, LOCK

31361-055B0

Unavailable

10

SCREW (5X8)

09137-05004

$2.17

11

BOLT

01547-0625B

$2.45
