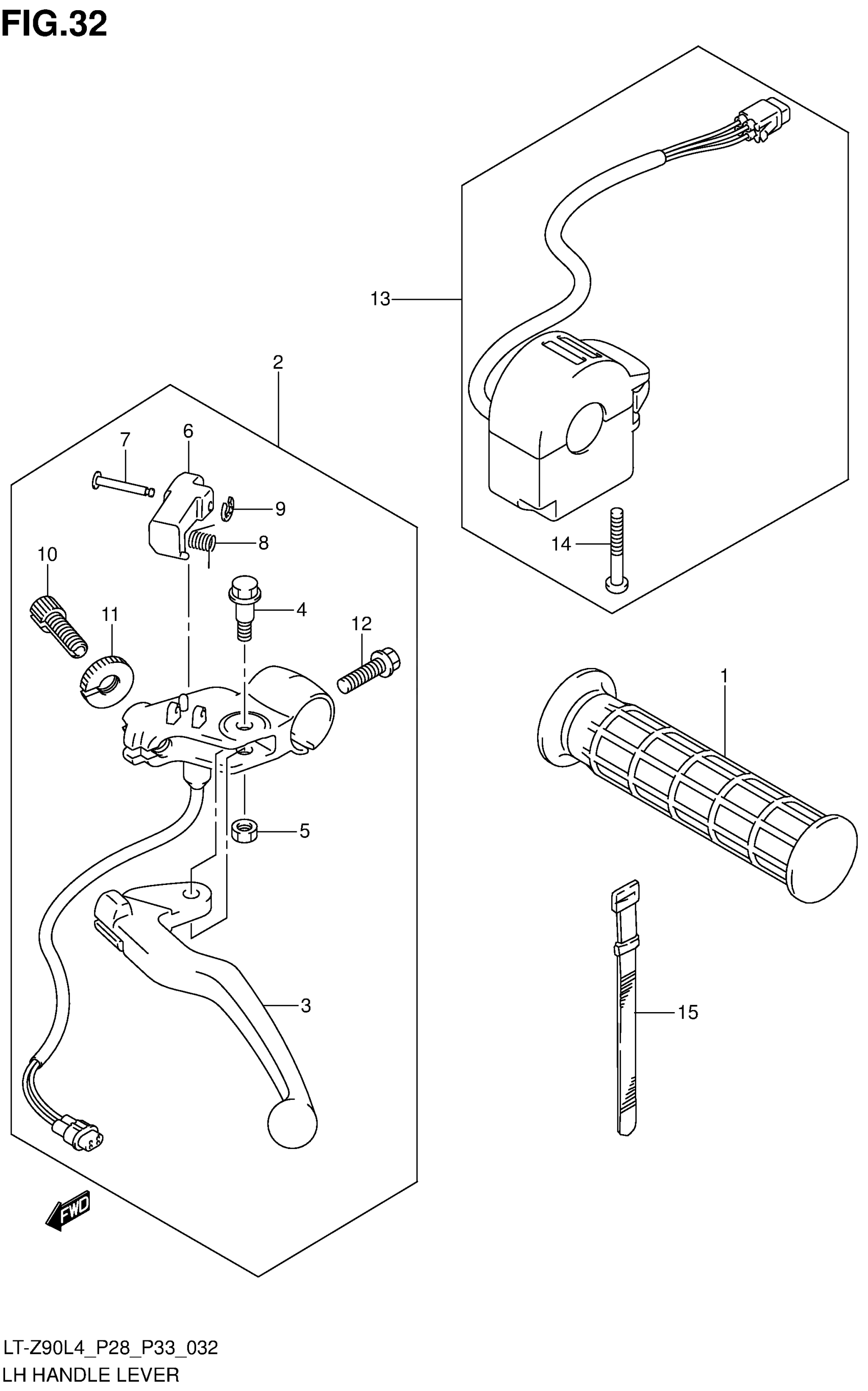

Suzuki LT-Z90L4 (2014) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-21G10

$10.15

2

LEVER ASSY,RR BRAKE

57500-08H00

$162.90

3

LEVER

57421-08H00

$37.13

4

SCREW

57431-43G00

$7.63

5

NUT

08319-2106B

$2.32

6

LOCK PLATE

57791-43G00

$9.92

7

PIN

57781-43G00

$6.00

8

SPRING

57134-43G00

$4.65

9

E RING

57432-43G00

$3.77

10

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

11

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

12

..BOLT

01547-0620B

$2.45

13

SWITCH ASSY, HANDLE LH

37400-08H10

$148.62

14

SCREW

02112-05357

$1.49

15

CLAMP (L:120)

09407-12402

$3.04
