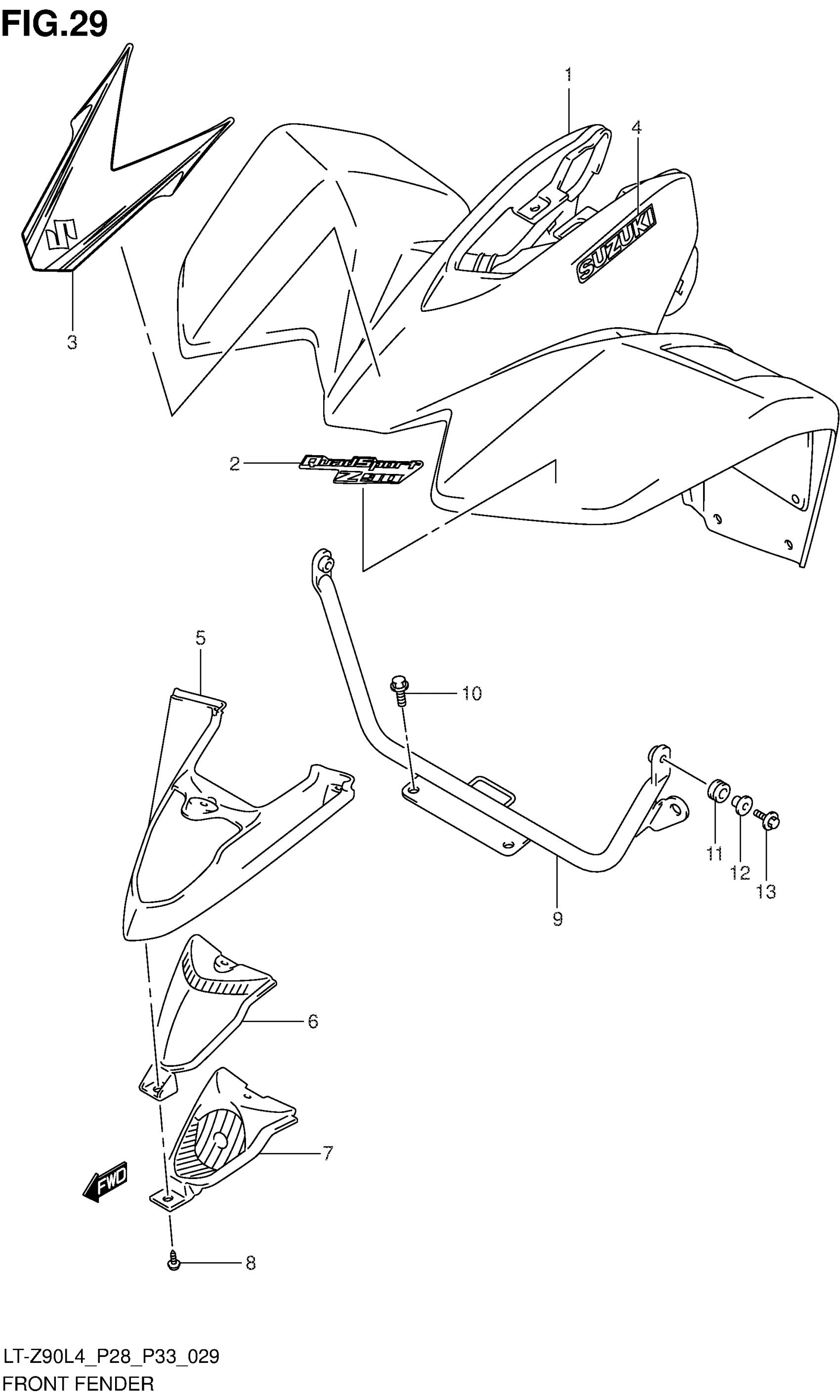

Suzuki LT-Z90L4 (2014) FRONT FENDER Diagram

#

Description
Price

1

FENDER FRONT (WHITE)

53111-08H00-30H

Unavailable

2

EMBLEM

68151-08H00-HEU

Unavailable

3

TAPE, FRONT

68155-08H30-HBT

Unavailable

4

EMBLEM, "SUZUKI"

68131-43G10-8YM

$12.82

5

COVER, CENTER (BLUE)

53118-08H00-YPW

Unavailable

6

COVER,LENS

53119-08H00

$56.93

7

HOLDER,LENS

53117-08H00

$114.97

8

SCREW

03241-0516B

$1.74

9

BRACE,FRONT FENDER

53210-08H00

Unavailable

10

BOLT

01550-0812B

$2.73

11

CUSHION

09320-09016

$1.97

12

WASHER

09169-06062

$2.50

13

BOLT

01550-0620A

$1.97
