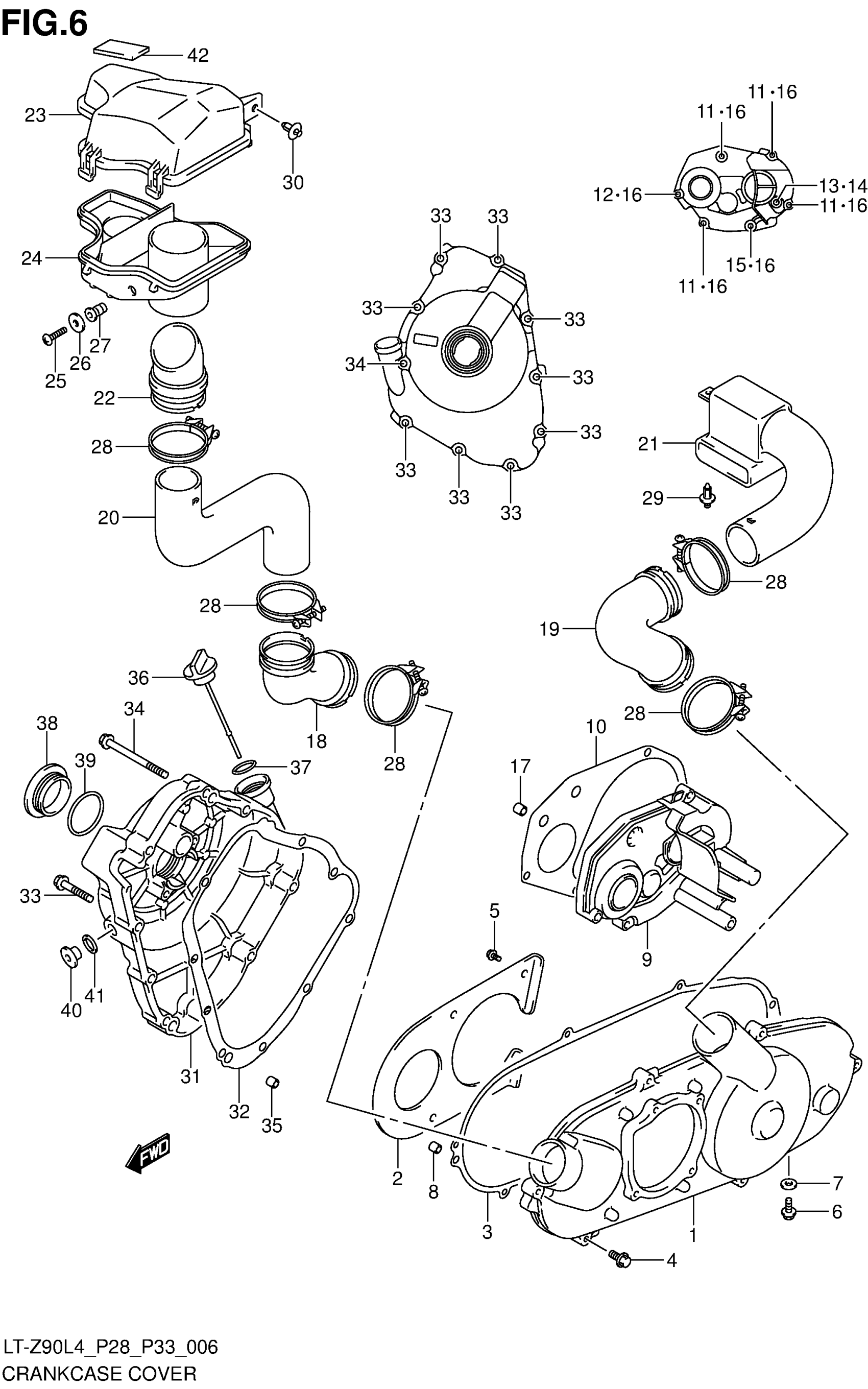

Suzuki LT-Z90L4 (2014) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-08H00

Unavailable

2

PLATE,CLUTCH COVER AIR INTAKE

11346-08H00

Unavailable

3

GASKET

11482-08H00

$63.08

4

BOLT

01547-0625B

$2.45

5

BOLT

02112-0510B

$2.08

6

PLUG, WATER DRAIN

01550-0612B

$2.39

7

GASKET

09168-06018

$1.77

8

PIN (6.2X8X11)

09206-08001

$1.78

9

COVER, GEAR BOX

11431-33G40

Unavailable

10

GASKET, GEAR BOX COVER

11484-33G40

$19.15

11

BOLT

11432-08H00

Unavailable

12

BOLT

11433-08H00

Unavailable

13

BOLT, LEVEL

01550-0812B

$2.73

14

GASKET (8.2X14X1)

09168-08016

$1.65

15

BOLT, DRAIN

01547-0695B

$3.37

16

GASKET (6.2X13X1.2)

09168-06018

$1.77

17

PIN (6.2X8X11)

09206-08001

$1.78

18

CONNECTOR,CLG DUCT FR NO.1

11385-08H00

$44.48

19

CONNECTOR,CLG DUCT RR

11386-08H00

$49.72

20

DUCT,BELT CLG FR

11387-08H00

$63.30

21

DUCT,BELT CLG RR

11398-08H00

Unavailable

22

CONNECTOR,CLG DUCT FR NO.2

11388-08H00

Unavailable

23

BOX,INDUCTION UPPER

11393-08H00

$34.63

24

BOX,INDUCTION LOWER

11394-08H00

$30.70

25

SCREW

02142-0520B

$1.78

26

WASHER

09160-05046

$1.92

27

NUT

09159-05019

$7.14

28

CLAMP This part replaces 09402-50203.

09402-50208

$4.77

29

CLIP

09409-06322-5PK

$3.10

30

CLIP

09409-07333

$2.31

31

COVER,MAGNETO

11351-08H00

Unavailable

32

GASKET

11483-33G40

$37.13

33

BOLT

01547-0630B

$2.73

34

BOLT

01547-0665B

$3.18

35

PIN (6.2X8X11)

09206-08001

$1.78

36

GAUGE,OIL LEVEL

11971-08H00

$8.59

37

O RING

09280-17003

$1.65

38

PLUG, CRANKSHAFT HOLE

09259-36016-20H

$13.80

39

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

40

PLUG, TDC

09248-12007

$6.11

41

GASKET

09168-12002

$1.59

42

CUSHION, REAR FENDER REAR This part replaces 33652-08420.

33651-37000

$4.48
