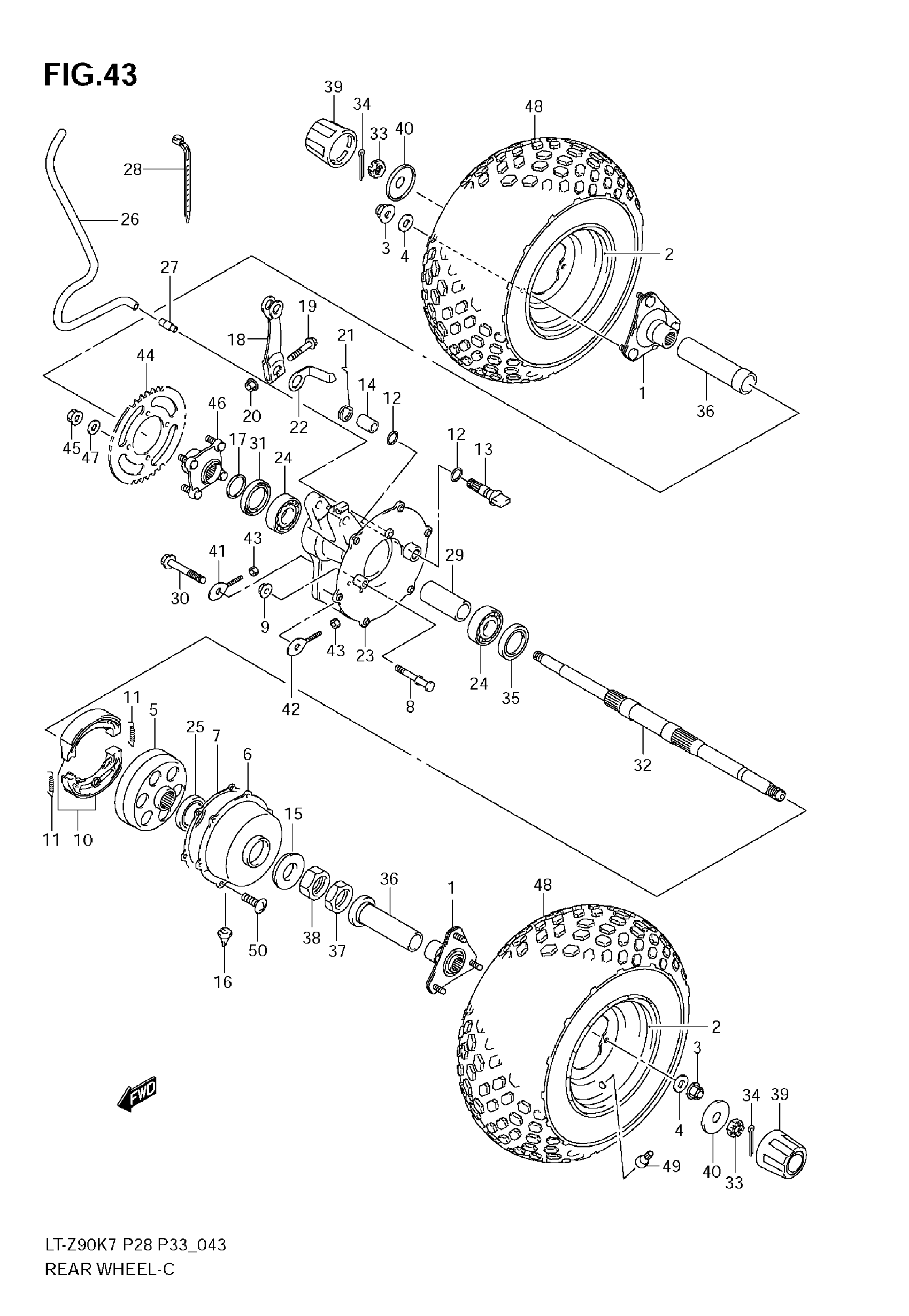

Suzuki LT-Z90 (2009) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-40B50

$132.73

2

RIM, REAR WHEEL (8X5.5AT) (SILVER)

55310-40B00-13L

$312.13

3

NUT

08316-1010B

$2.66

4

WASHER

09160-10142

$2.34

5

DRUM,REAR BRAKE

64120-40B10

$442.32

6

COVER,RR BRAKE DRUM

64130-40B10

$72.82

7

PACKING, REAR BRAKE DRUM COVER

64125-40B00

$14.32

8

PIN, REAR BRAKE ANCHOR

64231-40B00

$8.87

9

NUT, REAR BRAKE ANCHOR PIN

08316-1008B

$2.66

10

SHOE SET, BRAKE

64400-40860

$55.75

11

SPRING

64430-14600

$4.53

12

O RING

09280-14004

$1.65

13

CAM, BRAKE

64441-40B00

$21.77

14

SPACER, BRAKE CAM LEVER

64454-40B00

$4.90

15

SEAL,DUST This part replaces 64729-08H00.

64729-08H01

$44.95

16

PLUG, DRAIN

09250-11002

$2.12

17

SEAL, BRAKE DRUM INNER

09282-42001

$18.14

18

LEVER,REAR BRAKE CAM

64451-08H00

Unavailable

19

BOLT

01550-0630A

$2.32

20

NUT

08316-1006B

$2.50

21

SPRING, BRAKE CAM LEVER

64444-40B00

$4.82

22

PLATE,BK LINING INDICATOR

64492-08H00

Unavailable

23

HOUSING,RR AXLE BEARING

64721-08H00

$323.03

24

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

25

DUST, L

09283-42015

$14.81

26

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

27

JOINT, BREATHER HOSE

09364-06004

Unavailable

28

CLAMP, BRAKE BREATHER HOSE

09407-14403

$2.26

29

SPACER,REAR AXLE BEARING

64731-08H00

$17.83

30

BOLT, AXLE BEARING HOUSING

09103-14033

Unavailable

31

SEAL, DUST, R OUTER

09286-42001

$14.18

32

AXLE,REAR

64711-08H00

$711.80

33

NUT

09141-16004

$7.05

34

COTTER PIN

04111-4035A

$1.49

35

SEAL, DUST, R INNER

09283-42016

$23.05

36

SPACER,REAR AXLE OUTER

64741-08H00

$20.52

37

NUT,REAR AXLE

64871-08H00

Unavailable

38

NUT

64872-08H00

Unavailable

39

CAP, WHEEL CENTER

54725-18A00

$10.28

40

HOLDER,CENTER CAP

64726-08H00

Unavailable

41

ADJUSTER,CHAIN,R

61411-08H00

Unavailable

42

ADJUSTER,CHAIN,L

61421-08H00

Unavailable

43

NUT

08319-3108A

$2.32

44

SPROCKET,REAR (NT:24)

64511-08H00

$92.70

45

NUT, REAR SPROCKET

08319-3108A

$2.32

46

FLANGE, REAR SPROCKET MOUNTING

64610-08H00

Unavailable

47

WASHER

08322-0108B

$2.34

48

TIRE,REAR (AT19X7-8,DI-K549) This part replaces 65100-40B51.

65100-40B60

$269.70

49

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

50

BOLT, RR BRAKE DRUM COVER

02142-0608B

$1.77
