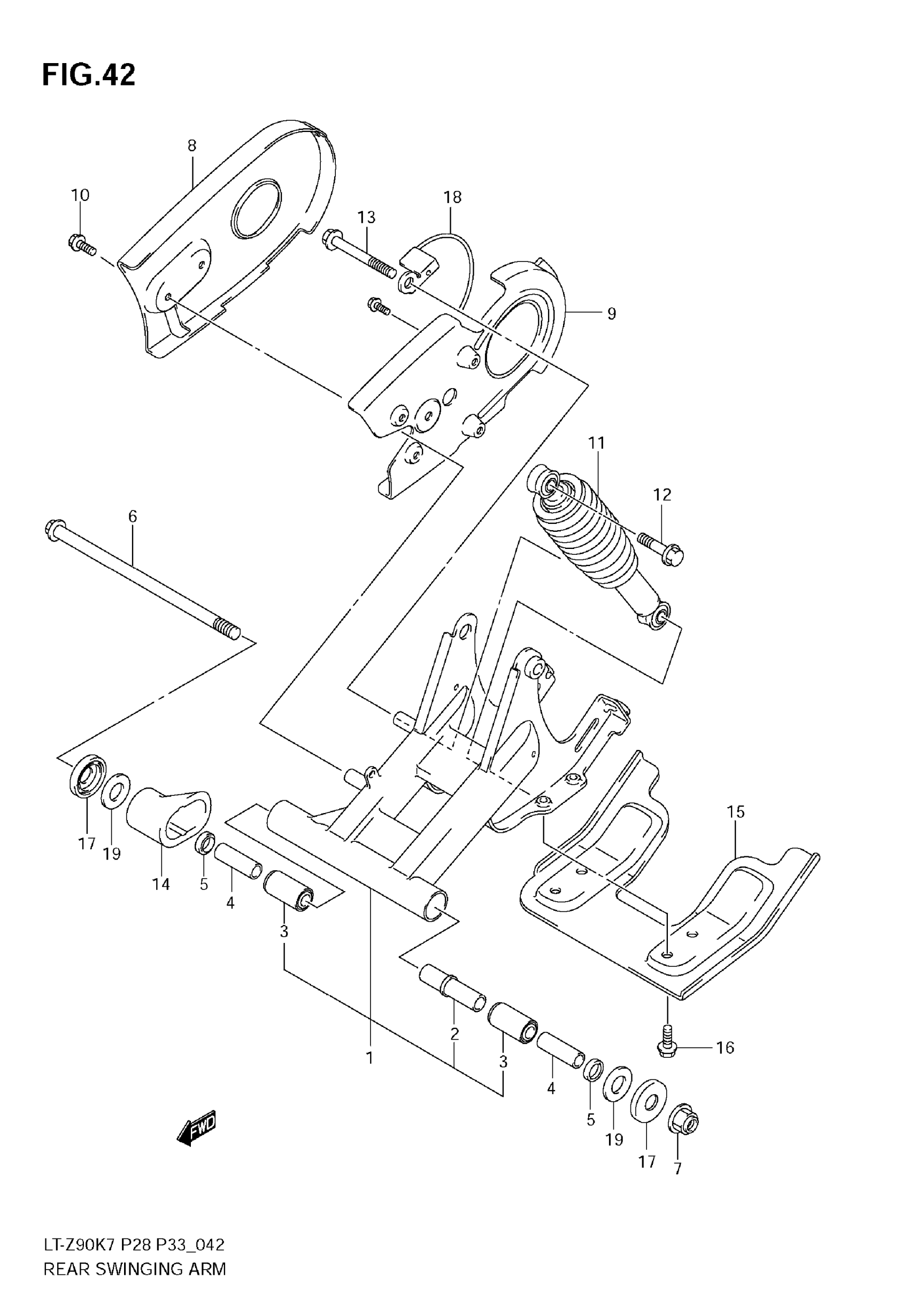

Suzuki LT-Z90 (2009) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK) | Includes Item(s) 2 - 5

61000-08H00-019

$1,062.68

2

SPACER

61280-43G00

$15.75

3

BUSH

61261-08H00

$16.04

4

SPACER,RR SWGARM PIVOT OUTER

61251-08H00

$28.27

5

SEAL,RR SWGARM PIVOT

61262-08H00

$5.11

6

SHAFT,RR SWGARM PIVOT

61211-08H00

$28.27

7

NUT

08319-3112A

$3.76

8

CASE,CHAIN

61311-08H00

Unavailable

9

CASE,CHAIN INNER

61313-08H00

Unavailable

10

SCREW

09111-06066

$2.62

11

ABSORBER ASSY, RR SHOCK (RED) | FOR YU1

62100-08H00-YKS

Unavailable

11

ABSORBER ASSY, RR SHOCK (WHITE) | FOR 30H

62100-08H00-28W

Unavailable

11

ABSORBER ASSY, RR SHOCK (SILVER) | FOR 019

62100-08H00-YVN

Unavailable

12

BOLT, UPPER | UPPER

09103-10049

$7.63

13

BOLT, LOWER | LOWER

09103-12097

Unavailable

14

BUFFER,CHAIN TOUCH DEFENSE

61273-08H00

$19.08

15

GUARD,SWGARM UNDER

61391-08H00

Unavailable

16

BOLT, GUARD

09106-08179

$7.05

17

SEAL,DUST This part replaces 61262-21D00.

61262-21D01

$13.05

18

GUIDE,CHAIN

61340-08H00

Unavailable

19

SHIM (12.5X27.8X0.8)

09181-12010

Unavailable
