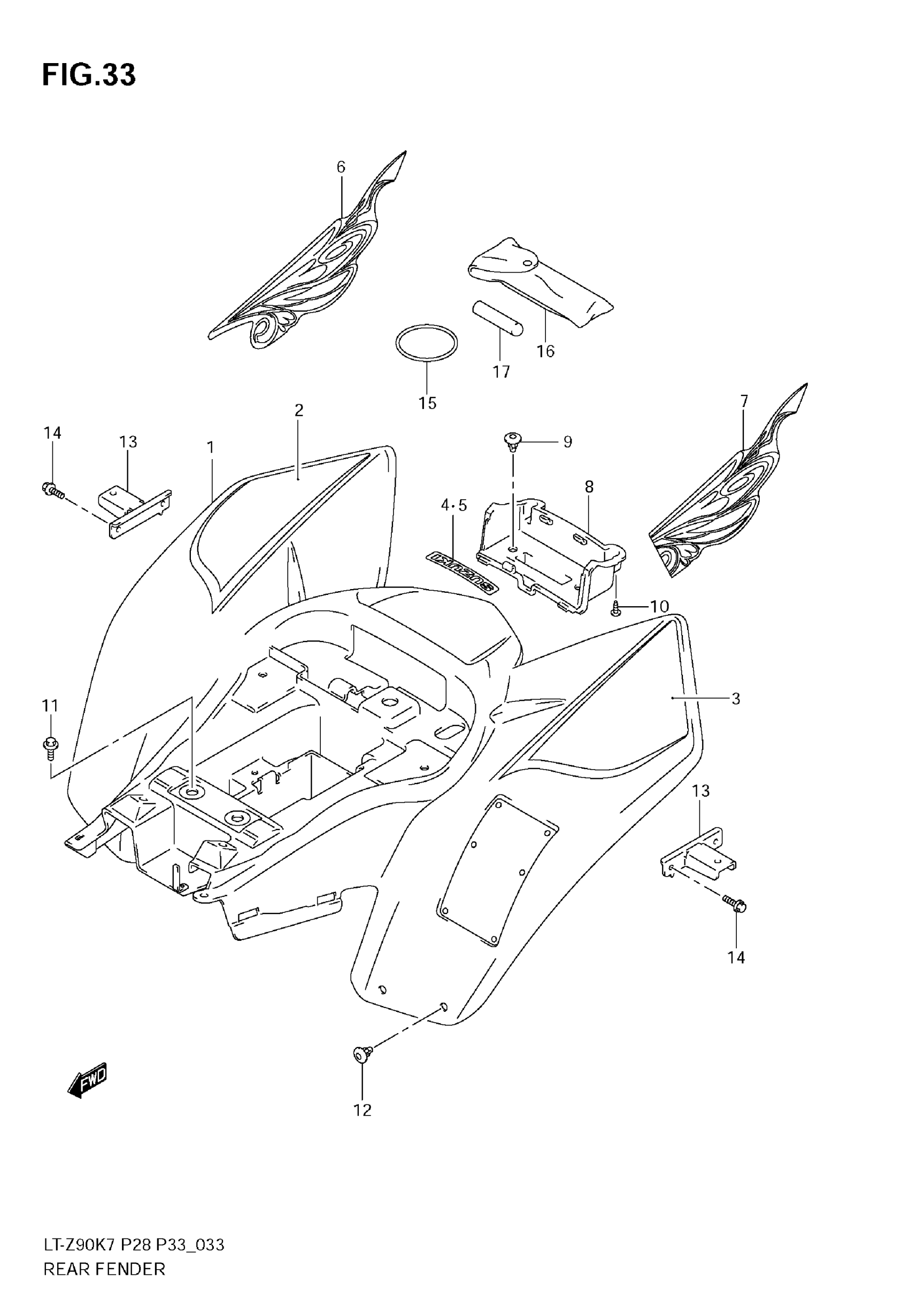

Suzuki LT-Z90 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER,RR (YELLOW)

63111-08H00-YU1

$647.78

1

FENDER, REAR (WHITE)

63111-08H00-30H

Unavailable

1

FENDER, REAR (BLACK) | LT-Z90Z K9

63111-08H00-019

Unavailable

2

TAPE, RH | MODEL K7 FOR YU1

68175-08H00-DSE

Unavailable

2

TAPE, RH | MODEL K7 FOR 30H

68175-08H00-DSF

Unavailable

3

TAPE, LH | MODEL K7 FOR YU1

68176-08H00-DSE

Unavailable

3

TAPE, LH | MODEL K7 FOR 30H

68176-08H00-DSF

Unavailable

4

EMBLEM | FOR YU1

68721-09A00-GY8

$12.82

4

EMBLEM | FOR 30H

68721-09A00-8YM

$12.82

5

EMBLEM | LT-Z90Z K9

68721-09A00-CT5

Unavailable

6

TAPE, RH | LT-Z90Z K9

68175-08HA0-GJN

Unavailable

7

TAPE, RH | LT-Z90Z K9

68176-08HA0-GJN

Unavailable

8

FENDER,REAR LOWER

63121-08H00

Unavailable

9

CLIP

09409-07333

$2.31

10

SCREW

03541-0516A

$1.49

11

BOLT, FRONT

09111-06081

$4.09

12

CLIP

09409-08335

$2.47

13

REINF,REAR FENDER

63130-08H00

Unavailable

14

BOLT

01550-0620A

$1.97

15

BAND, TOOL

09280-70004

$3.85

16

TOOL ASSY

96510-08H00

Unavailable

17

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
