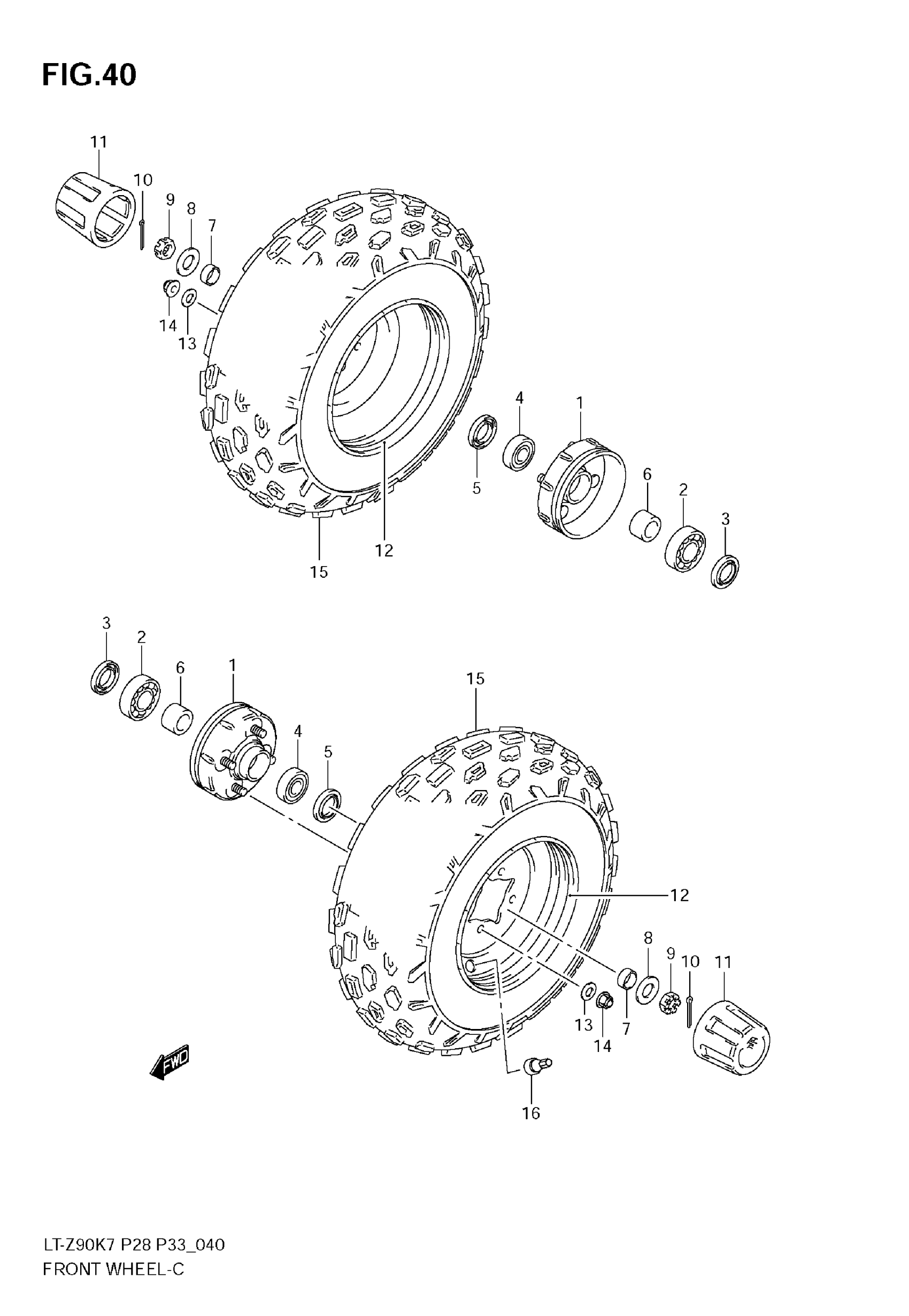

Suzuki LT-Z90 (2009) FRONT WHEEL Diagram

HUB,FRONT

54110-08H00

$271.50

BEARING, INNER (17X40X12)

09262-17031

$33.65

DUST SEAL, FRONT HUB INNER

09283-22028

$8.52

BEARING, OUTER (15X35X11)

09262-15024

$24.83

DUST SEAL, FRONT HUB OUTER

09283-20057

$6.02

SPACER,FRONT HUB BEARING INNE

54731-08H00

Unavailable

SPACER,FRONT AXLE

54741-40B00

$4.82

WASHER

09160-14009

$2.82

NUT

08314-4014B

$4.24

PIN | MODEL K7/K8

04111-3030A

$1.49

COTTER PIN | MODEL K9

04111-3025A

$1.49

CAP, WHEEL, CENTER

54725-18A00

$10.28

RIM, FRONT WHEEL (8X5.5AT) (SILVER)

55310-08H00-13L

$215.92

WASHER

09160-10142

$2.34

NUT, WHEEL RIM

08316-1010B

$2.66

TIRE,FRONT (AT19X7-8,DI-K149A This part replaces 55110-08H00.

55110-08H10

$245.77

VALVE ASSY, WHEEL TR413

43130-24A00

$8.85
