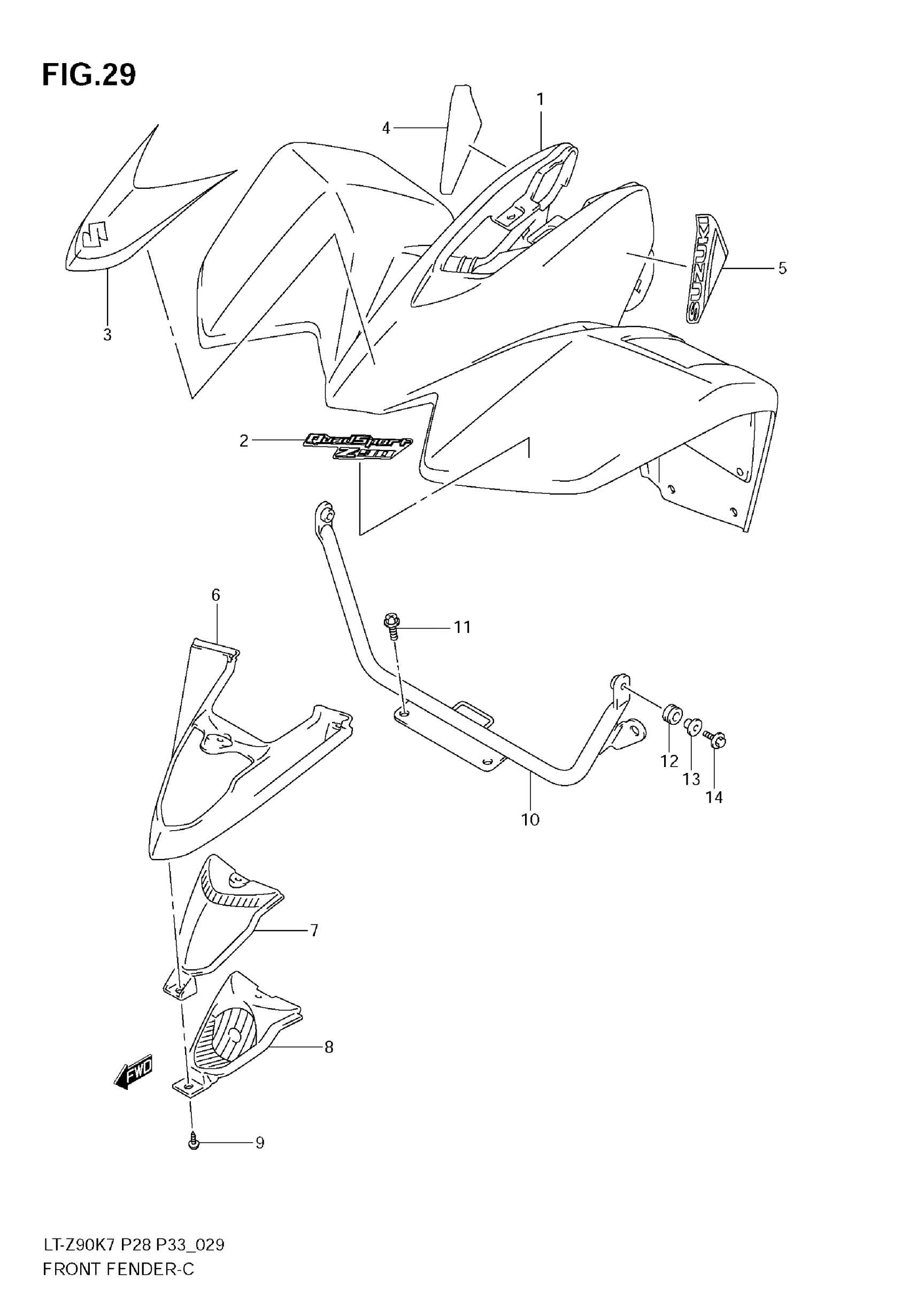

Suzuki LT-Z90 (2009) FRONT FENDER (MODEL K7) Diagram

#

Description
Price

1

FENDER,FR (YELLOW)

53111-08H00-YU1

$414.60

1

FENDER, FRONT (WHITE)

53111-08H00-30H

Unavailable

2

EMBLEM | FOR YU1

68151-08H00-DCP

$20.95

2

EMBLEM | FOR 30H

68151-08H00-DSG

Unavailable

3

TAPE, FRONT | FOR YU1

68155-08HA0-DSD

Unavailable

3

TAPE, FRONT | FOR 30H

68155-08HA0-DSC

Unavailable

4

TAPE, SIDE RH | FOR YU1

68155-08H00-DSY

Unavailable

4

TAPE, SIDE RH | FOR 30H

68155-08H00-DSF

Unavailable

5

TAPE, SIDE LH | FOR YU1

68156-08H00-DSY

Unavailable

5

TAPE, SIDE LH | FOR 30H

68156-08H00-DSF

Unavailable

6

COVER,FRONT FENDER CENTER (YE

53118-08H00-YU1

$55.78

6

COVER, CENTER (WHITE)

53118-08H00-30H

Unavailable

7

COVER,LENS

53119-08H00

$56.93

8

HOLDER,LENS

53117-08H00

$114.97

9

SCREW, BRACKET This part replaces 03241-05163.

03241-0516A

$1.49

10

BRACE,FRONT FENDER

53210-08H00

Unavailable

11

BOLT (8X12)

01550-0812A

$2.32

12

CUSHION

09320-09016

$1.97

13

WASHER

09169-06062

$2.50

14

BOLT

01550-0620A

$1.97
