Description

Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3

31800-08H00

$118.93

2

COVER

31861-38G00

$4.88

3

FUSE (10A)

09481-10501

$2.06

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-08H01

$108.15

6

CDI UNIT

32900-08H00

$392.35

7

PROTECTOR, CDI (30X50X3.0)

33652-36000

$2.30

8

COIL ASSY,IGNITION

33410-36G00

$108.12

9

BOLT

02162-0620B

$2.28

10

CAP ASSY, SPARK PLUG

33510-20E00

$34.60

11

SEAL, SPARK PLUG

33541-47D00

$7.83

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

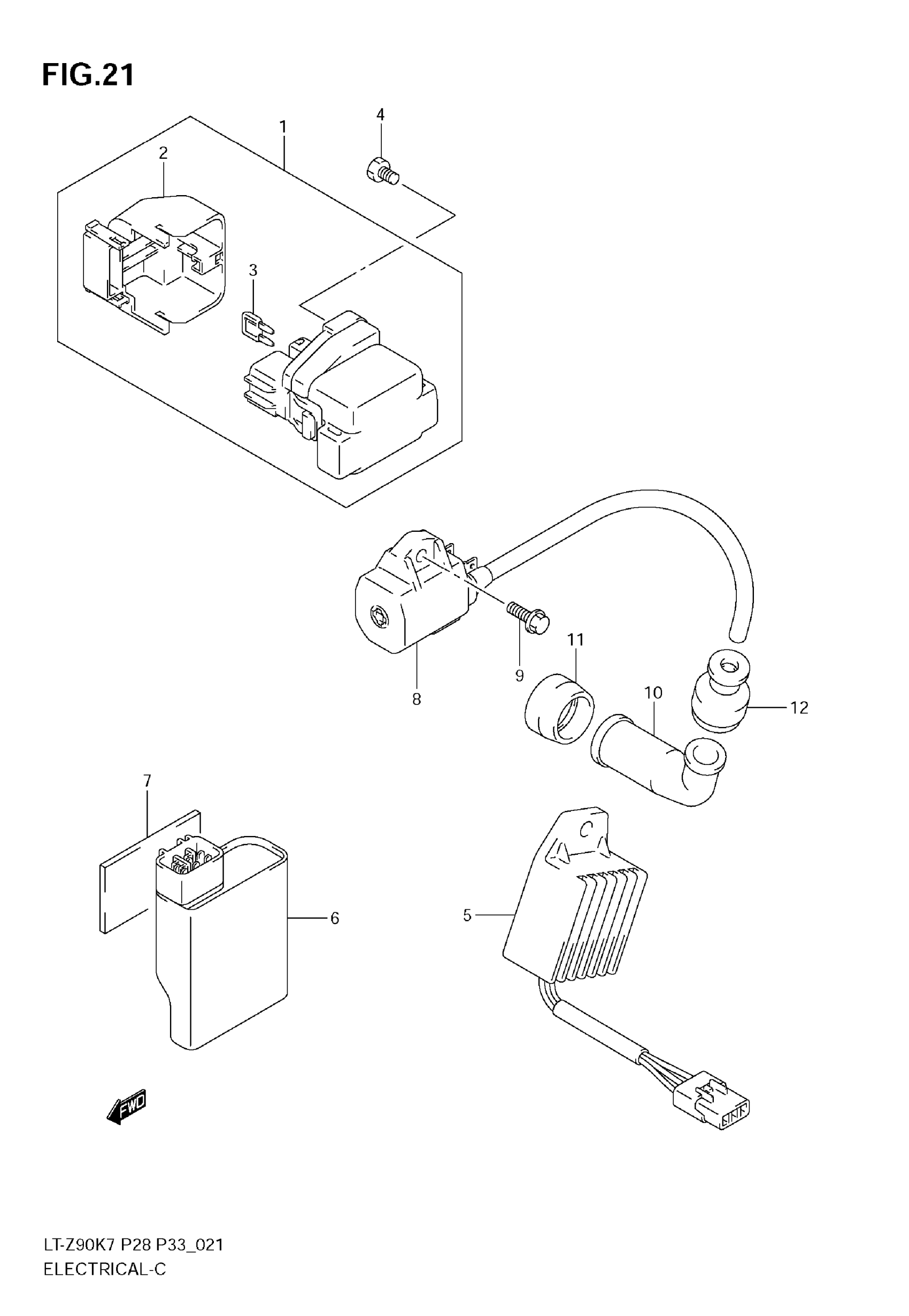

Suzuki LT-Z90 (2009) ELECTRICAL Diagram
