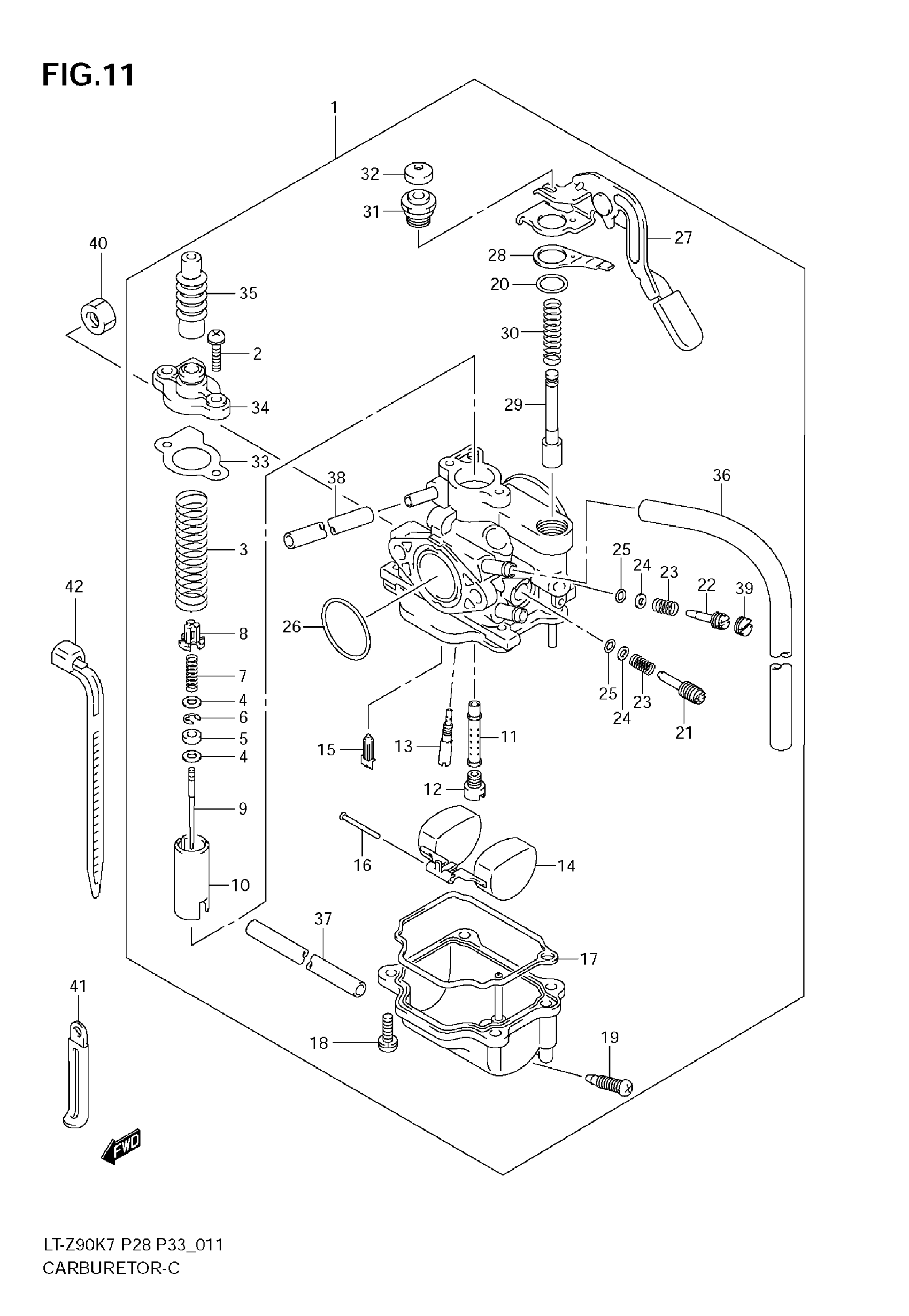

Suzuki LT-Z90 (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 39 This part replaces 13200-08H00.

13200-08H01

$415.10

2

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

3

SPRING

13573-08H00

Unavailable

4

WASHER

13382-23F00

$4.45

5

RING

13387-23F00

$6.05

6

E RING

13533-98410

$5.31

7

SPRING

13481-23F00

$5.67

8

HOLDER

13418-12F40

$7.20

9

NEEDLE, JET

13383-08H00

$18.80

10

PISTON VALVE

13511-08H00

$86.82

11

JET, NEEDLE

13341-08H00

$41.63

12

JET, MAIN

09491-80011

$16.57

13

JET, PILOT

09492-17012

$24.42

14

FLOAT ASSY

13250-06410

$36.73

15

NEEDLE ASSY

13370-09D00

$32.73

16

PIN

13254-29C50

Unavailable

17

O RING

13258-30A00

$10.60

18

SCREW

13601-04148

$2.81

19

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

20

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

21

ADJUSTER

13267-47A00

$7.08

22

ADJUSTER

13269-08H00

$13.05

23

SPRING

13494-09410

$4.35

24

WASHER

13291-29900

$1.98

25

O-RING This part replaces 13295-29900.

13295-29901

$4.34

26

O RING

09280-24006

$1.72

27

LEVER ASSY

13420-08H00

$55.23

28

PLATE

13421-08H00

Unavailable

29

PLUNGER

13411-08H00

$19.15

30

SPRING

13417-43G00

$4.52

31

HOLDER

13418-08H00

$25.18

32

CAP

13416-46710

Unavailable

33

GASKET

13249-30A10

$3.70

34

TOP CAP

13261-09G20

Unavailable

35

CAP

13681-36GA0

$12.80

36

HOSE | L:600!225

09352-50901-600

$8.06

37

HOSE | L:600!250 This part replaces 09354-25703-600.

09355-25001-600

Unavailable

38

HOSE

13683-08H00

Unavailable

39

PLUG

13281-05A00

$4.60

40

NUT

09140-06023

$2.06

41

CLAMP, OVERFLOW HOSE

09404-06429

$1.83

42

CLAMP, AIR VENT HOSE

09407-14403

$2.26
