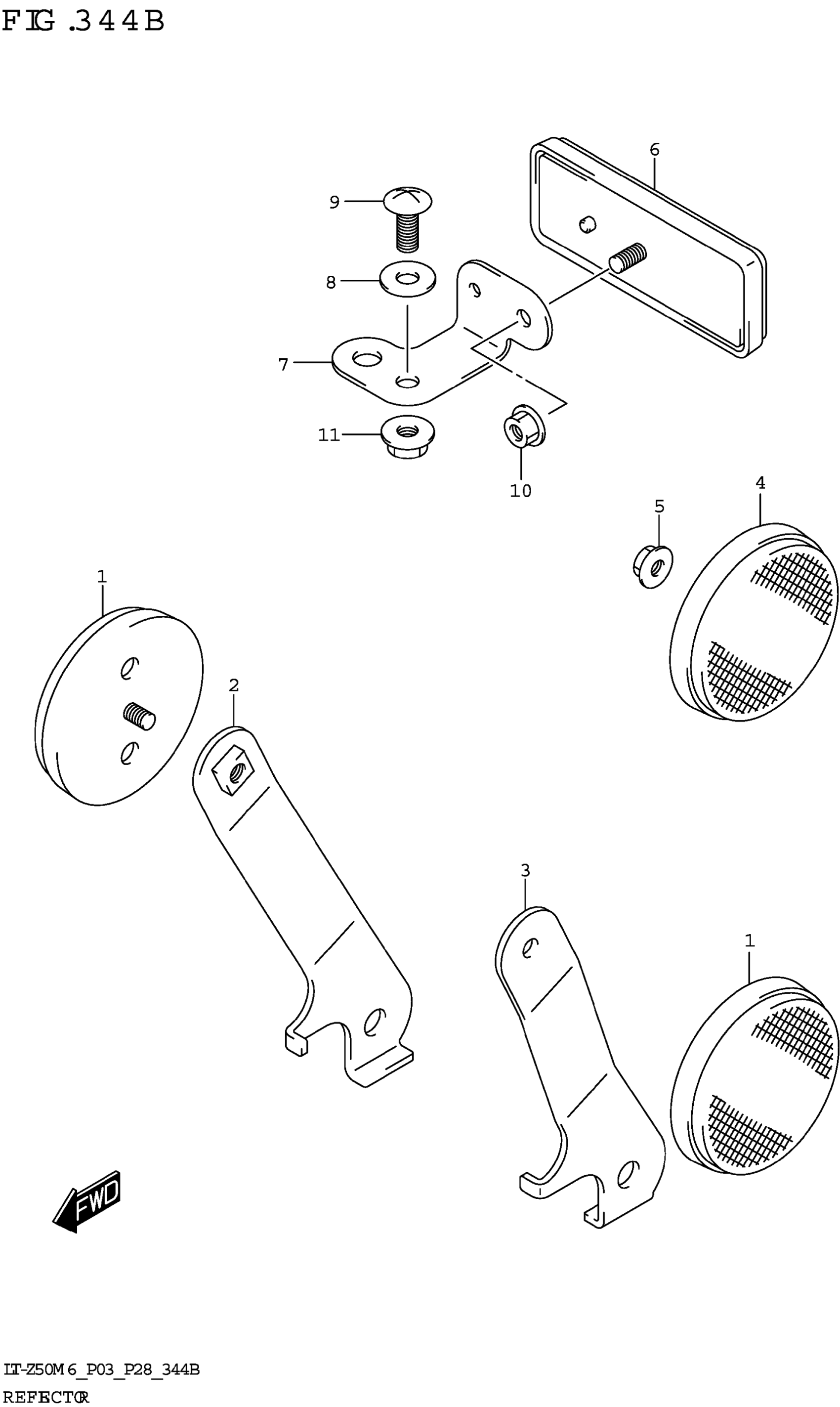

Suzuki LT-Z50M6 (2026) REFLECTOR (P28) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

2

BRACKET,FRONT SIDE REFLECTOR,

35956-43F10

Unavailable

3

BRACKET,FRONT SIDE REFLECTOR,

35957-43F10

Unavailable

4

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

5

NUT

08316-1005B

$2.50

6

REFLECTOR ASSY,RR

35970-07F01

$20.88

7

BRACKET,REAR RR

35974-43G00

$7.57

8

WASHER (6.5X16X1.2)

09160-06153

$1.65

9

SCREW

02142-0616B

$1.78

10

NUT

08316-1005B

$2.50

11

NUT

08316-1006B

$2.50
