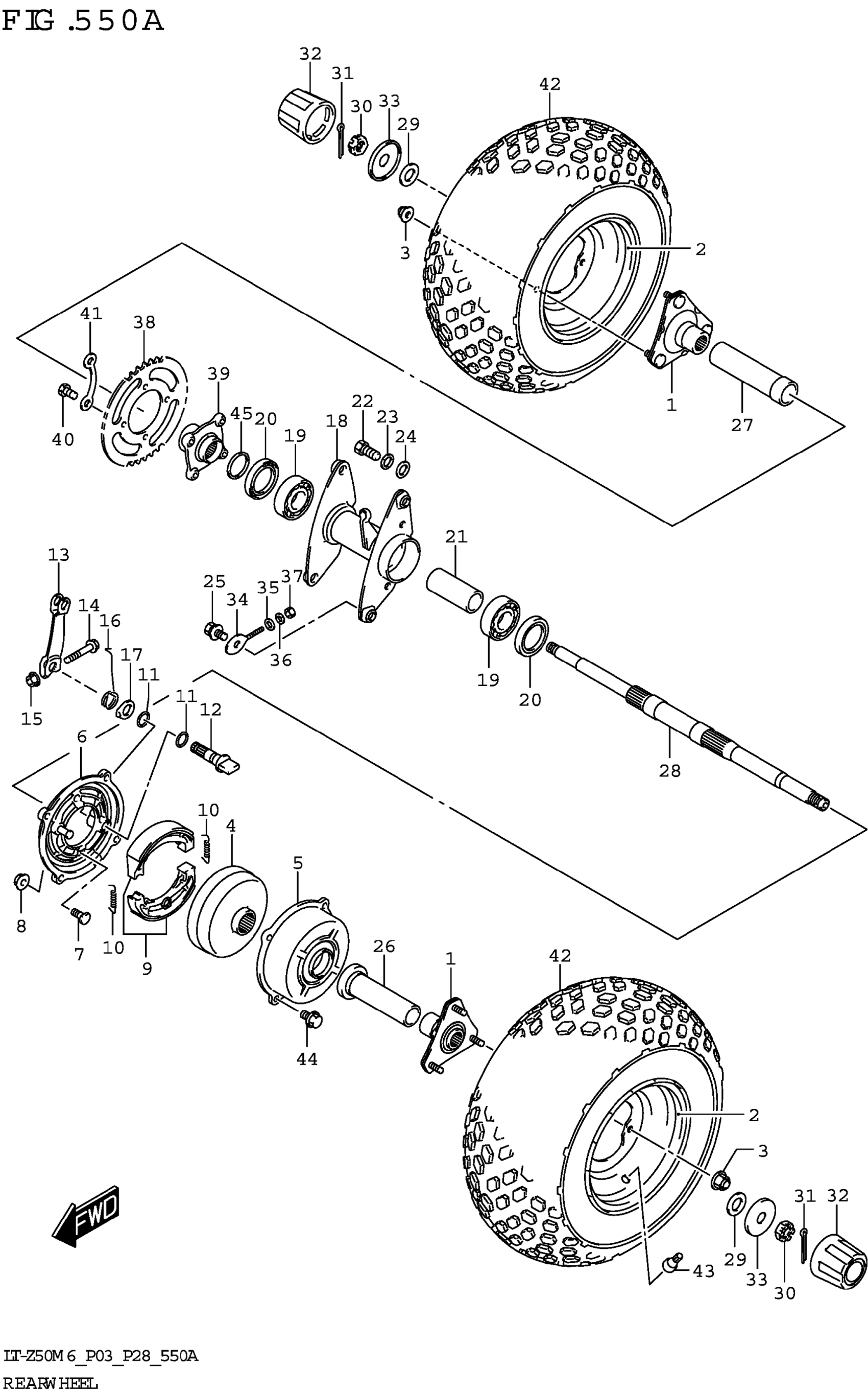

Suzuki LT-Z50M6 (2026) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR WHEEL

64110-43F00

$145.88

2

RIM,REAR WHEEL,7X6.0AT (7X6.0 | T,SILVER)

65310-43F00-13L

$213.37

3

NUT

08319-3108A

$2.32

4

DRUM,REAR BRAKE

64121-43F00

$158.57

5

COVER,REAR BRAKE DRUM

64123-43F00

Unavailable

6

PANEL,REAR BRAKE ANCHOR

64210-43G00

Unavailable

7

BOLT

09119-08091

Unavailable

8

NUT

08319-3108A

$2.32

9

SHOE SET, BRAKE

54401-43840

$32.74

10

.SPRING (L:37.8)

09443-07044

$3.04

11

O RING, OIL GALLERY This part replaces 09280-12002.

09280-12012

$4.64

12

CAM,REAR BRAKE

64441-43G00

$25.33

13

LEVER,REAR BRAKE CAM

64451-43F01

Unavailable

14

BOLT (6X32)

09103-06135

$2.53

15

NUT

08316-1006B

$2.50

16

SPRING,RR BRAKE CAM LEVER

64484-43G00

$9.00

17

PLATE,BRAKE LINING INDICATOR

64492-43F00

Unavailable

18

HOUSING,REAR AXLE BRG

64720-43G00

Unavailable

19

BEARING

09262-28063

$21.63

20

SEAL,OIL (35X52X8)

09283-35005

$8.09

21

SPACER,RR AXLE BRG

64731-43G00

Unavailable

22

BOLT

01500-1020B

$3.16

23

WASHER,LOCK

09162-10010

$3.72

24

WASHER

08322-0110B

$2.34

25

BOLT

01580-1025B

$4.52

26

SPACER,REAR AXLE,L

64750-43G00

Unavailable

27

SPACER,REAR AXLE,R

64741-43G00

Unavailable

28

AXLE,REAR

64711-43G00

Unavailable

29

WASHER,REAR AXLE

64723-02410

$4.52

30

NUT

08314-4016B

$5.37

31

PIN

04111-4030A

$1.49

32

CAP,WHEEL CENTER

54725-18A00

$10.28

33

HOLDER,CENTER CAP

64726-40B00

$4.02

34

ADJUSTER,CHAIN

61411-43G00

$6.82

35

WASHER

08322-0106B

$2.26

36

WASHER,LOCK

08321-0106B

$2.70

37

NUT

08310-0006B

$2.34

38

SPROCKET,REAR (NT:37)

64511-43G00

$60.75

39

FLANGE,REAR SPROCKET MTG

64611-43F00

$135.53

40

BOLT (M8X16)

09100-08284

$3.87

41

WASHER

09169-08012

$2.53

42

TIRE (AT16X8-7)

55110-43F10

$191.97

43

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

44

BOLT

01547-0610B

$2.45

45

RING,SNAP

09380-23001

Unavailable
