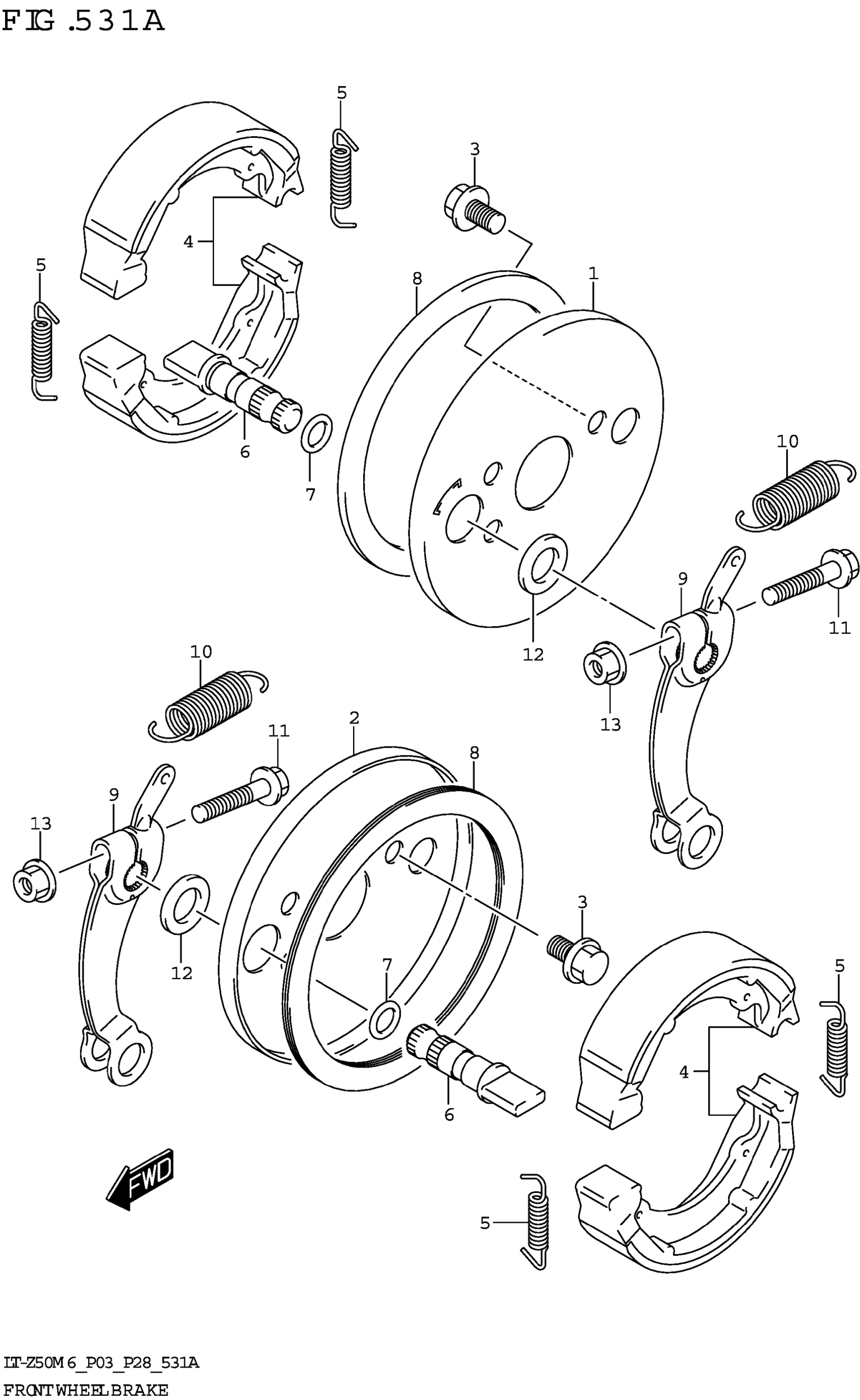

Suzuki LT-Z50M6 (2026) FRONT WHEEL BRAKE Diagram

#

Description
Price

1

PLATE,FRONT BRAKE,R

54511-43F00

Unavailable

2

PLATE,FRONT BRAKE,L

54811-43F00

Unavailable

3

BOLT

01547-0610B

$2.45

4

SHOE SET,BRAKE

54400-40810

$17.69

5

SPRING, BRAKE SHOE

09443-06029

$2.44

6

CAM, FRONT BRAKE

54441-02301

$16.87

7

O-RING (D:1.9,ID:9.8)

09280-10016

$3.37

8

SEAL,FRONT BRAKE DUST

54124-43F00

$32.67

9

LEVER,FRONT BRAKE CAM

54450-43F00

Unavailable

10

SPRING

09443-10044

$5.18

11

BOLT (L:27)

09103-05012

$2.38

12

WASHER

08322-0110B

$2.34

13

NUT

08316-1005B

$2.50
