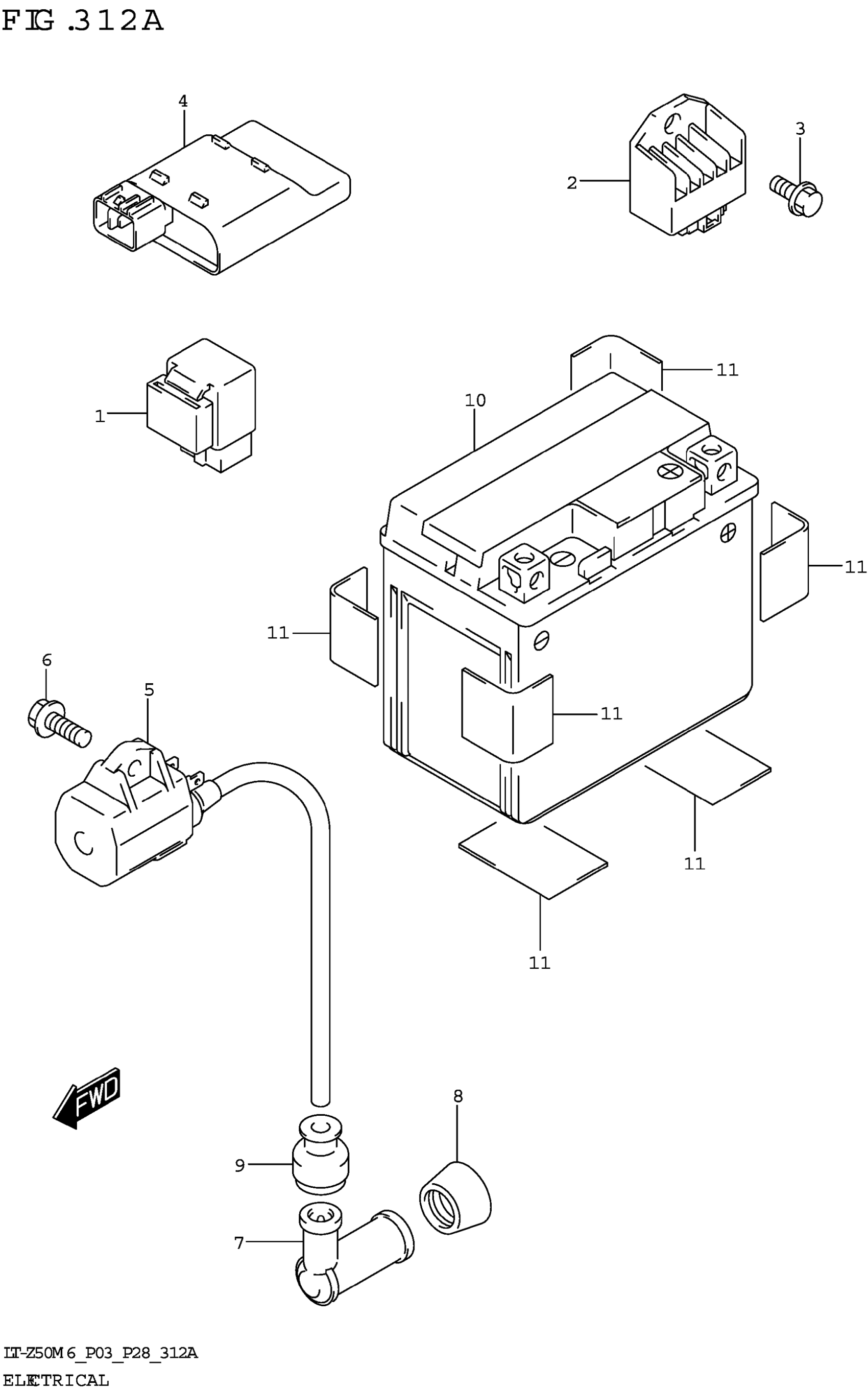

Suzuki LT-Z50M6 (2026) ELECTRICAL (P03) Diagram

RELAY ASSY,STARTING MOTOR

31800-40B02

$29.27

RECTIFIER ASSY

32800-41H01

$138.38

BOLT

01550-0612B

$2.39

CDI UNIT

32900-43G10

$405.63

COIL ASSY,IGNITION

33410-36G00

$108.12

SCREW

02162-0620B

$2.28

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

SEAL, SPARK PLUG

33541-38210

$4.68

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

BATTERY ASSY,YTX5L-BS,12V4.2A | (YTX5L-BS,12V4.2AH)

33610-40B20

$58.55

CUSHION,30X40X2

33652-36110

Unavailable
