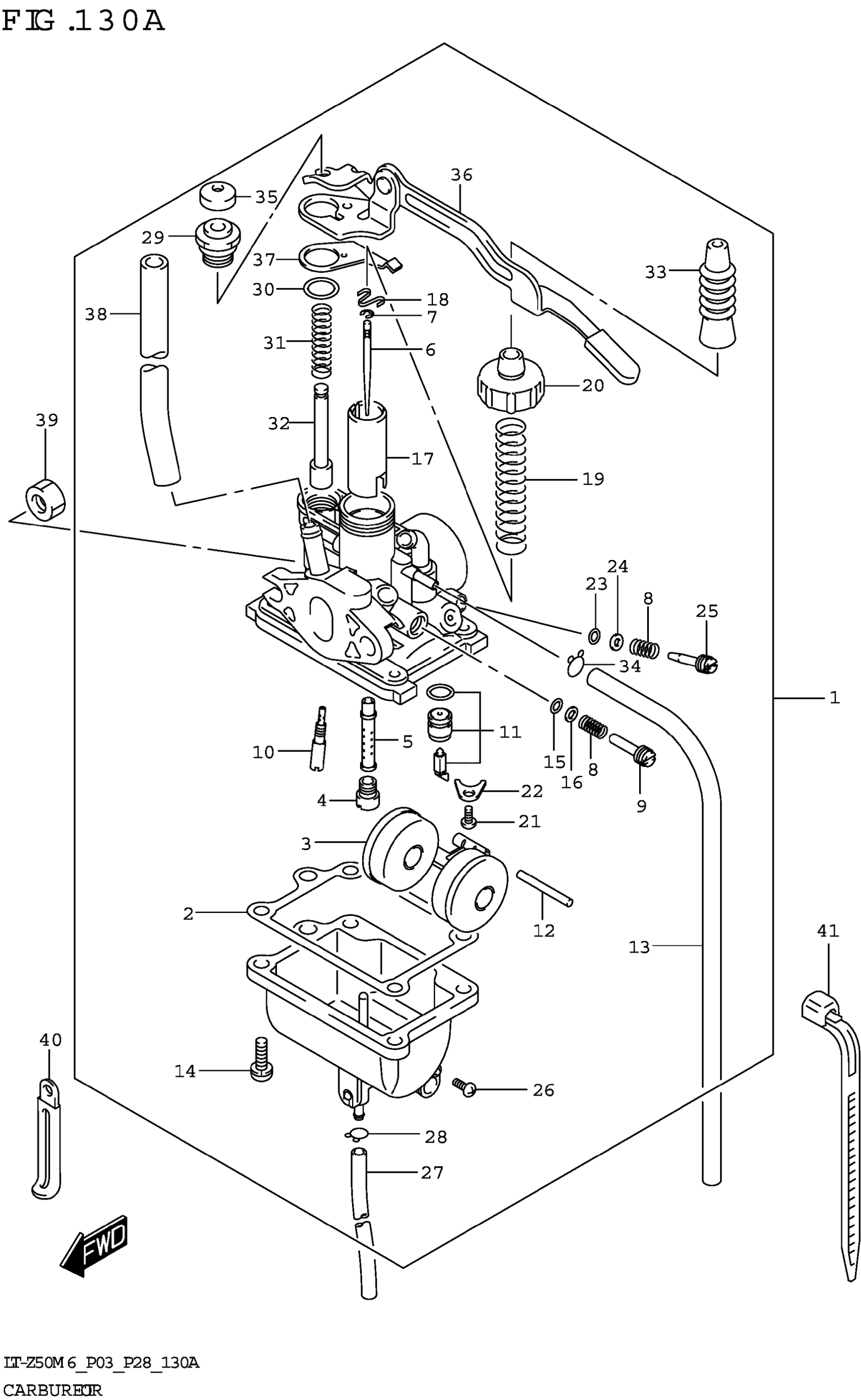

Suzuki LT-Z50M6 (2026) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-43G01

$245.62

2

.GASKET

13251-02410

$5.36

3

.FLOAT

13250-02500

$26.91

4

.JET,MAIN

13347-43G00

$17.37

5

.JET,NEEDLE

13349-43G00

$24.87

6

.NEEDLE,JET

13383-43G00

$19.15

7

.CLIP,NEEDLE

13394-40D00

$5.43

8

.SPRING

13268-35010

$4.48

9

.SCREW,THROTTLE STOP

13483-16A01

$16.25

10

.JET,PILOT,12.5 (#12.5)

09492-12003

$17.08

11

.VALVE ASSY,NEEDLE

13370-36GA1

$48.93

12

.PIN,FLOAT

13254-20010

$4.28

13

.HOSE (5X10X600)

09355-50002-600

Unavailable

14

.SCREW

13601-04148

$2.81

15

.WASHER

13291-35010

$3.56

16

.O-RING

13295-33010

$4.48

17

.VALVE,PISTON

13501-43G00

Unavailable

18

.SEAT,THROTTLE VALVE SPRING

13581-04010

$7.80

19

.SPRING, THRPTTLE VALVE

13573-02330

$11.30

20

.CAP

13261-28B00

Unavailable

21

.SCREW

02112-0306B

$1.59

22

.PLATE,NEEDLE VALVE FITTING

13373-46710

$6.17

23

O-RING

13295-29901

$4.34

24

.WASHER (14X17)

13291-29900

$1.98

25

.ADJUSTER (2,0)

13269-43G00

$13.05

26

.SCREW,DRAIN

13247-09G10

$6.00

27

.HOSE (5X10X600)

09355-50002-600

Unavailable

28

.CLIP

13529-98011

$3.08

29

.CLIP

13418-43G00

Unavailable

30

.O RING

13278-02330

$2.82

31

.SPRING

13417-43G00

$4.52

32

.PLUNGER ASSY

13411-28700

$16.87

33

.CAP

13681-36GA0

$12.80

34

.CLIP

09401-08410

$1.84

35

.CAP

13416-46711

$2.58

36

.LEVER ASSY

13420-43G00

Unavailable

37

.PLATE,SPRING

13426-43G00

Unavailable

38

.HOSE

13683-24A41

$9.20

39

NUT (6X3.6)

09140-06023

$2.06

40

CLAMP (L:45)

09404-06429

$1.83

41

CLAMP (L:125)

09407-14403

$2.26
