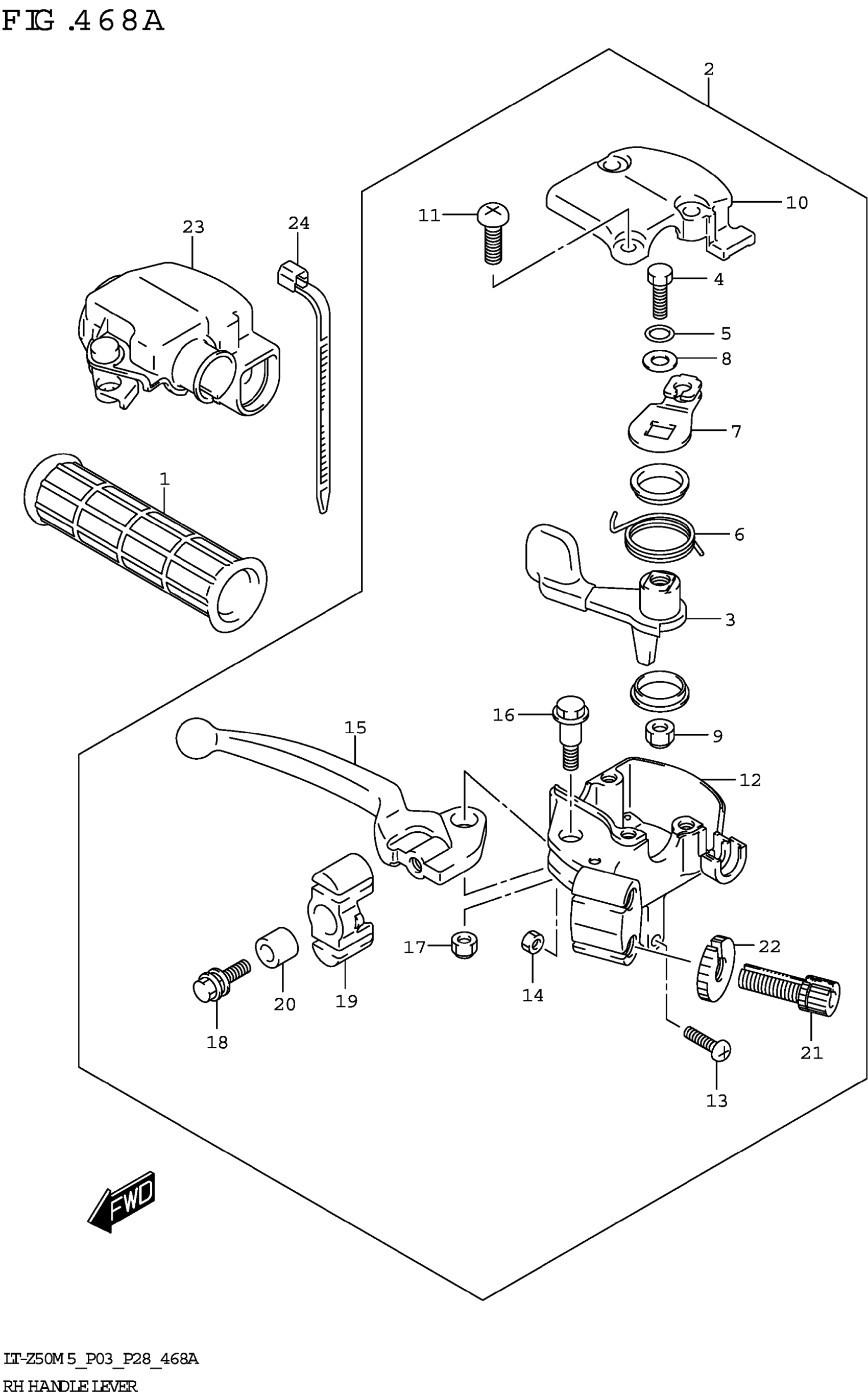

Suzuki LT-Z50M5 (2025) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-04600

$4.93

2

LEVER ASSY,FRONT BRAKE

57300-43F00

$129.15

3

.LEVER,THROTTLE

57112-43F00

$21.83

4

BOLT

01550-0620B

$2.39

5

.BUSH

57136-43F00

Unavailable

6

.SPRING,RETURN

57134-43F00

$5.40

7

.ARM,THROTTLE LEVER

57114-43F00

Unavailable

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

NUT

08319-2106B

$2.32

10

.CASE,UPPER

57121-43F00

$30.47

11

.SCREW

02112-0516B

$1.93

12

.CASE,LOWER

57131-43F00

$40.67

13

.SCREW

02112-0520B

$1.84

14

NUT

08310-0005A

$1.84

15

.LEVER,FR BRAKE

57421-43F00

$11.07

16

.BOLT,LEVER

57431-43F00

$5.33

17

.NUT

08319-2106A

$1.91

18

BOLT

01550-0616B

$2.48

19

.EQUALIZER,BRAKE CABLE

57396-43F00

$16.38

20

.SPACER

57397-43F00

$7.80

21

.ADJUSTER,CABLE

57441-43F00

$15.25

22

.NUT,LOCK

57442-43F00

$15.25

23

COVER,THROTTLE CASE

57339-43G00

$12.90

24

CLAMP (L:145)

09407-14407

$3.57
