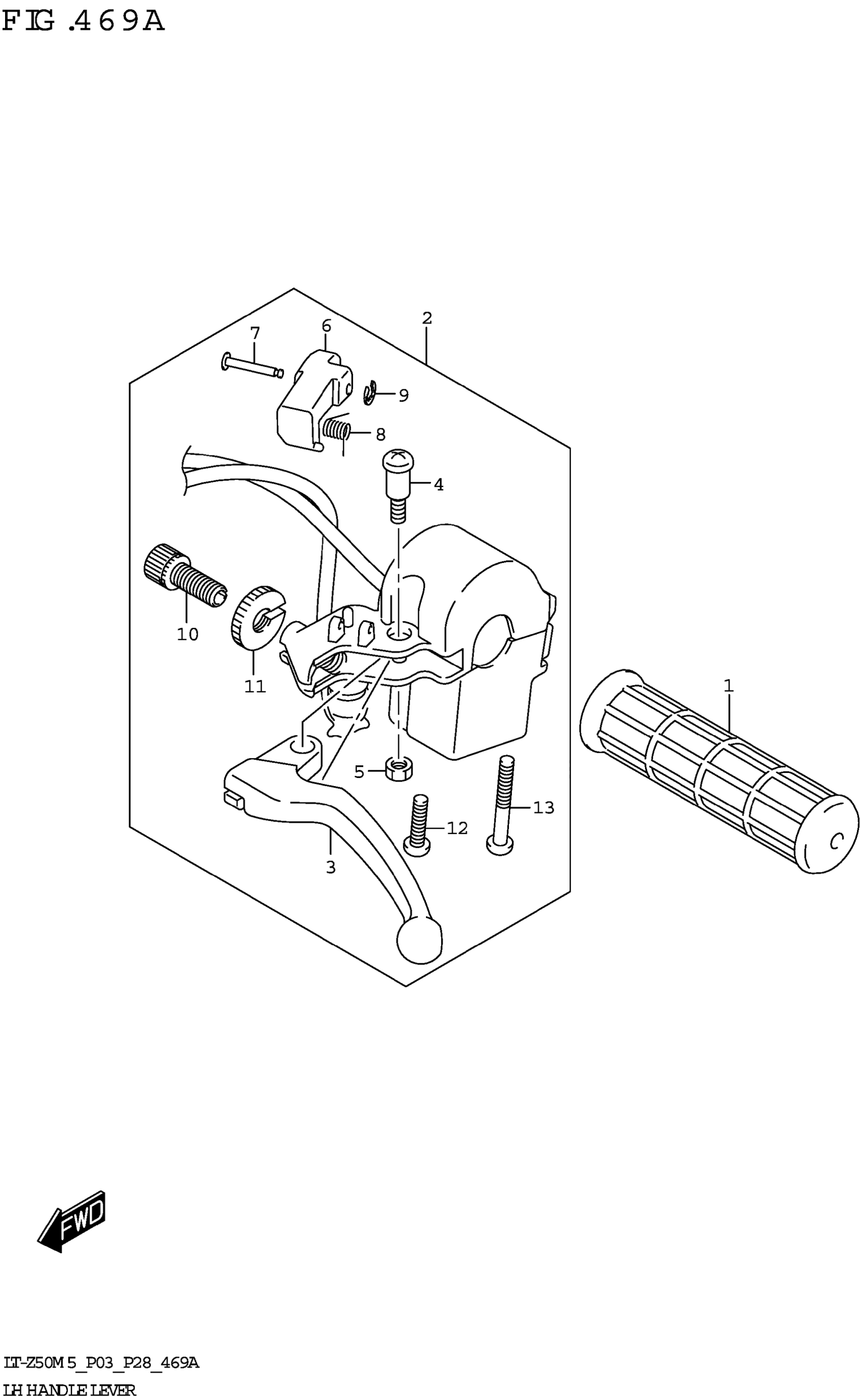

Suzuki LT-Z50M5 (2025) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-04600

$4.51

2

LEVER ASSY,RR BRAKE & SWITCH

57500-43G10

$156.10

3

.LEVER,BRAKE

57421-43G00

$13.10

4

.SCREW,PIVOT

57431-43G00

$8.62

5

.NUT

08319-2105B

$3.37

6

.LOCK PLATE

57791-43G00

$11.20

7

.PIN

57781-43G00

$6.77

8

.SPRING

57134-43G00

$5.27

9

.E RING

57432-43G00

$5.00

10

.ADJUSTER,CABLE

57441-43G00

$17.30

11

.NUT, LOCK

57442-45C01

$7.92

12

.SCREW

02112-0520B

$1.86

13

.SCREW

02112-0535B

$1.95
