2022 Suzuki LT-Z50M2 Frame Cover Diagram

← All diagrams

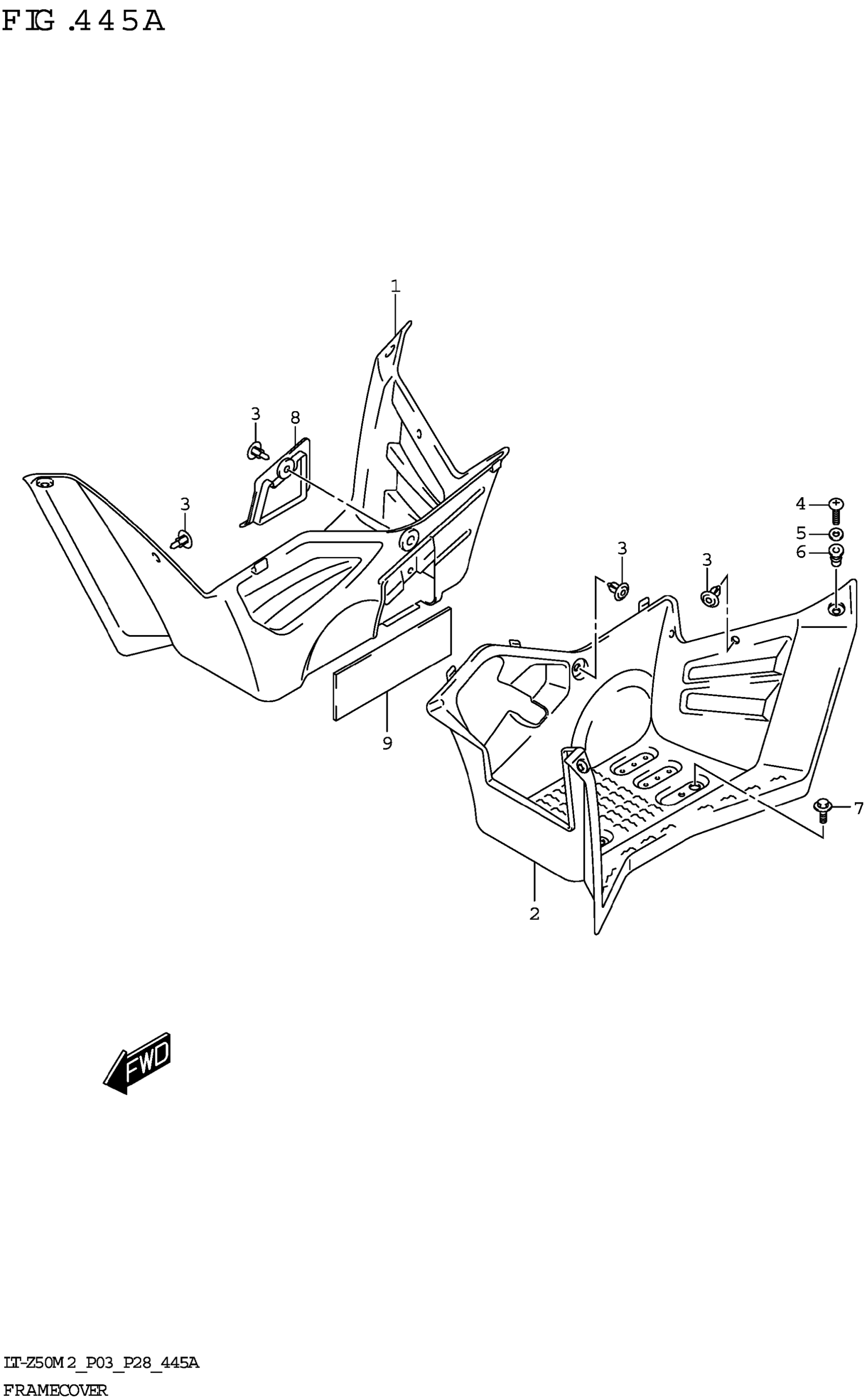

Find the part on the Frame Cover diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-Z50M2 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,R (BLACK)

47111-43G00-291

1
Out of stock

2

COVER,FRAME,L (BLACK)

47211-43G00-291

1
Out of stock

3

CLIP (D:2.4,ID:23.7)

09409-07333

12
Out of stock

4

SCREW

02142-0520B

4
Out of stock

5

WASHER

08322-0105B

4
Out of stock

6

NUT (M5)

09159-05019

4
Out of stock

7

BOLT (6X18)

09111-06081

4
Out of stock

8

LID,FRAME COVER,R

47121-43G00

1
Out of stock

9

SHIELD,FRAME COVER

63262-43G00

1
Out of stock
