2022 Suzuki LT-Z50M2 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2022 Suzuki LT-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

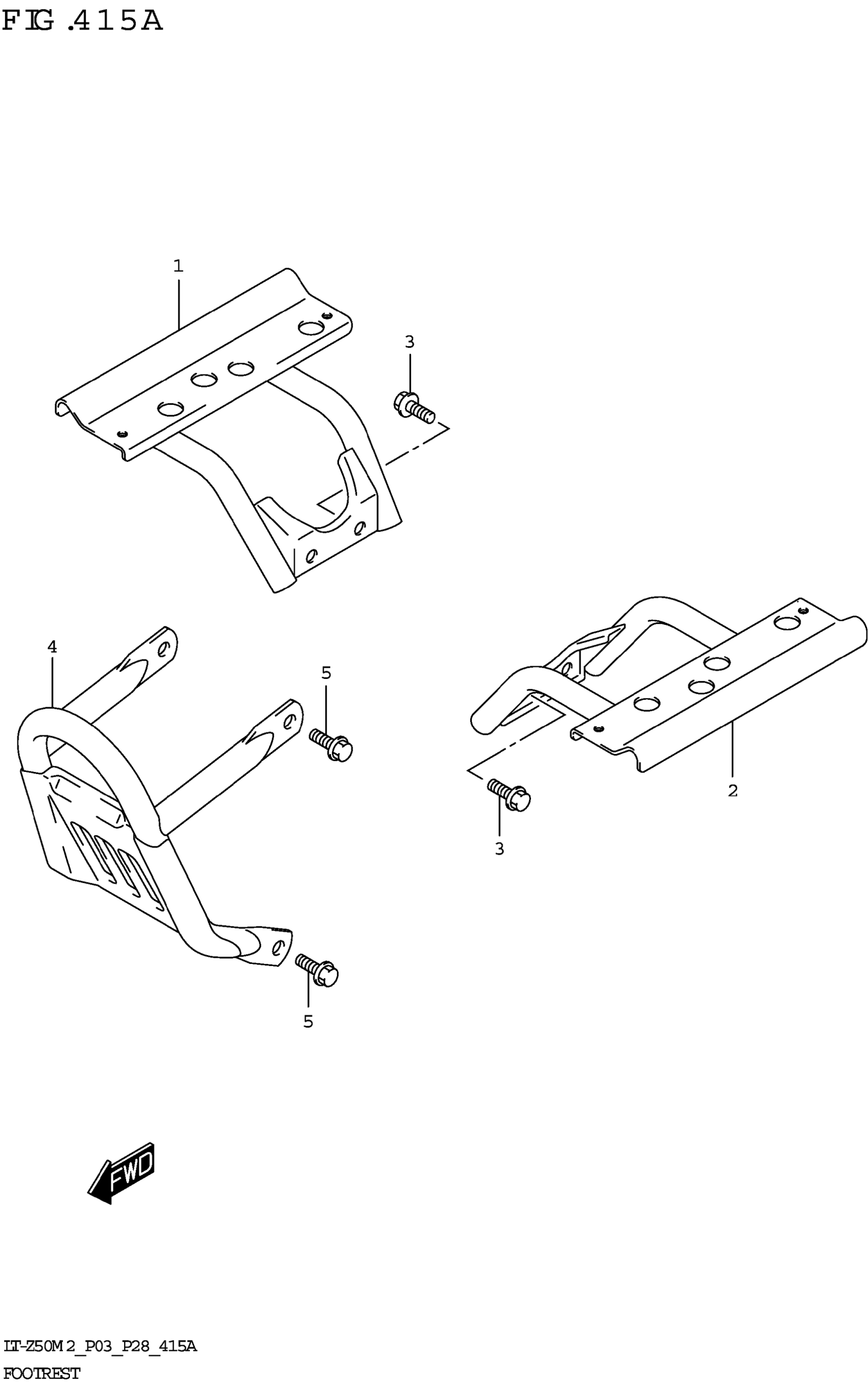

2022 Suzuki LT-Z50M2 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST,R

43510-43G00

1
Out of stock

2

FOOTREST,L

43520-43G00

1
Out of stock

3

BOLT

01550-0816B

4
Out of stock

4

GRIP,FRONT (SILVER)

43990-43G00-13L

1
Out of stock

5

BOLT

01550-0812B

4
Out of stock
