Description

Price

1

COVER,CYLINDER HEAD

11171-22G00

$12.40

2

.GASKET,CYL HEAD COVER

11173-22G00

$4.72

3

BOLT (6X12)

09103-06172

$1.68

4

HEAD,CYLINDER

11110-22G00

$182.33

5

.GASKET,CYLINDER HEAD

11141-22G10

$7.05

6

BOLT,6X50 (6X50)

09103-06101

$2.16

7

PIN

04211-09109

$1.65

8-1

SPARK PLUG,CR6HSA (CR6HSA)

09482-00406

$3.29

8-2

SPARK PLUG,U20FSR-U (U20FSR-U

09482-00407

Unavailable

9

PIPE,INTAKE

13111-43G00

$55.63

10

INSULATOR,INTAKE PIPE

13117-43G00

$7.15

11

O-RING (D:1.9,ID:14.5) | :14.5)

09280-15006

$2.90

12

O-RING (D:1.9,ID:21.8) | :21.8)

09280-21010

$2.27

13

BOLT

01550-0620B

$2.39

14

BOLT

07120-0620B

$3.04

15

SEAL,OIL (4X11.6X7.9)

09289-04006

$8.12

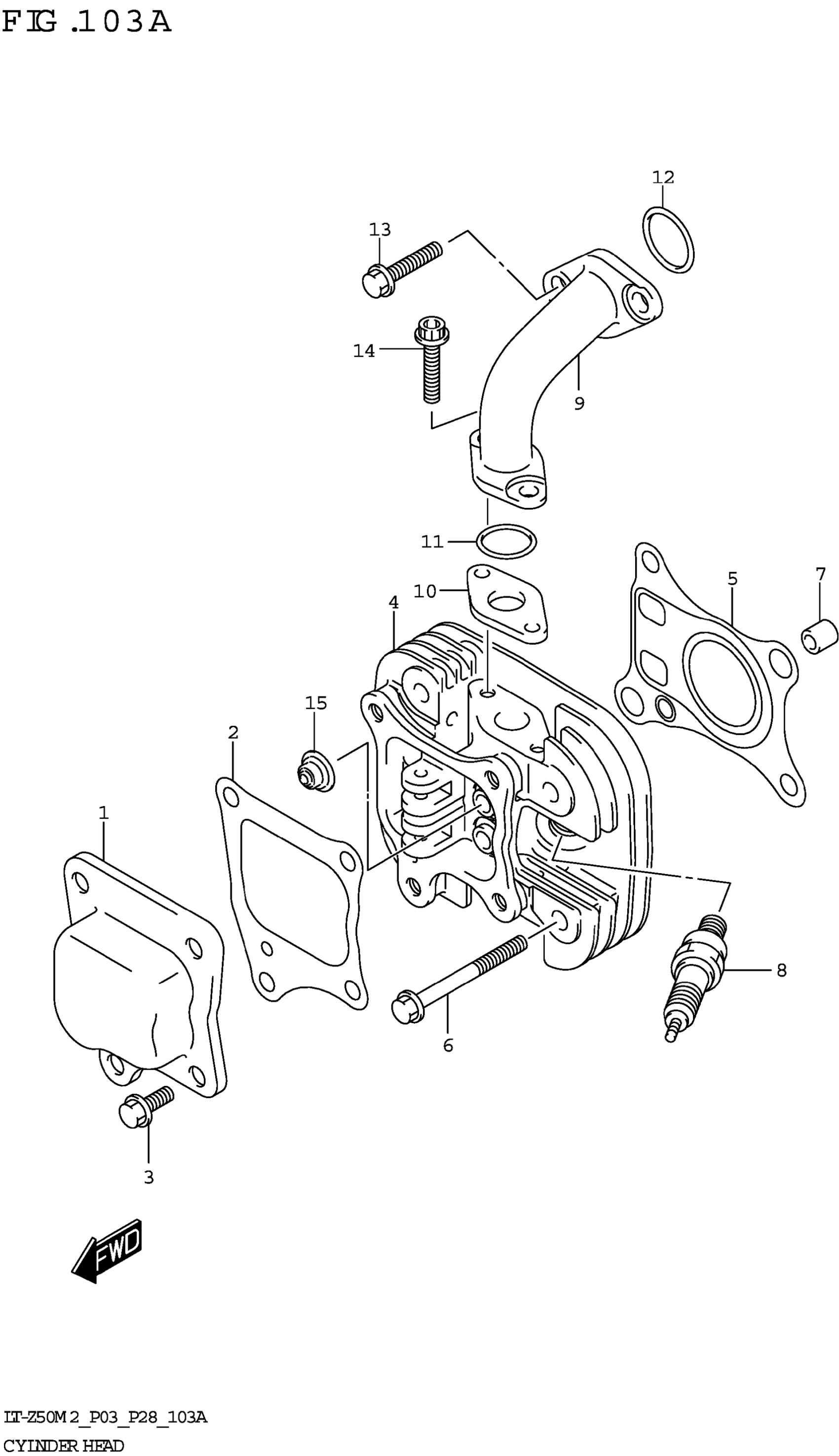

Suzuki LT-Z50M2 (2022) CYLINDER HEAD Diagram

COVER,CYLINDER HEAD

.GASKET,CYL HEAD COVER

BOLT (6X12)

HEAD,CYLINDER

.GASKET,CYLINDER HEAD

BOLT,6X50 (6X50)

PIN

SPARK PLUG,CR6HSA (CR6HSA)

SPARK PLUG,U20FSR-U (U20FSR-U

PIPE,INTAKE

INSULATOR,INTAKE PIPE

O-RING (D:1.9,ID:14.5) | :14.5)

O-RING (D:1.9,ID:21.8) | :21.8)

BOLT

BOLT

SEAL,OIL (4X11.6X7.9)
