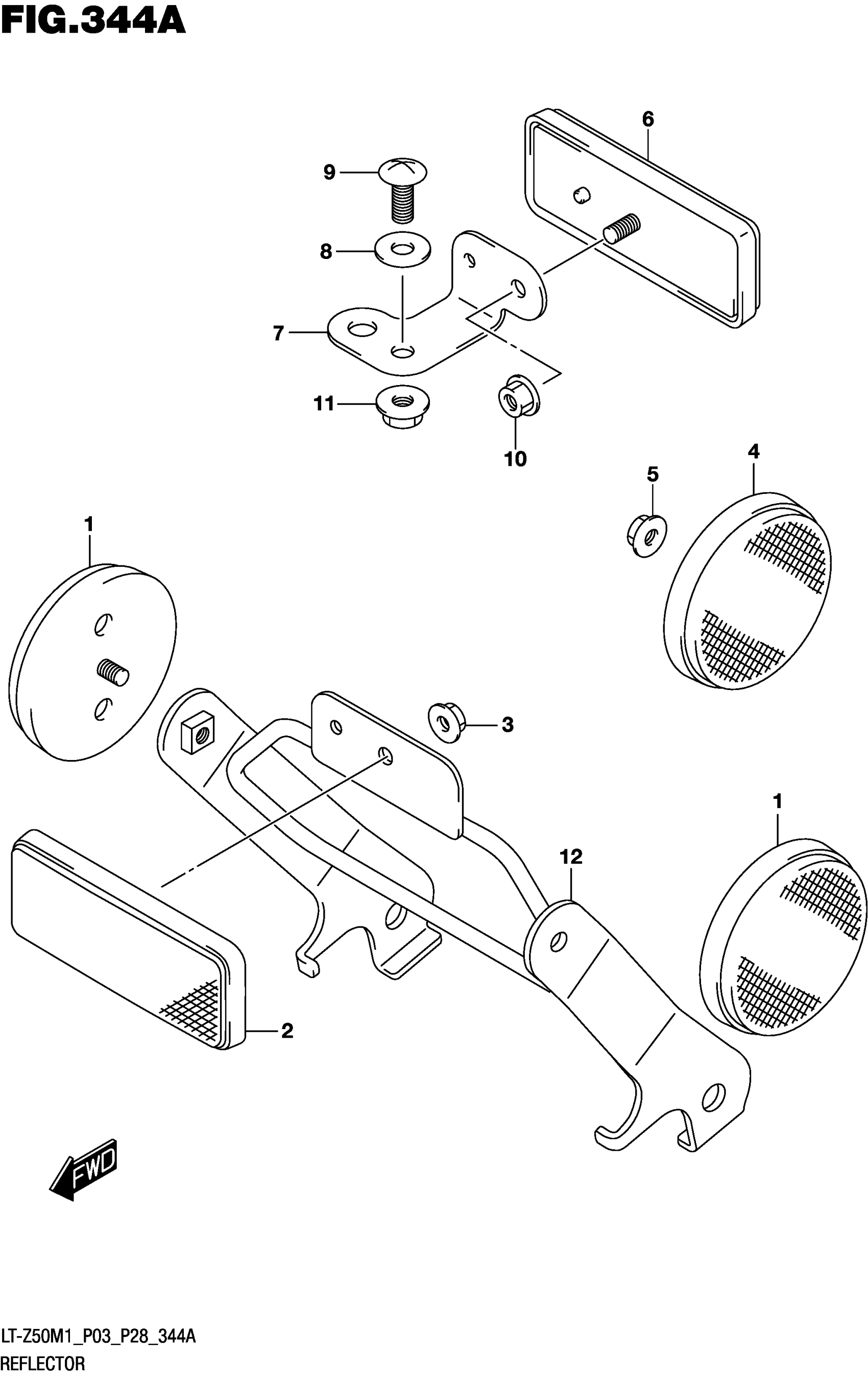

Suzuki LT-Z50M1 (2021) REFLECTOR (LT-Z50M1 P03) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

2

REFLEX REFLECTOR ASSY,FRONT

35960-43G00

$14.50

3

NUT

08316-1005B

$2.50

4

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

5

NUT

08316-1005B

$2.50

6

REFLECTOR ASSY,RR

35970-07F01

$20.88

7

BRACKET,REAR RR

35974-43G00

$7.57

8

WASHER (6.5X16X1.2) | 6.5X16X1.2

09160-06153

$1.65

9

SCREW

02142-0616B

$1.78

10

NUT

08316-1005B

$2.50

11

NUT

08316-1006B

$2.50

12

BRACKET,FRONT & SIDE RR

47450-43G00

Unavailable
