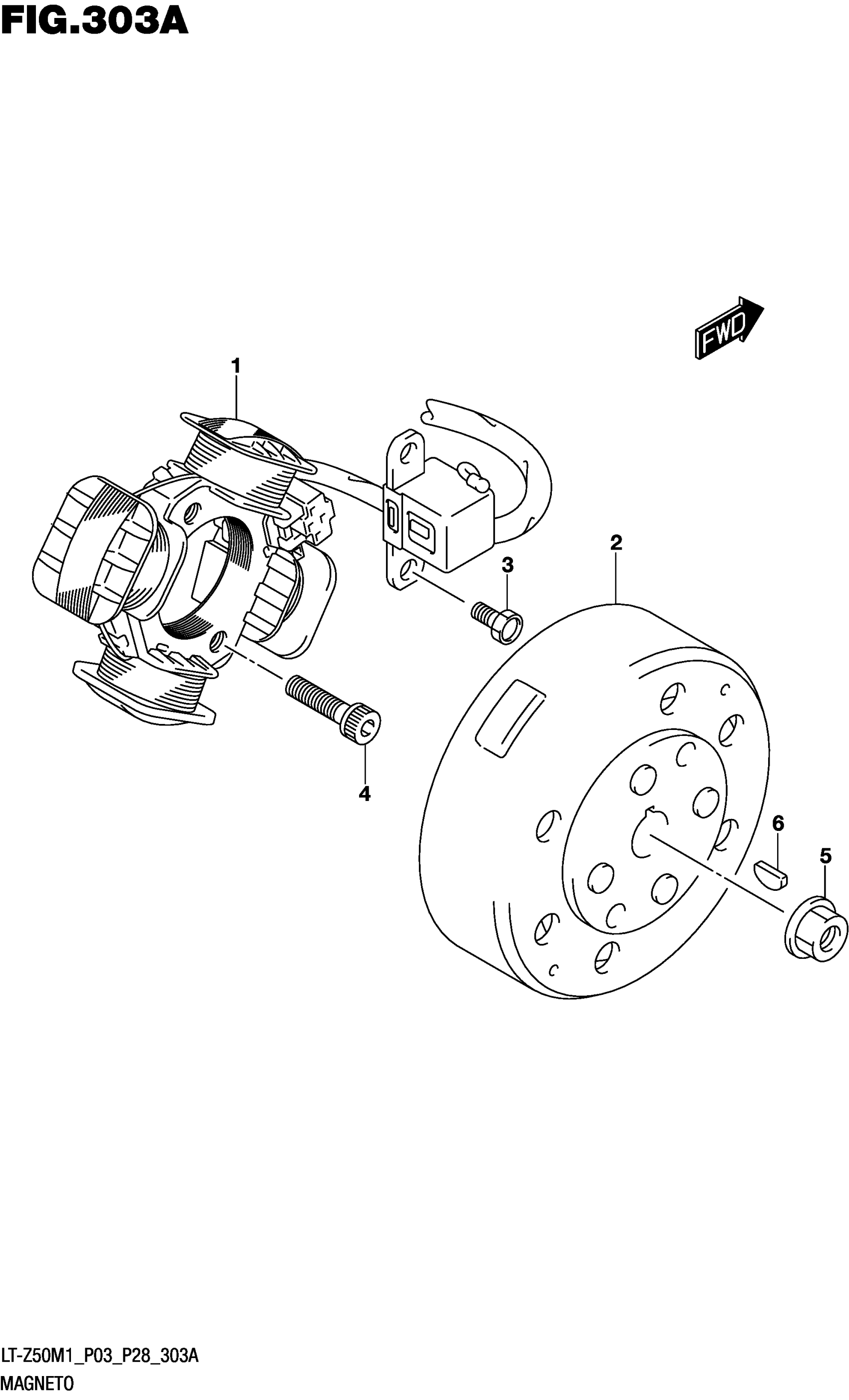

Suzuki LT-Z50M1 (2021) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-43G00

$304.95

2

ROTOR ASSY

32102-43G00

$237.42

3

BOLT (5X10)

09100-05019

$1.93

4

BOLT

07130-0625B

$3.04

5

NUT

08316-1010B

$2.66

6

KEY

08341-31039

$1.89
