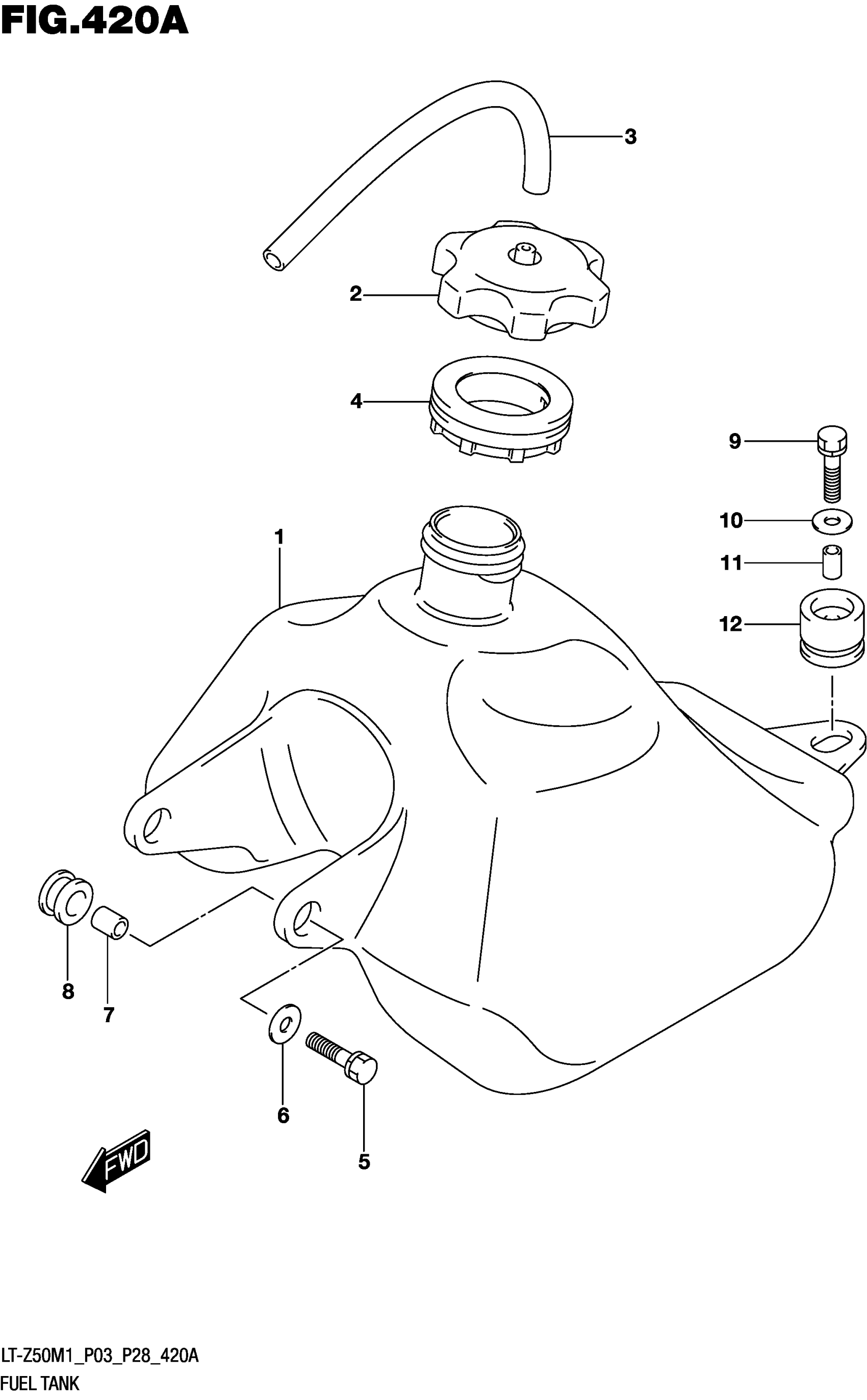

Suzuki LT-Z50M1 (2021) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-43GA0

$979.40

2

CAP ASSY,FUEL TANK FILLER

44200-09AA0

$71.92

3

HOSE,FUEL TANK BREATHER | L:600->260

44411-08H00

$12.30

4

RUBBER,FUEL TANK INLET

44261-43GA0

$9.75

5

BOLT (6X25)

01550-0625A

$2.01

6

WASHER This part replaces 09160-06132.

09160-06084

$1.82

7

SPACER (6.5X10X11.5)

09180-06289

$2.67

8

CUSHION This part replaces 09320-10008.

09320-10075

$2.01

9

BOLT (6X25)

01550-0625A

$2.01

10

WASHER This part replaces 09160-06132.

09160-06084

$1.82

11

SPACER (6.5X9X12.5)

09180-06267

$4.45

12

CUSHION,FUEL TANK REAR

44541-43F00

$8.62
