Description

Price

1

FACE,FIXED DRIVE (NT:63)

21111-43E00

$58.13

2

FACE,MOVABLE DRIVE

21120-43EA0

$89.43

3

SPACER,MOVABLE DRIVE

21125-43G00

$27.80

4

SPACER,MOVABLE DRIVE STOPPER

21128-43G00

$5.38

5

FACE,FIXED DRIVEN

21210-43E00

$109.88

6

FACE,MOVABLE DRIVEN

21240-22G00

$95.98

7

SPRING,MOVABLE DRIVEN

21243-22G00

$35.53

8

BEARING, FIXED DRIVEN, R | 17X25X16.7

09263-17042

$29.70

9

PLATE,MOVABLE DRIVE

21431-43E00

$12.73

10

SHEET,MOVABLE DRIVEN

21471-03A11

$6.63

11

DAMPER,MOVABLE DRIVE

21481-29C40

$4.64

12

ROLLER,MOVABLE DRIVE

21650-43G00

$11.97

13

NUT (M12)

09140-12039

$3.05

14

WASHER (12.2X22X1.2)

09164-12020

$2.35

15

SPACER,5X8.2X3.5 (5X8X3.5) | 5X8.2X3.5

09180-05042

$5.88

16

SHIM (14X20X1) | 14X20X1

09181-14139

$2.60

17

PIN

09201-05006

$3.40

18

BEARING,12X24X6 (12X24X6) | 12X24X6

09262-12018

$25.33

19

CIRCLIP

08331-41249

$2.26

20

HOUSING,CLUTCH

21220-22G00

$102.55

21

CLUTCH ASSY,SHOE

21501-22G10

$280.65

22

NUT

09140-28004

$9.50

23

NUT

08316-1010B

$2.66

24

V-BELT,DRIVE

27601-22G00

$19.98

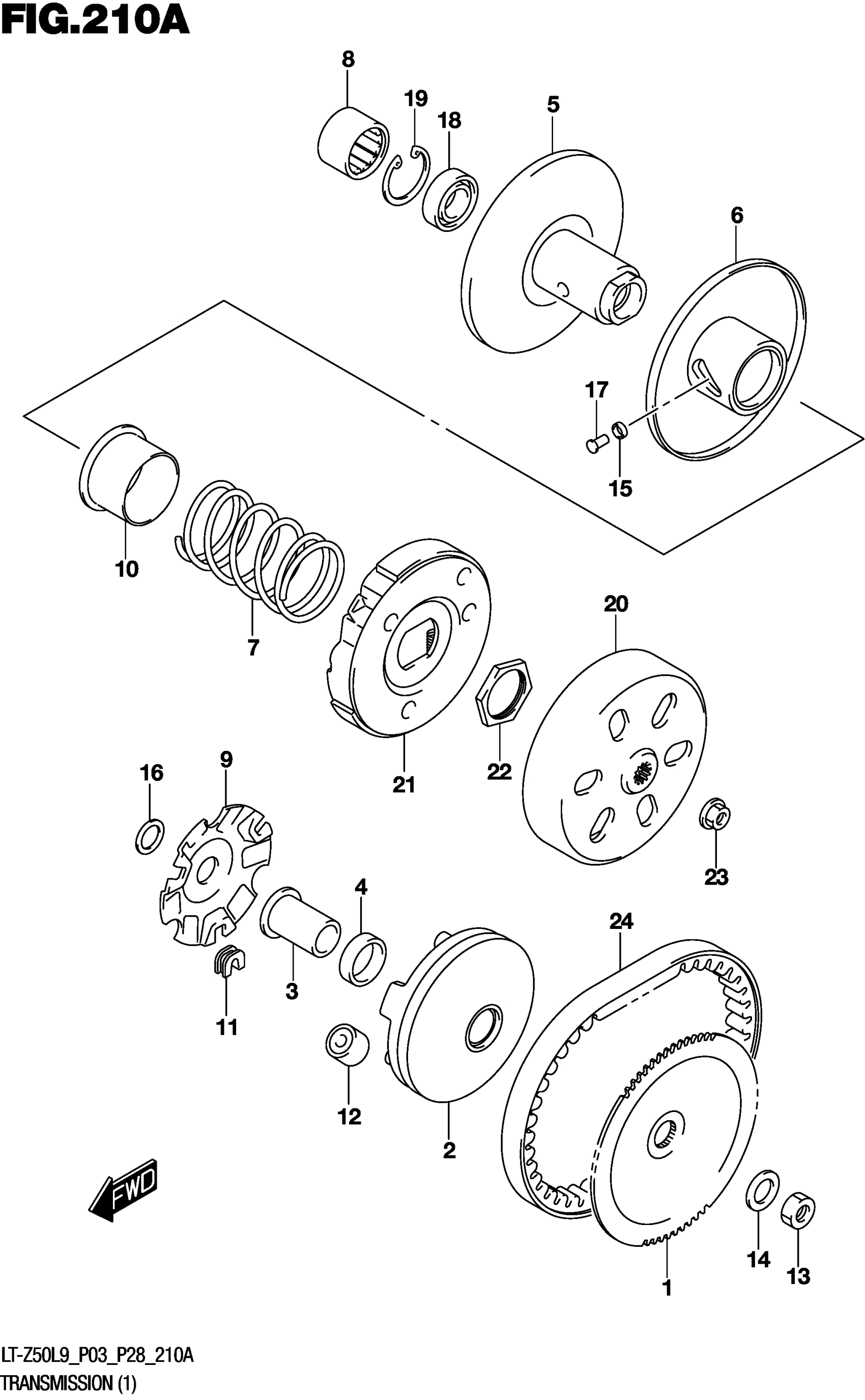

Suzuki LT-Z50L9 (2019) TRANSMISSION (1) Diagram
