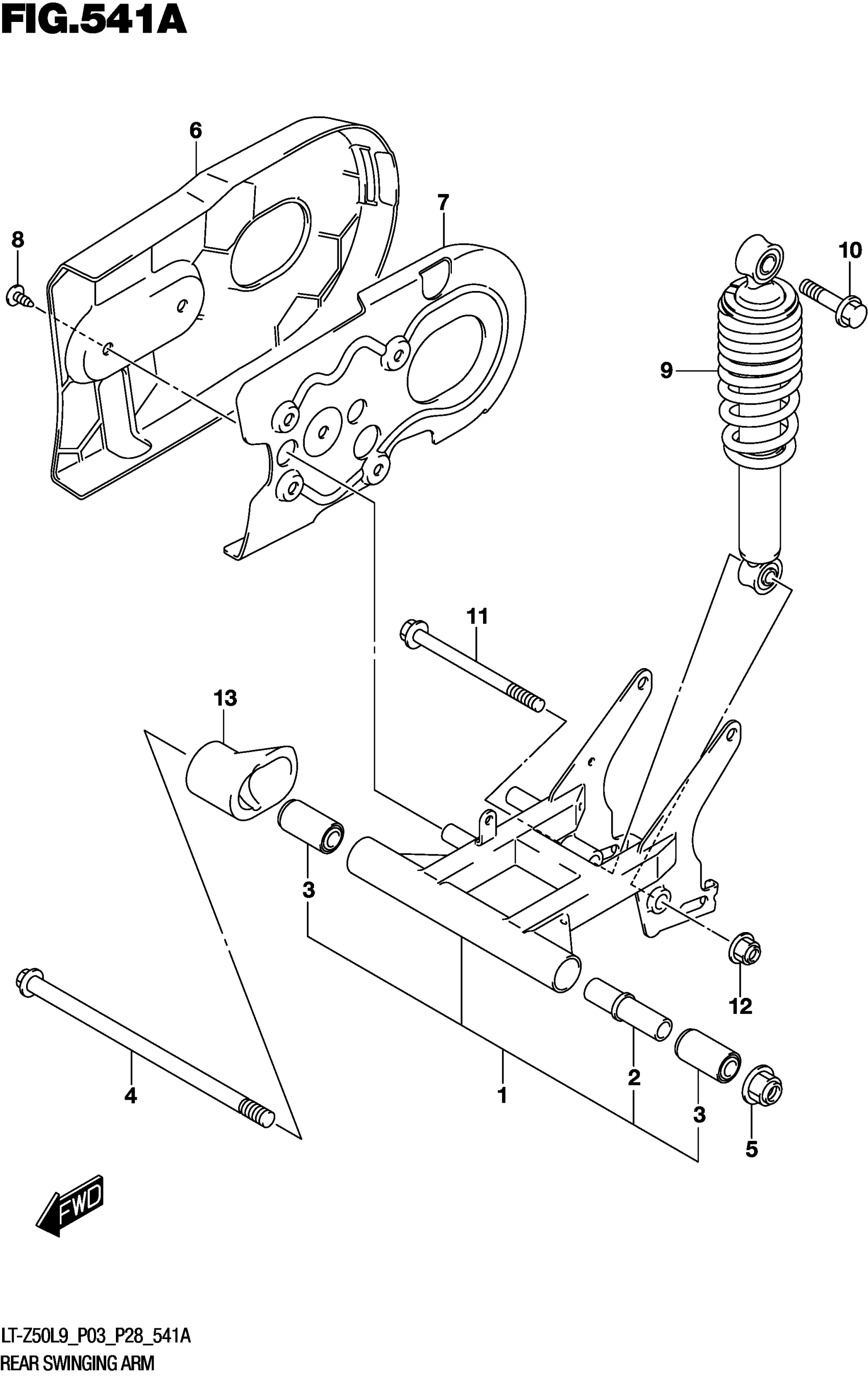

Suzuki LT-Z50L9 (2019) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-43G00-019

Unavailable

2

.SPACER,RR SWGARM PIVOT

61280-43G00

$15.75

3

.BUSH (12X24X44)

09319-12018

$14.73

4

SHAFT,RR SWIGARM PIVOT

61211-43G00

Unavailable

5

NUT

08319-3112A

$3.76

6

CASE,CHAIN

61311-43G00

$28.48

7

CASE,CHAIN INNER

61313-43G00

Unavailable

8

SCREW (6X16)

09139-06083

$2.26

9

ABSORBER ASSY, RR SHOCK (RED)

62100-43FK0-YKS

Unavailable

10

BOLT (10X37)

09103-10019

$2.63

11

BOLT,10X125 (L:125)

09103-10141

$8.43

12

NUT

08319-3110B

$3.87

13

BUFFER,CHAIN TOUCH DEFENSE

61273-43F01

Unavailable
