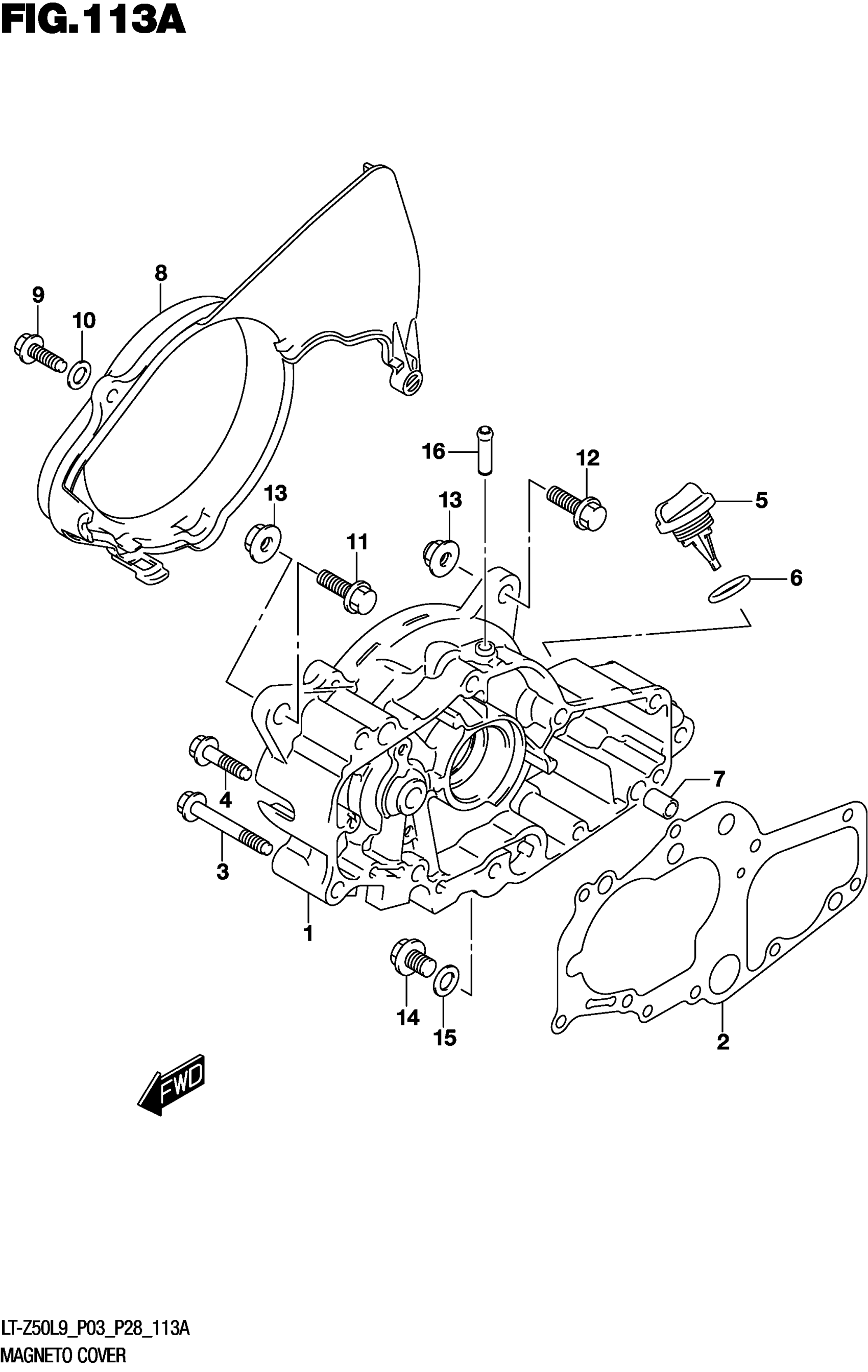

Suzuki LT-Z50L9 (2019) MAGNETO COVER Diagram

#

Description
Price

1

CASE,MAGNETO

11351-43G00

$105.90

2

.GASKET,MAGNETO CASE

11483-22G00

$8.97

3

BOLT,MAGNETO CASE

11358-22G00

Unavailable

4

BOLT,6X28 (6X28)

09103-06182

$2.80

5

GAUGE,OIL LEVEL

11971-43G00

$5.58

6

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

7

PIN (8.5X18X2.3)

04211-09149

$1.65

8

COVER,MAGNETO

11352-43G00

$21.58

9

BOLT,6X20 (6X20)

09103-06170

$3.03

10

WASHER

08322-0106B

$2.26

11

BOLT

01550-0825B

$2.92

12

BOLT

01550-0840B

$4.10

13

NUT

08319-3108B

$2.73

14

BOLT

01550-0812B

$2.73

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

UNION

09364-06002

Unavailable
