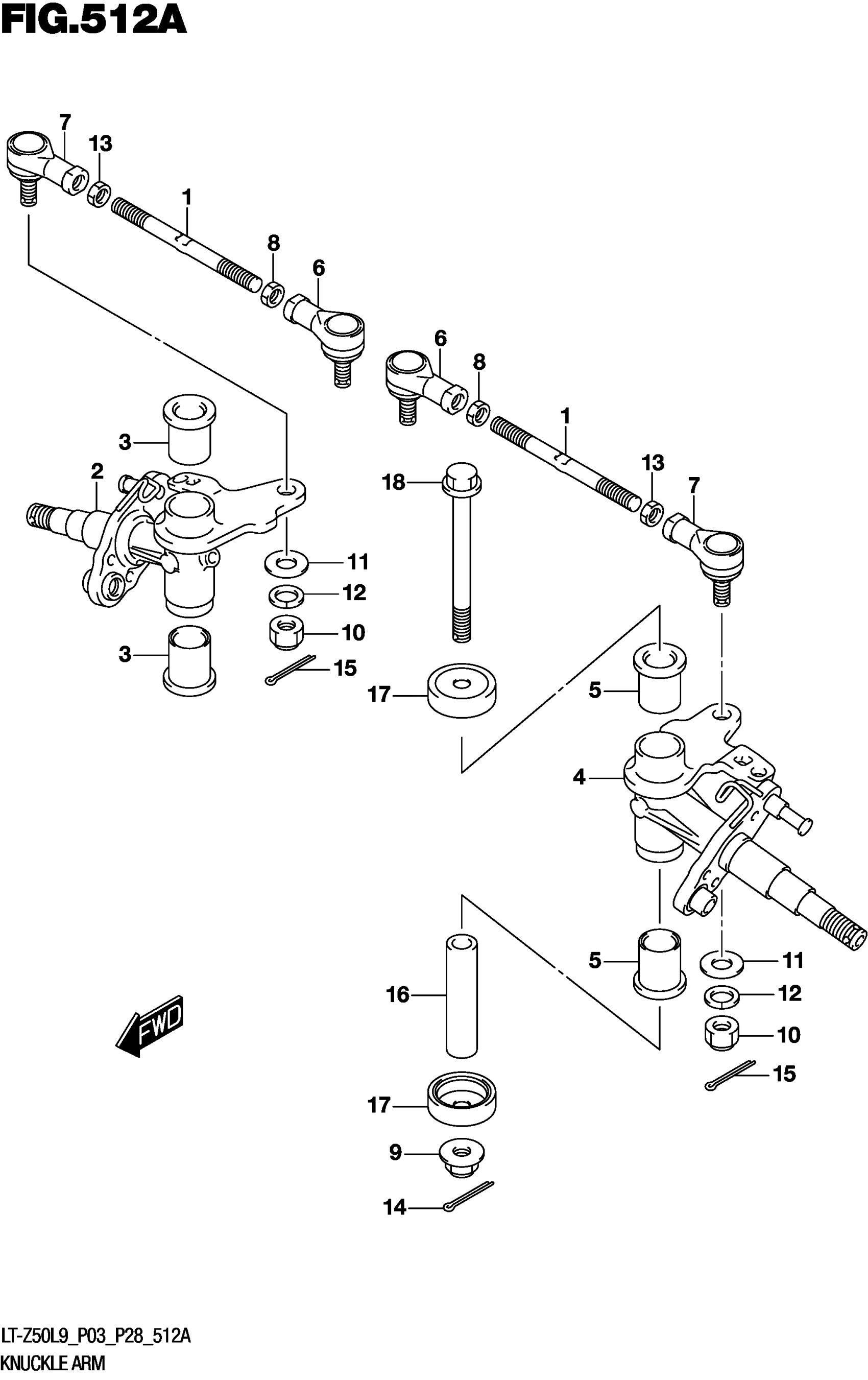

Suzuki LT-Z50L9 (2019) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-43F00

$28.27

2

ARM,KNUCKLE,R

51230-43F00

Unavailable

3

.BUSH,KINGPIN

51236-40B00

$19.07

4

ARM,KNUCKLE,L

51240-43F00

Unavailable

5

.BUSH,KINGPIN

51236-40B00

$19.07

6

END,ROD,R

51260-43G00

$94.35

7

END,ROD,L

51270-43G00

$96.13

8

NUT (10X6)

09140-10043

$2.68

9

NUT

08319-3110A

$2.73

10

NUT

08319-2110B

Unavailable

11

WASHER (10.5X24X1.6)

09160-10126

$2.12

12

WASHER,LOCK

09162-10010

$3.72

13

NUT (LH THREAD)

09140-10027

$1.49

14

PIN

04111-2020A

$1.49

15

PIN

04111-2020A

$1.49

16

SPACER,KING PIN

51251-40B00

$22.22

17

DUST SEAL,KNUCKLE ARM (28.6X3

51255-18900

$4.48

18

BOLT,KNUCKLE ARM

51256-43G00

$12.53
